Pulse Electronics PE-52626NL

mpnPE-52626NL
brandname: PULSE ELECTRONICS
manufacturername: PULSE ELECTRONICS

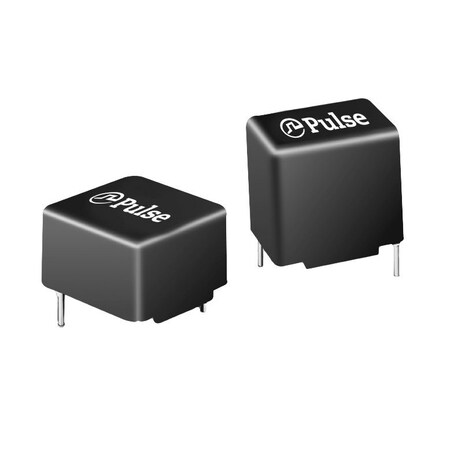

Pulse Electronics Inductor, 220Uh, 1.5A, 20%, SMD - PE52626NL

Pulse Electronics Inductor, 220Uh, 1.5A, 20%, SMD - PE52626NL

zoom

Brand: Pulse Electronics
PartNumber: PE-52626NL
Model: PE-52626NL
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Pulse Electronics
Label: Pulse Electronics

Attributes

Key	Value
Alternate Part No.	673-PE-52626NL
Brand	Pulse
Case Height	11.68 mm
Case Length	18.03 mm
Case Width	18.03 mm
Category	Inductors, Coils, Chokes
Current - Saturation (I.	-
Current Rating (Amps)	1.5 A
DC Resistance (DCR)	420mOhm Max
Features	-
Frequency - Self Resona.	-
Height - Seated (Max)	0.460" (11.68mm)
Inductance	220 uH, 220 ?H
Inductance Frequency - .	20 kHz
Lead Spacing	15.24 mm
Manufacturer	Pulse
Manufacturer Part No.	PE-52626NL
Material - Core	-
Maximum DC Current	1.4 A
Maximum DC Resistance	380 mOhms
Mfr	Pulse Electronics
Mounting Type	Through Hole
Operating Temperature	-40?C ~ 130?C
Operating Temperature R.	- 40 C to + 130 C
Package	Tube
Package / Case	Radial, Horizontal - Co.
Packaging	Bulk
Product	Inductors
Product Category	Fixed Inductors
Product Status	Active
Q @ Freq	-
Ratings	-
Series	PE-531, -
Shielding	Shielded, Unshielded
Size / Dimension	0.710" L x 0.710" W (18.
Supplier Device Package	-
Termination Style	Radial
Test Frequency	50 kHz
Tolerance	?20%, 20 %
Type	Inductors Designed for .

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2134101	3.09	1	32		Pulse Electronics Corporation		3.09 @ 1
	Newark	97K7092	3.92	1	23		PULSE ELECTRONICS		3.92 @ 1
	Digi-Key	2266031	4.776	1	5148		Pulse Electronics		4.776 @ 1
	swatee.com	PE-52626NL	5.77	1	63		Pulse		5.77 @ 1
	Zoro	G505808023	1586.0	1	In Stock		Pulse Electronics		1586.0 @ 1
