Ruland CLC-10-10-F

B0060LVRHI

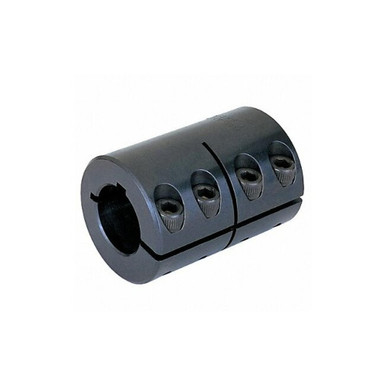

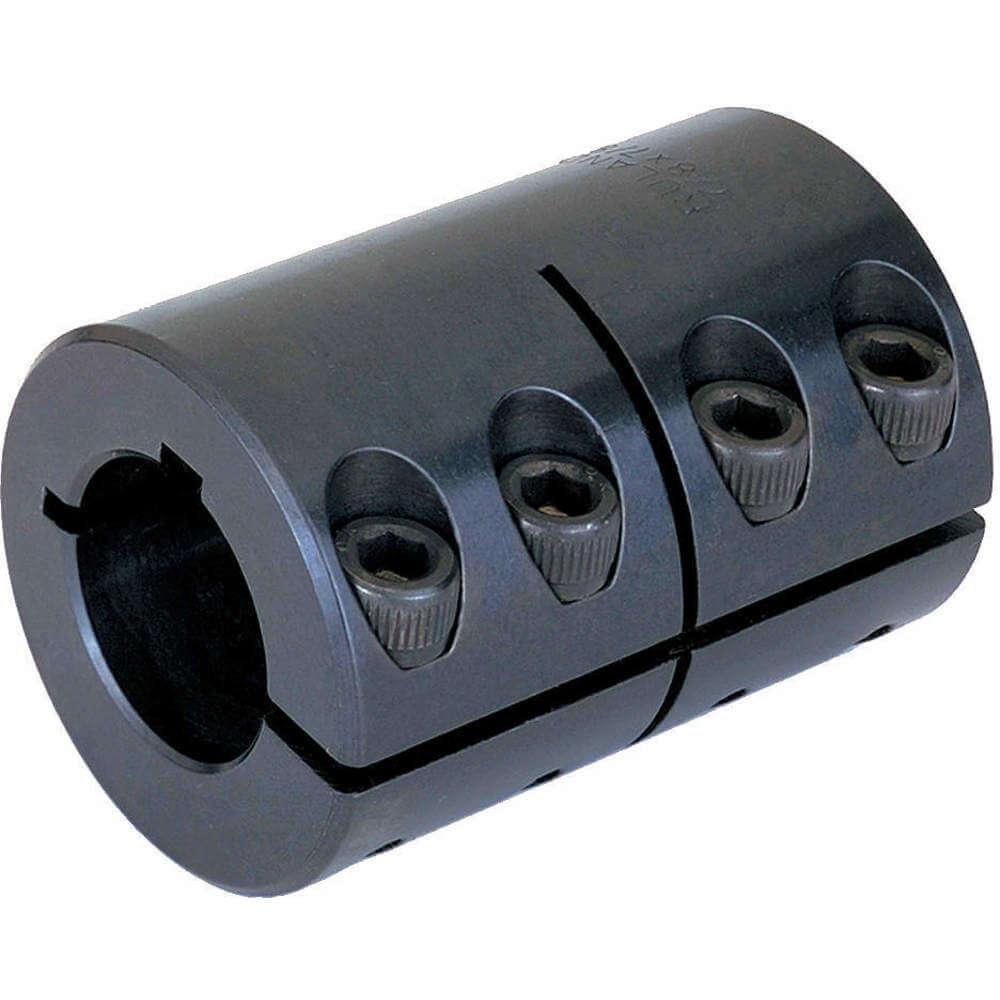

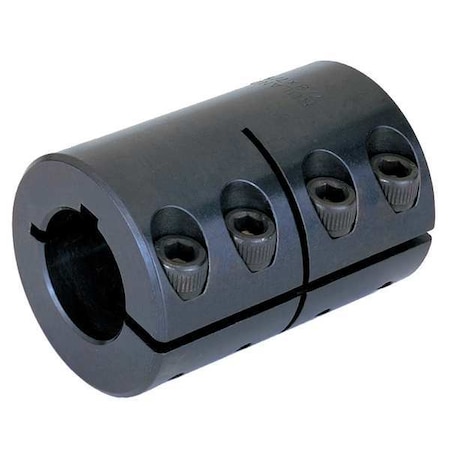

Ruland CLC-10-10-F One-Piece Clamping Rigid Coupling with Keyway, Black Oxide Steel, 5/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/16" OD, 2" Length, 3/16" x 3/16" Keyway Width

Ruland CLC-10-10-F One-Piece Clamping Rigid Coupling with Keyway, Black Oxide Steel, 5/8" Bore A Diameter, 5/8" Bore B Diameter, 1-5/16" OD, 2" Length, 3/16" x 3/16" Keyway Widthzoom

Attributes

Key Value
ApplicationFor Applications where .
B1 Max Shaft Penetration1.000 in
B2 Max Shaft Penetration1.000 in
Bore (B1)0.6250 in
Bore Dia.5/8 in, 5/8"
Bore Tolerance+0.0020 in / +0.0005 in
BrandRULAND
CategoryHardware, Fasteners, Ac.
Clearance Dia.1.514 in, 1.514"
Clearance Dia. (In.)1.514
Clearance Diameter (C) .1.514 in
ColorBlack Oxide
Country of OriginUSA
Country of Origin (subj.United States
Current Stock9
Description5/8"X5/8" STEEL RIGID C.
DesignFour Vibration Resistan.
Digi-Key Part Number3188-CLC-10-10-F-ND
FinishBlack Oxide
Finish SpecificationHot Process Black Oxide.
Forged Clamp Screw#10-32
Hex Wrench Size5/32 in
International ShippingNo
ItemRigid Shaft Coupling
Item - Rigid Shaft Coup.Rigid Shaft Coupling
Keyway (K1)3/16 in
Keyway (K2)3/16 in
Keyway Width3/16", 3/16 in
Keyway Width (In.)3/16
Lead TimeExpected to ship in 1-2.
Length (L)2 in
Machined FromBar Stock
ManufacturerRuland Manufacturing
Manufacturer Product Nu.CLC-10-10-F
MaterialBlack Oxide 1215 Lead F.
Material - Couplings1215 Lead Free Steel
Material Specification1215 Carbon Steel Bar
Max. Torque1,600 in-lb, 1600 in.-l.
Max. Torque (In.-Lbs.)1600
Maximum Speed4,000 RPM
MfrRuland Manufacturing
Moment of Inertia0.1439 lb-in
MpnCLC-10-10-F
Note 1Performance ratings are.
Number of Screws4 ea
Nypatch? Anti-Vibration.Yes
Outer Diameter (OD)1 5/16 in
Outside Dia.1 5/16 in, 1-5/16"
Overall Length2 in, 2"
PackageBag
Precision Honed Bores?Yes
Product StatusActive
ProvidesExtra Holding Power for.
Rated Torque1,600 lb-in
Recommended Shaft Toler.+0.0000 in / -0.0005 in
Screw FinishBlack Oxide
Screw Location (R)0.484 in
Screw MaterialAlloy Steel with
Screw Size#10-32
Screw Size (In.)#10-32
Seating Torque76 lb-in
Series-
Shaft Locking Type - Co.1 Piece Clamp
SKUZO-G0945034
Small Bore (B2)0.6250 in
Specifications1.313" (33.35mm) Outer .
StandardsREACH Compliant, RoHS2 .
SubCategoryPower Transmission
System of MeasurementInch
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
TypeOne Piece Clamp Type, w.
UPC634529001646
UPC Code63452900164
Weight (lbs)0.540000
With Keyway / Without K.With Keyway
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0060LVRHI44.991In Stock5Ruland Manufacturing44.99 @ 1
us.rs-online.com7219845855.041In StockRuland Manufacturing55.04 @ 1
thumbzoomsimsupply.comZO-G094503458.1519RULAND58.15 @ 1
thumbzoomRulandCLC-10-10-F59.791In StockRuland0.5459.79 @ 1
thumbzoomZoroG094503474.261In StockRuland0.5474.26 @ 1
thumbzoomsustainablesupply.comC167154976.331In StockRuland Manufacturing0.5476.33 @ 1
grainger.caWWG2ALG582.095916661In StockRULAND MANUFACTURING0.5482.09591666 @ 1
motionindustries.com0702679684.111In StockRuland Manufacturing Co Inc84.11 @ 1
thumbzoomDigi-Key1360122097.4616Ruland Manufacturing97.46 @ 1
thumbzoomRaptor SuppliesAB8ZDG113.2545961In StockRULAND MANUFACTURING113.254596 @ 1
