SSW-109-02-G-S-RA

mpnSSW-109-02-G-S-RA
brandname: Samtec Inc.
manufacturername: Samtec Inc.

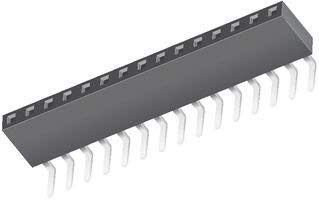

SAMTEC SSW-109-02-G-S-RA BOARD-BOARD CONNECTOR SOCKET, 9WAY, 1ROW (10 pieces)

SAMTEC SSW-109-02-G-S-RA BOARD-BOARD CONNECTOR SOCKET, 9WAY, 1ROW (10 pieces)

zoom

PartNumber: SSW-109-02-G-S-RA
PackageQuantity: 10
Manufacturer: SAMTEC
Label: SAMTEC

Attributes

Key	Value
Applications	-
Base Product Number	SSW-109
Category	Connectors, Interconnec.
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thicknes.	20.0?in (0.51?m)
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Length - Post	0.100" (2.54mm)
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.7A per Contact
Description	CONN RCPT 9POS 0.1 GOLD.
Detailed Description	9 Position Receptacle C.
Digi-Key Part Number	SAM1225-09-ND
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.095" (2.41mm)
Insulation Material	Liquid Crystal Polymer .
Manufacturer	Samtec Inc.
Manufacturer Product Nu.	SSW-109-02-G-S-RA
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	Samtec Inc.
Mounting Type	Through Hole, Right Ang.
Number of Positions	9
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-55?C ~ 125?C
Package	Bulk
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	-
Series	SSW
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Radwell	SSW-109-02-G-S-RA	1.8	1	55		SAMTEC		1.8 @ 1
	Samtec	SSW-109-02-G-S-RA	2.14	1	762		Samtec		2.14 @ 1
	Digi-Key	1112494	2.69	1	37		Samtec Inc.		2.69 @ 1
	Hotenda	H1432305	2.87	1	55		Samtec, Inc.		2.87 @ 1
	Newark	11P9462	3.27	1	762		SAMTEC		3.27 @ 1
	RS Delivers	765-5723P	3.576	1	321		Samtec		3.576 @ 1
