Schneider Electric LC2D12G7V

B00CONO6B0

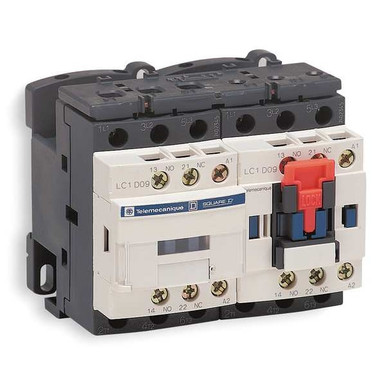

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 12A Iec LC2D12G7V Ac Drive Baseplate 1 Hp 230V 3 Phase

SCHNEIDER ELECTRIC Reversing Contactor 575-Vac 12A Iec LC2D12G7V Ac Drive Baseplate 1 Hp 230V 3 Phasezoom

Attributes

Key Value
3-Phase HP Rating (Max.)10 hp
[Icw] Rated Short-Time .30 A 40 ?C - 10 min for.
[Ith] Conventional Free.10 A (at 60 ?C) for sig.
[Uc] Control Circuit Vo.120 V AC 50/60 Hz
[Ui] Rated Insulation V.power circuit 690 V IEC.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
ActionReversing
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
Amperage Rating25A
ApplicationResistive load;motor co.
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contact Form1NC/1NO
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 25 A 50 .
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLC2D12G7V
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1501004
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Power Rating7.5-7.5 VA 60 HZ 0.3 20.
Coil Technologywithout built-in suppre.
Coil Voltage120 V AC 50/60 Hz, 120 .
Coil Volts120V AC, 120 V AC
ColorBlack/White
ConnectionPOWER CIRCUIT SCREW CLA.
Connections - Terminalspower circuit screw cla.
Contact Configuration1 NO + 1 NC
Contact Current Rating12 A
Contact Operation3NO
Contact Rating10 A 60 A Degrees C SIG.
Contactor Applicationresistive load || motor.
Control Circuit TypeAC 50/60 Hz
Control Circuit Voltage.0.3...0.6 Uc -40-70 ?C .
Control Voltage575 V
Country of OriginFR - France, France
Country of Origin (subj.France
Current Stock9
Depth86 mm, 3.54 in
Device Presentationpreassembled with rever.
Device Short NameLC2D
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Environmental DisclosureENVPEP1501004
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors
Fire Resistance850 ?C IEC 60695-2-1
Flame RetardanceV1 conforming to UL 94
Frame / Series / Class .TeSys
Full Load Amps-Inductive12 A
Full Load Amps-Resistive25 A
General Purpose (AC1)25 A
Gross Weight0 lbs
Heat Dissipation2-3 W 50/60 Hz
Height77 mm, 3.54 in
Hold-In Power Consumpti.7.5-7.5 VA 60 Hz cos ph.
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 230V2
HP @ 1 Phase - 240V2 hp
HP @ 3 Phase - 240V3 hp
HP @ 3 Phase - 480V7 1/2 hp
HP @ 3 Phase - 575V10 hp
Hz50/60 Hz, 50/60
IncludesElectrical Interlock
Inrush Power In Va70-70 VA 60 Hz cos phi .
Insulation Resistance> 10 MOhm for signallin.
Interlocking Typeelectrical and mechanic.
International ShippingNo
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.250 A at 440 V for powe.
ItemIEC Magnetic Contactor,.
Item NumberLC2D12G7V
Item TypeReversing contactor;LC2D
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberLC2D12G7V
Max HP 200/208V 3PH3 hp
Max HP 230/240V 3PH3 hp
Max HP 460/480V 3PH7.5 hp
Max HP 575/600V 3PH10 hp
Maximum Horse Power Rat.1 hp at 115 V AC 60 Hz .
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability15 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA for signalling cir.
Minimum Switching Volta.17 V for signalling cir.
Motor Power Kw3 kW at 220...230 V AC .
MountingRail Plate
Mounting Supportplate || rail
Mounting TypePanel Mount
MpnLC2D12G7V
Net Weight0 lbs, 0.697 kg
Nominal Coil Voltage120 VAC
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles3
Operating Altitude0...9842.52 ft (0...300.
Operating Cycles25...400 HZ,3600 CYC/H .
Operating Temperature-20-60 A Degrees C,-40-.
Operating Time12...22 ms closing || 4.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Pollution Degree3
Power Dissipation Per P.1.56 W AC-1 || 0.36 W A.
Product CertificationsDNV || CSA || CCC || UL.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.reversing contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A at 440 V for powe.
Rating25A
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
ReversingYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys D, TeSys Deca Ser.
Signalling Circuit Freq.25...400 Hz
Size77 MM,86 MM,90 MM
SKUZO-G1664381
Special FeaturesReversing, 1 HP 115 V A.
StandardDNV;CSA;CCC;UL;GL;LROS .
StandardsUL, CSA, CSA C22.2 No 1.
Sub BrandTeSys D
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Tightening Torquepower circuit 1.7 N.m s.
Toxic Heavy Metal FreeYes
Typereversing contactor
UL Motor Switching (AC3)12 A
UNSPSC39121529
UPC785901294634
Utilisation CategoryAC-3 || AC-1
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage1.56 W AC-1-0.36 W AC-3
WeeeThe product must be dis.
Width3.54'', 90 mm, 3.54 in
