Square D/Telemecanique LP4K0610BW3

B00CONI8IC

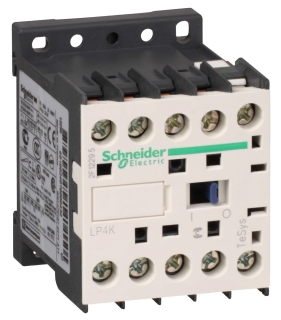

Square D Lp4K0610Bw3 Contactor 600Vac

Square D Lp4K0610Bw3 Contactor 600Vaczoom

Attributes

Key Value
3-Phase HP Rating (Max.)3 hp
[Icw] Rated Short-Time .90 A 50 ?C - 1 s for po.
[Ith] Conventional Free.20 A (at 60 ?C) for pow.
[Uc] Control Circuit Vo.24 V DC
[Ui] Rated Insulation V.power circuit 600 V UL .
[Uimp] Rated Impulse Wi.8 kV
Ambient Air Temperature.-25-50 ?C
Ambient Air Temperature.-50-80 ?C
Applicationmotor control
ApprovalsCSA, UL
Aux. Contact Configurat.None
Auxiliary Contact Compo.1 NO
Auxiliary Contacts1NO
Auxiliary Contacts Typeinstantaneous 1 NO
Average Impedance3 mOhm - Ith 20 A 50 Hz.
BrandSchneider Electric
California Proposition .Antimony oxide & Antimo.
Catalog NumberLP4K0610BW3
China Rohs RegulationPro-active China RoHS d.
Circularity ProfileENVEOLI1503003EN
Coil Power Rating1.8-1.8 W 20 A Degrees C
Coil Technologybuilt-in bidirectional .
Coil Voltage24 VDC, POWER CIRCUIT 6.
Coil Volts24 V DC
ConnectionSCREW CLAMP TERMINALS 1.
Connections - Terminalsscrew clamp terminals 1.
Contact Configuration1 NO,3 NO,INSTANTANEOUS.
Contact Current Rating6 A
Contact Operation3NO
Contact Rating20 A 50 A Degrees C POW.
Contactor Applicationmotor control
Contactor TypeNon-Reversing
Control Circuit TypeDC wide range
Control Voltage24 V
Country of OriginFR - France, France
Country of Origin (subj.France
Current, Ratings20
Depth2.24 in, 0.079 in, 57 mm
Device Short NameLP4K
Dimensions58 x 45 x 57 mm
ECCNEAR99
Enclosure NEMA RatingNo Enclosure
Enclosure TypeIP2X
Environmental DisclosureENVPEP1503003EN
Eu Rohs DirectiveCompliant
Family SeriesSquare D Contactors, Te.
Flame RetardanceV1 conforming to UL 94 .
Frame / Series / Class .TeSys
Full Load Amps-Inductive6 A
General Purpose (AC1)20 A
Gross Weight0.485 lbs
GTIN03389110428568
Heat Dissipation1.8-1.8 W
Height2.28 in, 58 mm
Hold-In Power Consumpti.1.8-1.8 W 20 ?C
Horsepower Rating3 hp
Hz50/60
Inrush Power In W1.8-1.8 W 20 ?C)
Insulation Resistance> 10 MOhm for signallin.
Ip Degree Of ProtectionIP2X
Irms Rated Making Capac.110 A AC for power circ.
ItemIEC Magnetic Contactor
Item NumberLP4K0610BW3
Item Typecontactor
Length2.283 in
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number575293
Max HP 120V 1PH0.5 hp
Max HP 200/208V 3PH1.5 hp
Max HP 230/240V 1PH1 hp
Max HP 230/240V 3PH1.5 hp
Max HP 460/480V 3PH3 hp
Max HP 575/600V 3PH3 hp
Max. Inductive Amps (AC.6A
Max. Resistive Amps (AC.20A
Maximum Operating Rate3600 cyc/h
Maximum Operating Tempe.50 C
Mechanical Durability30 Mcycles
Mercury FreeYes
Minimum Operating Tempe.-25 C
Minimum Switching Curre.5 mA for signalling cir.
Minimum Switching Volta.17 V for signalling cir.
Motor Power Kw1.5 kW 220...230 V AC 5.
MountingRail Plate
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount ; Panel .
Net Weight0.235 kg, 0.465 lbs
Nominal Coil Voltage24 VDC
Number of Poles3
Operating Altitude6561.68 ft (2000 m) wit.
Operating Cycles3600 cyc/h
Operating Temperature-25-50 A Degrees C
Operating Time10...20 ms coil de-ener.
Overvoltage CategoryIII
Pole Contact Composition3 NO
Poles3NO
Poles Description3P
Power Rating3 kW
Primary Typecontactor
Product CertificationsCB Scheme || CCC || UL .
Product Or Component Ty.contactor
Product SeriesTeSys
RangeTeSys
Rated Breaking Capacity110 A at 220...230 V co.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
ReversingNo
RoHSYes
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesTeSys Micra Series, TeS.
Single-Phase HP Rating .1 hp
Size45 MM,57 MM,58 MM, 58 H.
Special Featuresbuilt-in bidirectional .
StandardCSA-UL,V1 UL 94-REQUIRE.
StandardsBS 5424 ; IEC 60947 ; N.
Sub BrandTeSys K
Sustainable Offer StatusGreen Premium product
Temperature Operating R.-25 to 50 C
Terminal TypeScrew Clamp
TerminationScrew
Tightening Torque0.8-1.3 N.m screw clamp.
Toxic Heavy Metal FreeYes
UL Motor Switching (AC3)6 A
UNSPSC39121529
UPC785901428565
UPC Code785901428565
Utilisation CategoryAC-3 || AC-3e || AC-4
Voltage Rating690 V
Warranty18 months
Warranty DescriptionContractual Warranty:18.
WeeeThe product must be dis.
Width0 in, 1.77 in, 45 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMELP4K0610BW338.391In StockSCHNEIDER ELECTRIC38.39 @ 1
RS Delivers305-209863.612127Schneider Electric63.612 @ 1
thumbzoomkempstoncontrols.co.ukLP4K0610BW363.76716451In StockSchneider63.7671645 @ 1
thumbzoomZoroG056885893.491In Stock70Schneider Electric0.4993.49 @ 1
thumbzoomgordonelectricsupply.comLP4K0610BW395.091In StockSQUARE D95.09 @ 1
thumbzoomblackhawksupply.comLP4K0610BW3104.841In StockSquare D104.84 @ 1
thumbzoommayerelectric.comSQDLP4K0610BW3106.931In StockSQUARE D0.517106.93 @ 1
thumbzoommostelectric.comLP4K0610BW3109.2612SQUARE D/TELEMECANIQUE109.26 @ 1
thumbzoomGalcoLP4K0610BW3-SQD109.5114Square D0.485109.51 @ 1
Graybar22045877116.89441In StockSquare D (Schneider Electric)116.8944 @ 1
thumbzoomsustainablesupply.comC3039543122.151In StockSchneider Electric0.49122.15 @ 1
thumbzoomcrescentelectric.com59141125.13110Schneider Electric125.13 @ 1
thumbzoomNational Supply Network42790527148.291In StockSchneider Electric148.29 @ 1
us.rs-online.com70007529159.8114Schneider Electric159.8 @ 1
thumbzoomNewark16B646171.151In StockSCHNEIDER ELECTRIC171.15 @ 1
