Schneider Electric SSM1D312BD

B00VJL1ZRQ

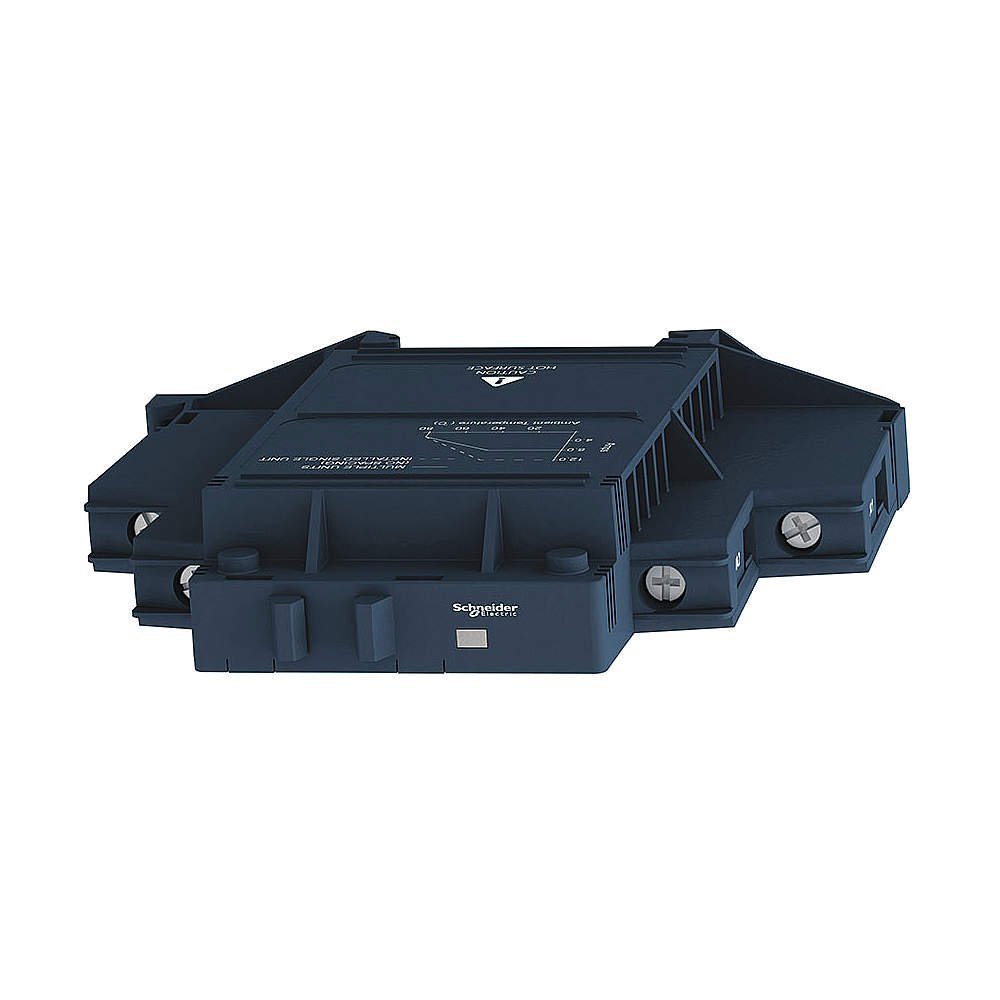

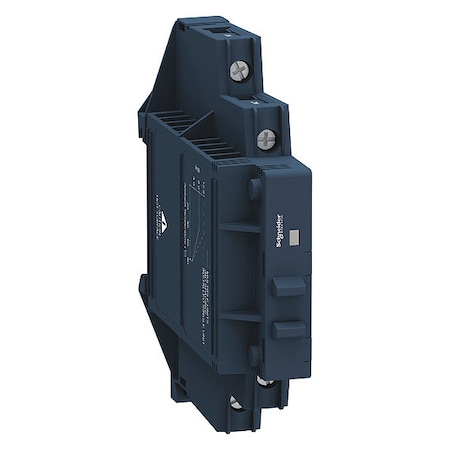

Telemecanique/Schneider Electric - SSM1D312BD - Solid State Relay, Input or Control Voltage 4 to 32VDC

Telemecanique/Schneider Electric - SSM1D312BD - Solid State Relay, Input or Control Voltage 4 to 32VDCzoom

Attributes

Key Value
ApplicationZelio Relay
Auxiliary SwitchNo
Body Depth3.29 in
Body Depth - Relay3.45 in
Body Height3.55 in
Body Height - Relay3.3 in
Body Width0.7 in
Body Width - Relay0.72 in
BrandSchneider Electric
Catalog NumberSSM1D312BD
CategoryRelays
CircuitSPST-NO (1 Form A), 1NO
ConnectionScrew terminals 1 x 0.3.
Contact Form - RelaySPST-NO
Country of OriginMexico
Current Rating12 A
Current Stock47
Depth83.7 mm
DescriptionSSR RELAY SPST-NO 12A 1.
Detailed DescriptionSolid State SPST-NO (1 .
Digi-Key Part Number4008-SSM1D312BD-ND
Family SeriesSquare D Relays, Zelio .
Gross Weight0 lbs
GTIN03606480579479
Heat SinkIntegral
Height90.3 mm
Input or Control Voltage4 to 32V DC
Input PolarityDC
Input Power Consumption.0.4W
Input Signal4-32 VDC
Input Voltage4 to 32V DC
Integral Heat SinkNo
International ShippingNo
ItemSolid State Relay
Item - RelaySolid State Relay
Item NumberSSM1D312BD
Item TypeSolid state relay up to.
Lead TimeExpected to ship in 1-2.
Load Current12 A
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number535047
Manufacturer Product Nu.SSM1D312BD
Manufacturer Standard L.7 Weeks
Max. Output Amps w/Heat.12 A
MfrSchneider Electric
MountingSymmetrical DIN rail, D.
Mounting - RelayDIN Rail
Mounting TypeDIN Rail
MOVNo
MpnSSM1D312BD
Net Weight0 lbs
Nominal Output Voltage12 VDC, 125 VDC, 3.3 VD.
Number of Circuits1
Operating Temperature-30-80 A Degrees C
Output or Controlled Vo.2 to 100V DC
Output TypeDC
Output Voltage1-100 VDC
Overall Depth3.29 in
Overall Height - Relay3.3 in
PackageBox
Package / CaseModule
Product SeriesZelio Relay
Product StatusActive
Relay Turns On AtZero Crossing
SeriesHarmony
Size3.30
SKUZO-G9347791
SnubberNo
Special Featuresfor input status LED (g.
StandardCE,CSA-UL-REACH,IEC 609.
Status IndicatorYes
Sub BrandSSM
SubCategoryElectrical
Switch TypeMOSFET
Switching TypeDC
TerminationScrew Terminal
Termination StyleScrew Terminal
Transient Overvoltage100 V
UPC785901970897
Voltage - Input4 ~ 32VDC
Voltage - Load1 V ~ 100 V
Voltage Output2 to 100VDC
Width18 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoSSM1D312BD-SQD43.41112Square D43.41 @ 12
thumbzoomZoroG934779146.45118Schneider Electric0.246.45 @ 12
industrialrefrigerationparts.comSSM1D312BD47.06112Schneider Electric47.06 @ 12
thumbzoomTMESSM1D312BD47.26125SCHNEIDER ELECTRIC47.26 @ 12
thumbzoomRadwellSSM1D312BD48.0112SCHNEIDER ELECTRIC SQUARE D48.0 @ 12
thumbzoomblackhawksupply.comSSM1D312BD48.14112Square D48.14 @ 12
thumbzoomcrescentelectric.com60081948.86112Schneider Electric48.86 @ 12
thumbzoomNewark28Y753953.37112SCHNEIDER ELECTRIC53.37 @ 12
thumbzoomDigi-Key1661425158.18112Schneider Electric58.18 @ 12
RS Delivers922-197258.584115Schneider Electric58.584 @ 12
thumbzoomsimsupply.comZO-G934779160.94147Schneider Electric60.94 @ 12
thumbzoomAmazonB00VJL1ZRQ72.91112Schneider Electric72.91 @ 12
thumbzoomRaptor SuppliesAG4VHP105.7348305112SCHNEIDER ELECTRIC105.7348305 @ 12
