- mpn3RA23168XB301AP6
- brandname: Siemens
- manufacturername: Siemens

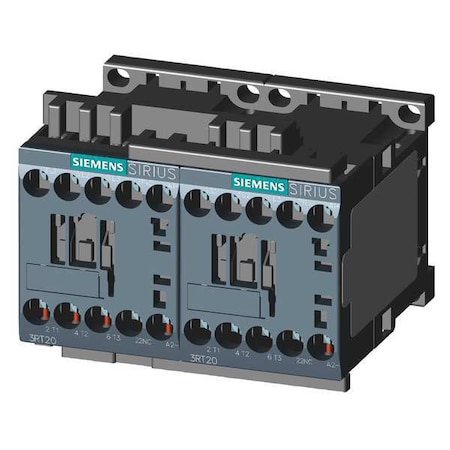

Siemens Sirius 3RA23168XB301AP6 IEC Mangnetic Contactor, Reversing, 240VAC, 3 Pole, Size S00, 9 Full Load Amps-Inductive, Interlock, Screw Terminal


- Brand: SIEMENS
- PartNumber: 3RA23168XB301AP6
- Model: 3RA2316-8XB30-1AP6
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Siemens
- Label: Siemens
Attributes
Key | Value |
---|
(3P) Three Pole | Pole |
-25 ?C | Start Temp. (Min) |
040892633368 | UPC |
220 V AC 50 Hz/240 V 60. | Voltage (V) |
3RA23168XB301AP6 | Stock Code |
4 KW/400 V | Wattage (w) |
60 ?C | Start Temp. (Max) |
Action | Reversing |
Aux. Contact Configurat. | 2 NC |
Auxiliary Contact Form | 2NC |
Category | Contactors, Relays |
CE, EAC, CSA, UL | UL Listed |
Coil Voltage: | 240V |
Coil Volts | 220/240 V AC |
Connection: | screw-type terminals |
Contact Current Rating | 9 A |
Contact Rating: | A600 / Q600 |
Control Voltage | 240 V |
Country of Origin | DE |
Country of Origin (subj. | Germany |
Current Rating | 9 A |
Depth | 2.87 in, 0.079 in |
Dimensions | 68 x 90 x 73 mm |
Enclosure NEMA Rating | No Enclosure |
Estimated Weight | 1.01 |
Frame / Series / Class . | S00 |
Full Load Amps-Inductive | 9 A |
Full Load Amps-Resistive | 22 A |
Function | Contactor |
Height | 3.54 in |
Horsepower Rating | 8 HP |
Horsepower, Max, 1 Phas. | 0.33 |
Horsepower, Max, 1 Phas. | 1 |
Horsepower, Max, 1 Phas. | 1 |
Horsepower, Max, 3 Phas. | 2.0 |
Horsepower, Max, 3 Phas. | 3 |
Horsepower, Max, 3 Phas. | 5 |
Horsepower, Max, 3 Phas. | 7.5 |
HP @ 1 Phase - 120V | 1/3 hp |
HP @ 1 Phase - 230V | 1 |
HP @ 1 Phase - 240V | 1 hp |
HP @ 3 Phase - 208V | 2 hp |
HP @ 3 Phase - 240V | 3 hp |
HP @ 3 Phase - 480V | 5 hp |
HP @ 3 Phase - 575V | 7 1/2 hp |
Hz | 50/60 |
Includes | Mechanical Interlock |
IP20 | IP Rating |
Item | IEC Magnetic Contactor |
Length | 2.677 in |
Manufacturer | Siemens Industry, Inc.,. |
Maximum Operating Tempe. | 60 C |
Mfr | Siemens |
Minimum Operating Tempe. | -25 C |
Mounting Type | DIN Rail Mount |
Mounting: | screw and snap-on mount. |
Number of Poles | 3 |
Operating Temperature: | 60.0 -25.0 C |
Package | Box |
Part Number | 3RA23168XB301AP6 |
Part Status | Active |
Phase: | 3 |
Power Rating | 4 kW |
Relay Type | Electromechanical |
Reversing | Yes |
Series | *, 3RA Series |
Siemens | Brand |
Size | S00 |
Size: | S00 |
Standard: | CSA / UL |
Standards | CAC ; CE Approved ; CSA. |
Sub Brand: | SIRIUS |
Temperature Operating R. | -25 to 60 C |
Terminal Type | Screw Terminal |
Termination | Screw |
Type | Reversing Contactor |
Type: | Reversing contactor ass. |
UNSPSC | 39121529 |
UPC | 040892633368 |
UPC Code | 040892633368 |
Voltage Rating | 400 V |
Width | 0 in, 3.54 in |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | industrialzone.com | 3RA23168XB301AP6 | 126.91 | 2 | In Stock | | Siemens | 2.0 | 126.91 @ 2 |
  | Radwell | 3RA23168XB301AP6 | 155.67 | 1 | In Stock | | SIEMENS | | 155.67 @ 1 |
  | sustainablesupply.com | C2927696 | 160.65 | 1 | In Stock | | Siemens | 1.1 | 160.65 @ 1 |
| Digi-Key | 15271863 | 200.83 | 1 | In Stock | | Siemens | | 200.83 @ 1 |
  | Zoro | G4319682 | 202.84 | 1 | In Stock | | Siemens | 1.1 | 202.84 @ 1 |
| us.rs-online.com | 70239720 | 261.04 | 1 | In Stock | | Siemens | | 261.04 @ 1 |
  | motorsandcontrol.com | 3RA2316-8XB30-1AP6 | 335.78 | 1 | In Stock | | Siemens | 1.01 | 335.78 @ 1 |
| Dale-Electric | 3RA23168XB301AP6 | 340.82 | 1 | In Stock | | Siemens Industry, Inc. | | 340.82 @ 1 |
  | turtle.com | ITE 3RA23168XB301AP6 | 421.65 | 1 | In Stock | | Siemens | | 421.65 @ 1 |
  | bulbspro.com | 3RA23168XB301AP6 | 456.82 | 1 | In Stock | | Siemens | | 456.82 @ 1 |
