Smith Bearing IRR-13/16

mpnIRR-13/16
brandname: Smith Bearings
manufacturername: Smith Bearings

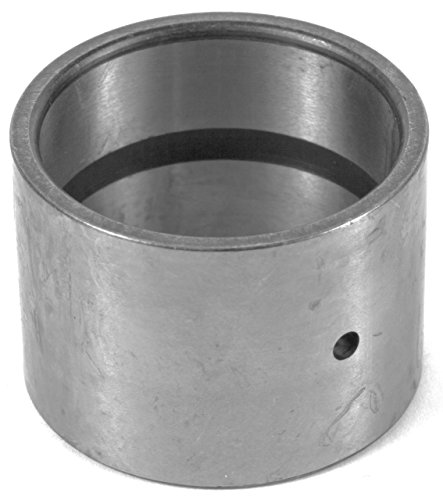

Smith Bearing IRR-13/16 Ancillary Bearings, Inner Ring Races

Smith Bearing IRR-13/16 Ancillary Bearings, Inner Ring Races

zoom

Brand: Smith Bearing
PartNumber: IRR-13/16
Model: SMI IRR-13/16
PackageQuantity: 1
Binding: Misc.
Manufacturer: Miller Bearings
Label: Miller Bearings

Attributes

Key	Value
Bore Dia. (In.)	0.8125 in
Bore Diameter	13/16 in
Bore Diameter I.D. Nomi.	.8125
Bore Diameter I.D. Tole.	+0.0000/-0.0005
Bore Diameter Tolerance	+0.0000/-0.0005 in
Finish	Chrome Plated
Hole Diameter	1/8
Item	Inner Ring
Lubrication Openings	Oil Holes
Max. Fillet for Shaft	.040
Outside Dia. (In.)	0.9993 in
Outside Diameter	0.999 in
Outside Diameter Nominal	.9993
Outside Diameter Tolera.	+0.0000/-0.0005, +0.000.
Overall Width	1.010, 1.01 in
Overall Width Tolerance	+.000/-.005
Ring Material	Alloy Steel
Ring Material Grade	52100
SMITH Bearing Number	IRR-13/16
Standards	AS 9100, ISO Certified .
System of Measurement	Inch
Width (In.)	1.01 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonSC	B00MHT8NH4	3.68	1	27		Smith Bearing		3.68 @ 1
	Zoro	G4842446	9.49	1	In Stock		Smith Bearing	0.07	9.49 @ 1
	MRO Supply	858991	10.09	4	In Stock		Smith Bearings		10.09 @ 4
	motionindustries.com	05942526	19.04	1	In Stock		Smith Bearing Company		19.04 @ 1
	Grainger	49EP87	21.32	1	In Stock	15	SMITH BEARING		21.32 @ 1
