- mpnSCP30S15DN
- brandname: Sola HD
- manufacturername: Sola HD

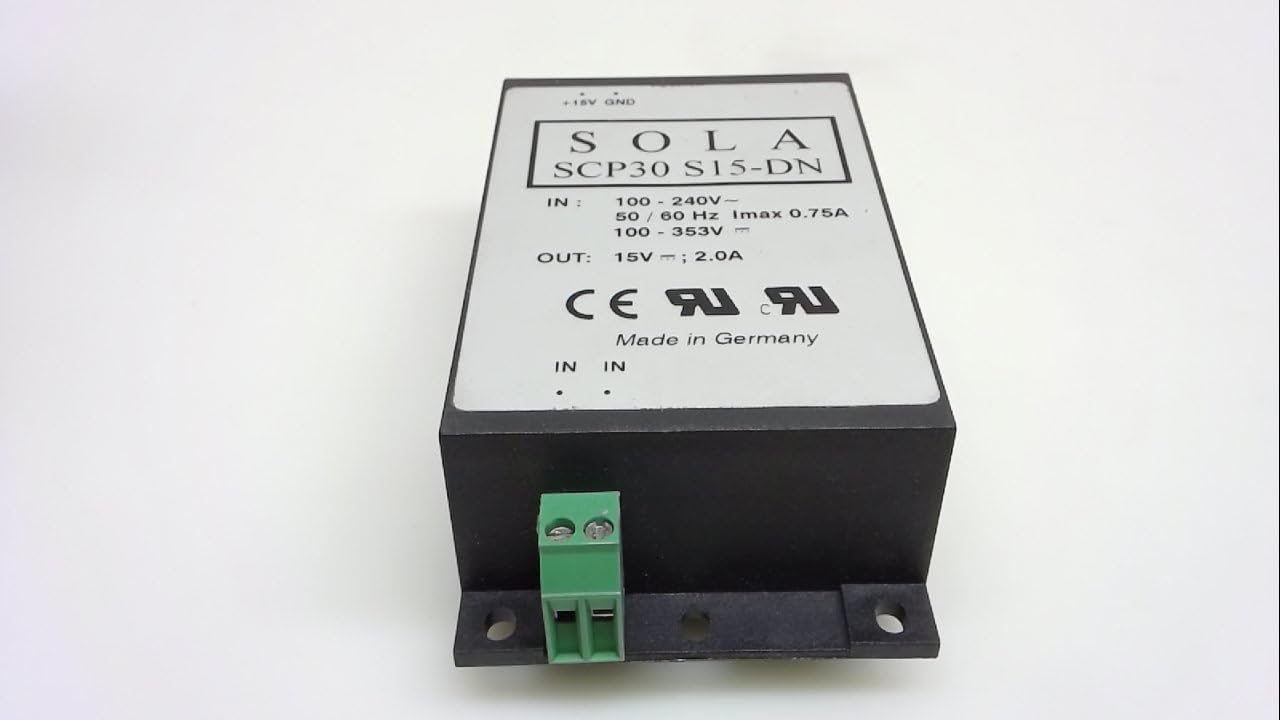

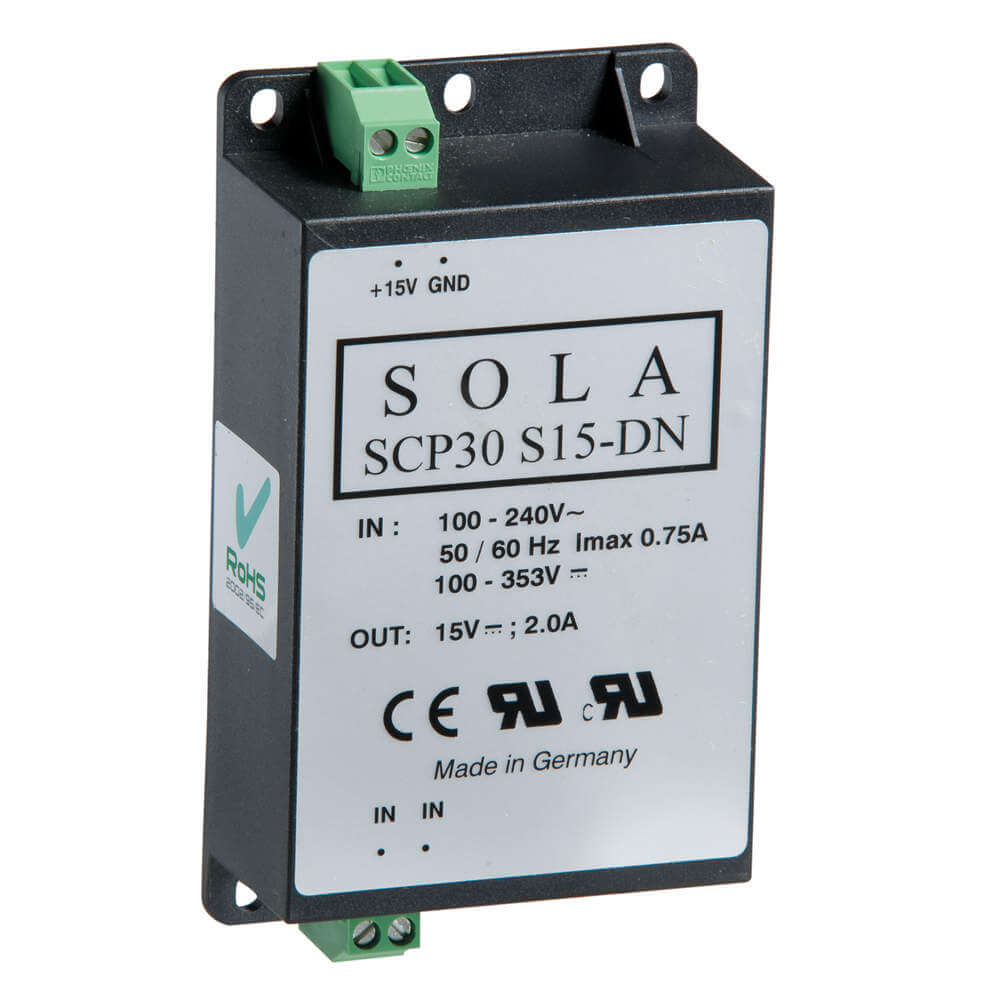

Sola/Hevi-Duty SCP30S15-DN DC Power Supply, 15 VDC, 2 Amp, 50/60 Hz
- Brand: SOLA-HD
- PartNumber: SCP30S15-DN
- Model: SOLSCP30S15DN
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Sola/Hevi-Duty
- Label: Sola/Hevi-Duty
Attributes
| Key | Value |
|---|
| AC Voltage - Input | 85 ~ 264 VAC |
| Amps | 2.500 |
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| ASIN | B00BC81ELS |
| Base Product Number | SCP30 |
| Brand | SOLAHD |
| Case Material | Metal Case |
| Category | Power Supplies - Extern. |
| Configuration | Encapsulated |
| Country of Origin (subj. | Germany |
| Current - Output (Max) | 2A |
| Current Rating | 2 A |
| Current Stock | 12 |
| DC Voltage - Input (Max) | 375V |
| DC Voltage - Input (Min) | 100V |
| Depth | 1.29 in |
| Description | AC/DC DIN RAIL SUPPLY 1. |
| Digi-Key Part Number | 2106-SCP30S15-DN-ND |
| Dimensions | 4.72 H x 2.55 W x 1.29 . |
| Efficiency | 75% |
| Extended Lead Time | Ships in 85 business da. |
| Family Series | SolaHD Miscellaneous, S. |
| Features | Encapsulated Design To . |
| Gross Weight | 0.885 lbs |
| Height | 4.71 in |
| Hold Up Time | Greater Than 50 msec |
| Hz | 50 to 60 Hz |
| In. Voltage | 85-264 |
| Input Type | AC or DC |
| Input Voltage | 100 VAC ; 110 VAC ; 115. |
| Input Voltage Range | 85-264 VAC |
| International Shipping | No |
| IP Rating | 20 |
| Item | Dc Power Supply |
| Item model number | SCP30S15-DN |
| Item Number | SCP30S15-DN |
| Manufacturer | SOLAHD |
| Manufacturer Part Number | SCP30S15DN |
| Manufacturer Product Nu. | SCP30S15-DN |
| Manufacturer Standard L. | 12 Weeks |
| Mfr | SOLAHD |
| Minimum Load Required | No |
| Mounting | DIN Rail/Chassis |
| Mounting Type | DIN Rail/Panel, DIN Rai. |
| Mpn | SCP30S15DN |
| NEMA Rating | 1 |
| Net Weight | 0.815 lbs |
| Number of Outputs | 1 |
| Operating Temp. Range | -25 Degrees to 65 Degr. |
| Operating Temperature | -25 to +65 ?C, -25?C ~ . |
| Operation | Switching |
| Out. Voltage | 15 VDC |
| Output 1 Voltage | 15 VDC |
| Output Amps | 2 |
| Output Current | 2 A |
| Output Noise | Less Than or Equal to 1% |
| Output Power | 30 W |
| Output Voltage | 15 VDC, 15V DC |
| Package | Bulk |
| Peak Amps | 2.6 |
| Phase - Electrical | Single |
| Power (Watts) | 30W |
| Power Rating | 30 W, 30W |
| Primary Type | AC-DC |
| Product Header | SCP Series Low Profile . |
| Product Series | SCP |
| Product Status | Active |
| Series | SCP (30W), SCP, SCP Ser. |
| Shop By | Closeouts |
| Size / Dimension | 2.55" L x 1.29" W x 4.7. |
| SKU | ZO-G4087422 |
| Special Features | 5 Year Warranty ; IP20 . |
| Standards | CE, CUL /CSA, cURus E13. |
| Status Indicator | Green LED |
| Style | Switching |
| SubCategory | Electrical |
| Switching Frequency | 100 kHz |
| Temperature Coefficient | 0.01%/K |
| Type | Industrial |
| UPC | 783472152667 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Weight | 0.75 lb |
| Width | 2.55 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | SCP30S15-DN | 164.8 | 1 | 1 | | SOLA | | 164.8 @ 1 |
| AmazonTP | B00BC81ELS | 165.35 | 1 | In Stock | 5 | SOLAHD | | 165.35 @ 1 |
 | Amazon | B00BC81ELS | 165.35 | 1 | In Stock | | SOLAHD | | 165.35 @ 1 |
 | Carlton Bates Company | 78347215266 | 178.53 | 1 | In Stock | | SOLAHD | | 178.53 @ 1 |
 | sustainablesupply.com | C1156797 | 190.81 | 1 | In Stock | | Sola | 0.85 | 190.81 @ 1 |
 | Zoro | G4087422 | 200.0 | 1 | In Stock | | Solahd | 0.85 | 200.0 @ 1 |
 | Walker Industrial | SCP30S15DN | 206.86 | 1 | In Stock | 17 | SolaHD | | 206.86 @ 1 |
| Hawk Electronics | SCP30S15DN | 219.8 | 1 | In Stock | | Sola HD | | 219.8 @ 1 |
 | Digi-Key | 10071979 | 220.63 | 1 | 2 | | SolaHD | | 220.63 @ 1 |
 | MRO Supply | 1011844 | 220.65 | 2 | In Stock | | SolaHD | | 220.65 @ 2 |
| kirbyrisk.com | 517842 | 231.77 | 1 | In Stock | | Solahd | | 231.77 @ 1 |
 | Galco | SCP30S15-DN-SOLA | 243.37 | 1 | In Stock | | SolaHD | 0.885 | 243.37 @ 1 |
 | gordonelectricsupply.com | SCP30S15-DN | 244.0 | 1 | In Stock | 380 | SOLA-HD | | 244.0 @ 1 |
 | simsupply.com | ZO-G4087422 | 256.89 | 1 | In Stock | | Solahd | | 256.89 @ 1 |
 | Platt.com | 0674520 | 261.15 | 1 | In Stock | | Sola Hevi-Duty | | 261.15 @ 1 |
| us.rs-online.com | 70211358 | 263.1 | 1 | 5 | | SolaHD | 0.75 | 263.1 @ 1 |
 | Raptor Supplies | AA2GBN | 379.385019 | 1 | In Stock | | SOLA/HEVI-DUTY | | 379.385019 @ 1 |
