Square D by Schneider Electric 9013GHG2J53

B000CG0JEO

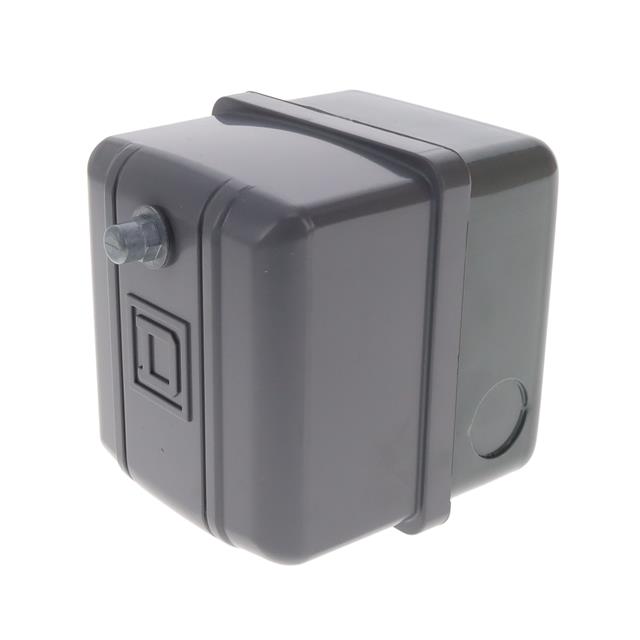

Square D by Schneider Electric 9013GHG2J53 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 100-125 psi Points

Square D by Schneider Electric 9013GHG2J53 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 100-125 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.65-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .20-40 psi
BrandSquare D
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circularity ProfileENVEOLI111210EN
ConditionNew
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock22
Depth3.88 in
DescriptionPUMPTROL, 9013GH, PUMP .
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GHG2J53-ND
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.4
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901561217
Gtin00785901561217
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Lead TimeExpected to ship in 1-2.
Local Displaywithout
Manual Switch ActionNone
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.9013GHG2J53
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GHG2J53
Nema Degree Of Protecti.NEMA 1 UL 50
Nema RatingNema 1
NEMA Rating1
Net Weight2.25 lb(US)
Operating Positionany position
PackageBox
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GH
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 to 40 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.100/125 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range40 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Specific Applic.control electrically dr.
Product StatusActive
Protective TreatmentNone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series-, 9013GHG, 9013
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G1585491
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsCE || NSF ANSI 372 || U.
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch
Type Of Packingindividual
Upc785901561217
UPC785901561217
Value Of Setting100...125 psi
Warranty18 months
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.com9013GHG2J5355.531In StockSquare D55.53 @ 1
thumbzoomindustrialrefrigerationparts.com9013GHG2J5373.331In StockSquare D2.073.33 @ 1
AmazonTPB000LEDNNQ74.381In Stock2Square D74.38 @ 1
thumbzoomsustainablesupply.comC117923677.31In StockSquare D2.077.3 @ 1
thumbzoomDigi-Key1637817693.091In StockSchneider Electric93.09 @ 1
thumbzoomZoroG158549193.49188Square D2.093.49 @ 1
thumbzoommidwestapplianceparts.com9013GHG2J53-SQ-P97.721In StockSquared97.72 @ 1
thumbzoomptacsolutions.com9013GHG2J53100.551In StockSchneider Electric (Square D)100.55 @ 1
thumbzoommayerelectric.comSQD9013GHG2J53101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomcappusa.com1673593102.951In StockSquare D102.95 @ 1
thumbzoomsimsupply.comZO-G1585491110.75122Square D110.75 @ 1
grainger.caGUS2FH22138.77410721In StockSQUARE D2.0138.7741072 @ 1
thumbzoomRaptor SuppliesAH2NUP170.8875091In StockSQUARE D170.887509 @ 1
