Square D by Schneider Electric 9013GHG2J57

B00E07LNO6

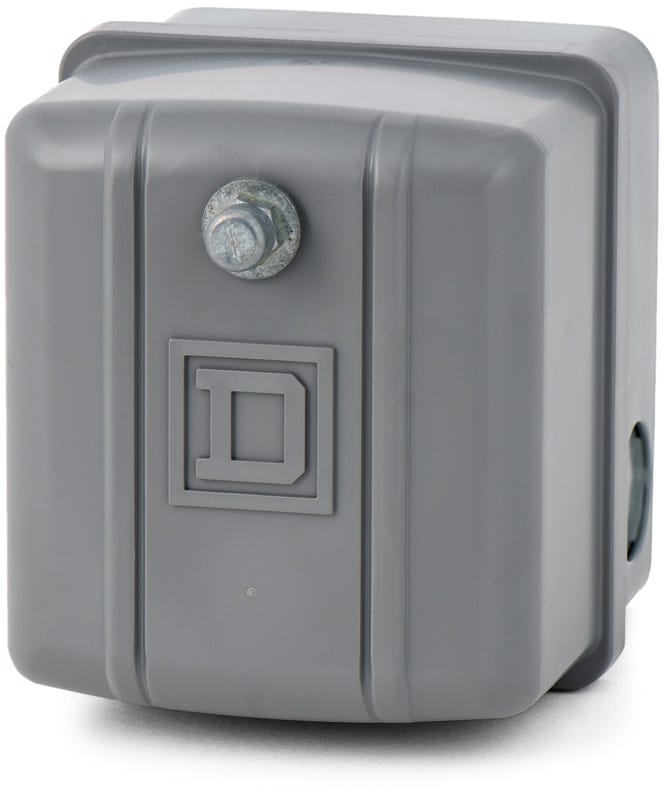

Square D by Schneider Electric 9013GHG2J57 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 120-150 psi Points

Square D by Schneider Electric 9013GHG2J57 Pressure Switch, 200/250 psi Sensor, NEMA 1 Enclosure, 1/4" NPSF, 120-150 psi Pointszoom

Attributes

Key Value
[Ui] Rated Insulation V.575 V UL 508
AC Contact Rating10A @ 575V, 10 A @ 575V
Actuation TypeDiaphragm
Adjustable Range On Ris.65-200 psi
Ambient Air Temperature.-33-257 ?F
Ambient Air Temperature.-33-257 ?F
Approximate Adjustable .20-40 psi
BrandSquare D
Burst Pressure300 psi
Cable Entry Number3 knock-outs for 1/2" c.
California Proposition .Diisononyl phthalate (D.
CategoryIndustrial Automation a.
Circularity ProfileENVEOLI111210EN
ColorGrey
ConditionNew
Contacts Type And Compo.2 NC, snap action, DPST.
Controlled Fluidair -22-257 ?F) || fres.
Current Stock33
Depth3.88 in
DescriptionPUMPTROL, 9013GH, PUMP .
Destruction Pressure300 psi
DifferentialAdjustable Differential.
Digi-Key Part Number4008-9013GHG2J57-ND
Electrical Circuit Typepower circuit
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability100000 cycles 10 cyc/mn
Environmental DisclosureENVPEP111211EN
Estimated Lead Time (in.3
Eu Rohs DirectivePro-active compliance (.
Fluid Connection Type0.25 inch NPSF internal.
GTIN785901559672
Gtin785901559672
Height5.4 in
HP @ 1 Phase - 120V2 hp
HP @ 1 Phase - 240V3 hp
HP @ 3 Phase - 240V5 hp
HP @ 3 Phase - 480V5 hp
International ShippingNo
Ip Degree Of ProtectionIP20 conforming to IEC .
IP RatingIP20 (IEC 60529)
ItemPressure Switch
Local Displaywithout
Manual Switch ActionAuto/Off/On
ManufacturerSquare D, Schneider Ele.
Manufacturer Product Nu.9013GHG2J57
Manufacturer Standard L.1 Weeks
Materialpolypropylene Cover || .
Materials In Contact Wi.zinc plated steel or eq.
Maximum Operating Rate10 cyc/mn
Mechanical Durability300000 cycles
Mercury FreeYes
MfrSchneider Electric
Motor Power Kw1.5 kW 2 hp)115 V AC, 1.
Mpn9013GHG2J57
Nema Degree Of Protecti.NEMA 1 UL 50
Nema RatingNema 1
NEMA Rating1
Net Weight2.25 lb(US)
Operating Positionany position
PackageBox
Pressure ActuatorDiaphragm
Pressure Sensor Name9013GH
Pressure Sensor Size200 psi 40-170 psi)
Pressure Sensor Typeelectromechanical press.
Pressure Switch ActionStandard
Pressure Switch Applica.Air Compressor and Wate.
Pressure Switch Differe.20 to 40 psi
Pressure Switch Electri.DPST
Pressure Switch Factory.120/150 psi
Pressure Switch Port Ty.(1) Port, 1/4 in FNPS
Pressure Switch Range40 to 200 psi
Pressure Switch Type Of.regulation between 2 th.
Pressure Switch UnloaderNo
Product CertificationsUL listed file E12158 |.
Product Specific Applic.control electrically dr.
Product StatusActive
Protective Treatmentnone
Quantity Per Set1
Range Of ProductSquare D Pumptrol
Reach RegulationReference contains Subs.
Repeat Accuracy+/- 3 %
Rohs Exemption Informat.Yes
Scale Typeadjustable differential
Series-, 9013GHG, 9013
Settinginternal
Short-Circuit Protection20 A cartridge fuse gG
SKUZO-G7478886
Special FeaturesNitrile (Buna-N) Diaphr.
StandardsUL 508 || NSF ANSI 372 .
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Temp. Range-22 Degrees to 257 Deg.
Terminal Block Type4 terminals
Terminals Description I.L1-T1 || L2-T2
TypePump Switch
Type Of Packingindividual
Upc785901559672
UPC785901559672
Value Of Setting120...150 psi
Warranty18 months
Weight2.000000
Width3.44 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWhitehead IndustrialGHG2C71.991In StockSquare D2.071.99 @ 1
thumbzoomindustrialrefrigerationparts.com9013GHG2J5773.331In StockSquare D2.073.33 @ 1
thumbzoomsuperbreakers.com9013GHG2J5776.551In StockSquare D76.55 @ 1
thumbzoomsustainablesupply.comC117923778.751In StockSquare D1.9578.75 @ 1
AmazonTPB000LEQE3W80.01In Stock2SQUARE D80.0 @ 1
Onlinecomponents.com9013GHG2J5780.41In StockSquare D80.4 @ 1
thumbzoomZoroG747888691.35145Square D1.9791.35 @ 1
thumbzoomDigi-Key1637813093.0912Schneider Electric93.09 @ 1
thumbzoomgordonelectricsupply.com9013GHG2J5793.591In Stock10SQUARE D93.59 @ 1
thumbzoommidwestapplianceparts.com9013GHG2J57-SQ-P97.721In StockSquared97.72 @ 1
thumbzoommayerelectric.comSQD9013GHG2J57101.221In StockSQUARE D2.25101.22 @ 1
thumbzoomsimsupply.comZO-G7478886108.221In StockSquare D108.22 @ 1
grainger.caSQD9013GHG2J57132.35072411In StockSQUARE D2.0132.3507241 @ 1
thumbzoomNational Supply Network69669935143.221In StockSquare D143.22 @ 1
thumbzoomkempstoncontrols.co.uk9013GHG2J57180.6531481In StockSchneider180.653148 @ 1
thumbzoomRaptor SuppliesAH2NUR183.03310351In StockSQUARE D183.0331035 @ 1
