Schneider Electric H325AWK

B00819RI3E

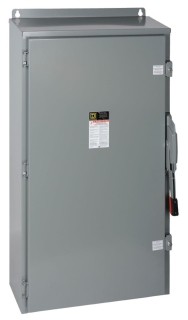

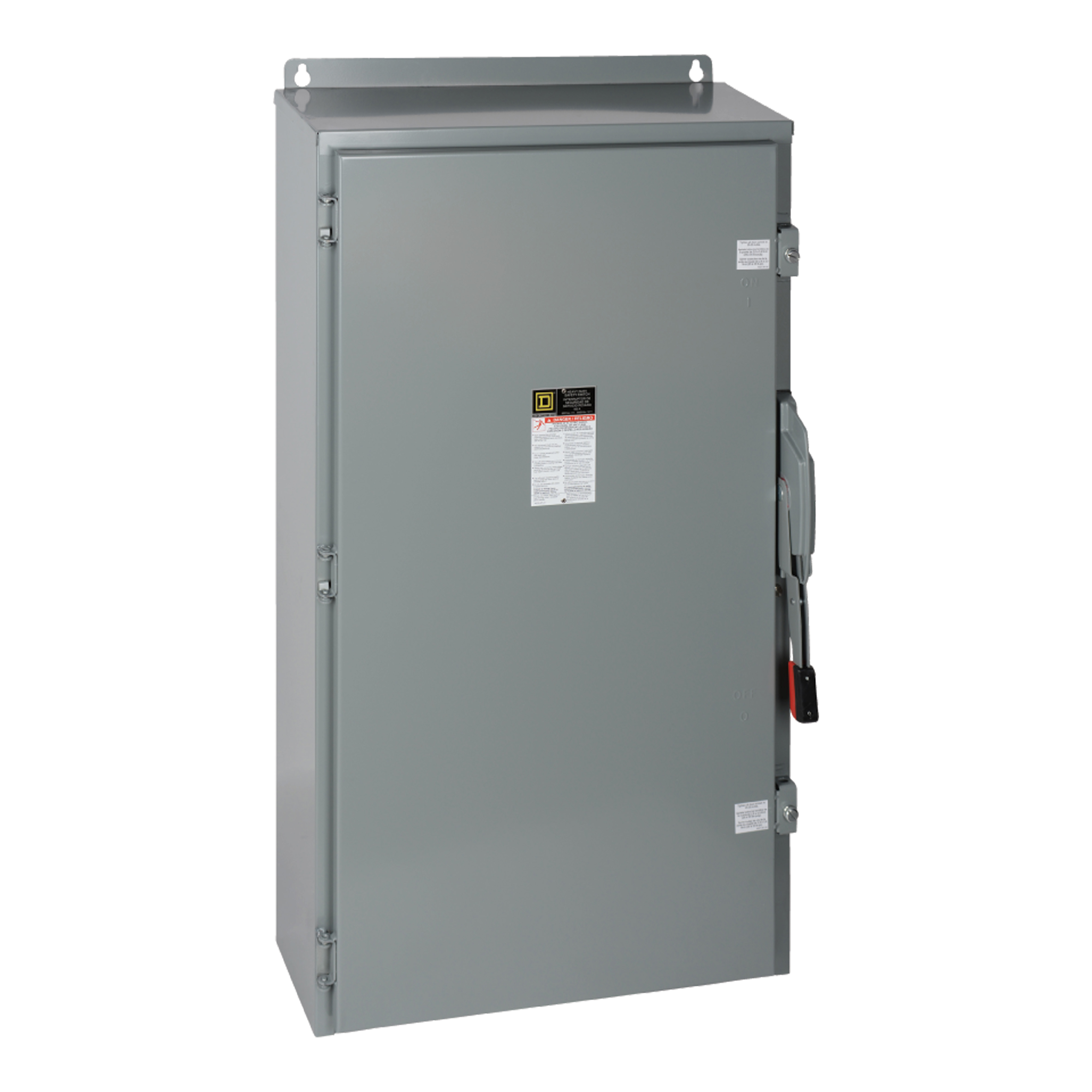

SCHNEIDER ELECTRIC Switch 240-Volt 400-Amp 3-Point No Knockout Nema-12 H325AWK Sw Fusible Hd 240V 400A 3P No Ko Nema12

SCHNEIDER ELECTRIC Switch 240-Volt 400-Amp 3-Point No Knockout Nema-12 H325AWK Sw Fusible Hd 240V 400A 3P No Ko Nema12zoom

Attributes

Key Value
[Ue] Rated Operational .250 V DC || 240 V AC
Actuator TypeHandle/Single Throw
Amperage Rating400
Amps AC400 A
Applicationheavy application
Awg GaugeAWG 1/0...750 kcmil cop.
BrandSquare D
California Proposition .Lead and lead compounds.
Catalog NumberH325AWK
China Rohs RegulationProduct out of China Ro.
ColorGray
ConnectionLugs;AWG 1/0...750 kcmi.
Contact Configuration3
Contact Form3PST, 3NO
Contact RatingY
Country of OriginUnited States
Country of Origin (subj.Mexico
Depth10.13 in, 10.1 in
Device Applicationheavy application
Device Compositionnone
Device MountingSurface
Dimensions46.25 in H x 26.25 in W.
Disconnector Device Typefusible disconnect
DutyHeavy
Electrical Connectionlugs
EnclosureNEMA 3R/12
Enclosure TypeNEMA 3R/12
Environmental ConditionsRAINPROOF, SLEET/ICE PR.
Environmental DisclosureENVPEP1404026EN
Eu Rohs DirectiveCompliant
FinishGalvannealed/Painted
For Use WithClass R Fuse
Fuse Kit (Class R)Mfr. No. HRK4060
Fuse TypeH or K || R or J
Fusible / NonfusibleFusible
GTIN00785901451389
Halogen Content Perform.Halogen free plastic pa.
Height46.25 in, 46.2 in
Horsepower125 hp at 240 VAC, 50 h.
HP125 hp @ 240V AC
IP RatingNot Rated
ItemSingle Throw Safety Swi.
Item TypeFusible disconnect;Sing.
Line Rated Current400 A
Made in USAYes
ManufacturerSchneider Electric
MaterialSteel
Material of ConstructionGalvannealed Steel
Mercury FreeYes
Metallic / Non-MetallicMetallic
MountingSurface
Mounting typeSurface
Nema Degree Of Protecti.NEMA 3R/12 galvannealed.
NEMA Enclosure Type12, 3R
Net Weight77.1 kg
Number of Poles3
Number Of Poles3
Number of Wires3
Phase3, 3 phase
Product CertificationsUL listed file E2875
Product Or Component Ty.Single Throw Safety Swi.
Protection MethodFusible
Pvc FreeYes
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Rohs Exemption Informat.Yes
SeriesE5
Series Nameheavy duty
Short Circuit Current R.10 to 200
Short-Circuit Current10 kA H or K || 200 kA .
Size10.13 IN,26.25 IN,46.25.
Special Featuresheavy duty
StandardUL 98 LISTED
StandardsUL listed
Sub Brandheavy duty
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-22 to 104
Terminal TypeLug
Tightening Torque550-550 lbf.in (AWG 1/0.
TypeDusttight Driptight Hea.
UPC785901451389
Voltage240V AC
Voltage Rating250 V DC;240 V AC, 240 .
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wattage12, 3R
Width26.3 in, 26.25 in
Wiring Configuration3-wire (3P)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark15B91022966.471In StockSQUARE D BY SCHNEIDER ELECTRIC2966.47 @ 1
thumbzoomgordonelectricsupply.comH325AWK4235.01In Stock10SQUARE D4235.0 @ 1
thumbzoomRadwellH325AWK4450.01In StockSCHNEIDER ELECTRIC SQUARE D4450.0 @ 1
thumbzoomsustainablesupply.comC26824804889.811In StockSquare D155.04889.81 @ 1
thumbzoomstandardelectricsupply.com22854065167.41In StockSquare D (Schneider Electric)5167.4 @ 1
steinerelectric.com984225318.181In StockSquare D?5318.18 @ 1
thumbzoommayerelectric.comSQDH325AWK5541.041In StockSQUARE D169.625541.04 @ 1
thumbzoomcrescentelectric.com5563976359.141In StockSquare D6359.14 @ 1
thumbzoomZoroG24644276758.851In Stock26Square D155.06758.85 @ 1
thumbzoomRaptor SuppliesAH2PDD10669.00530151In StockSQUARE D10669.0053015 @ 1
