Square D HJA36060

B01MSN540G

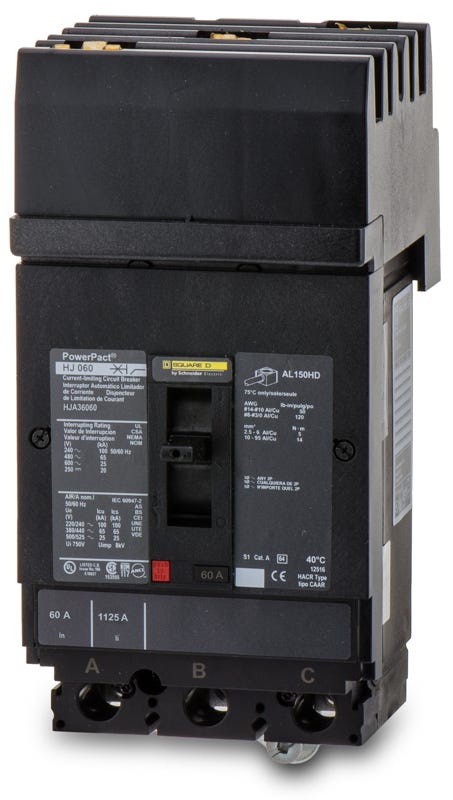

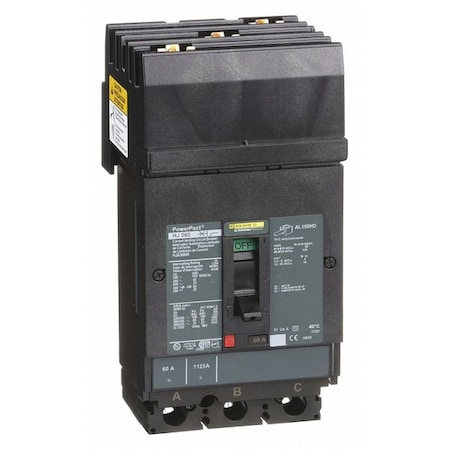

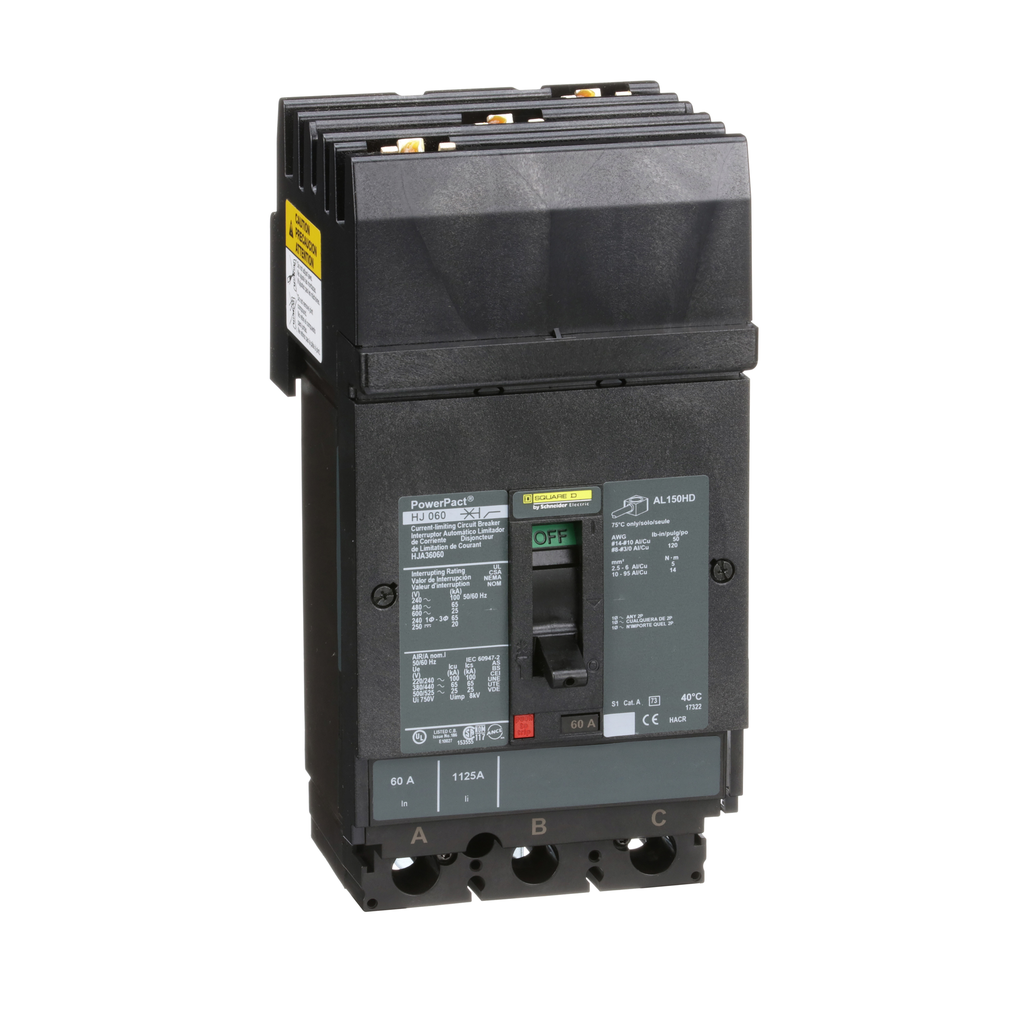

HJA36060 600VAC 250VDC 60A 3Pole 100kA Molded Case Thermal Magnetic Main Panelboard Circuit Breaker

HJA36060 600VAC 250VDC 60A 3Pole 100kA Molded Case Thermal Magnetic Main Panelboard Circuit Breakerzoom

Attributes

Key Value
[Ics] Rated Service Bre.100 kA 220/240 V AC 50/.
[Ue] Rated Operational .690 V AC 50/60 Hz IEC 6.
[Ui] Rated Insulation V.750 V IEC 60947-2
[Uimp] Rated Impulse Wi.8 kV IEC 60947-2
AC Voltage Rating600VAC
Ambient Air Temperature.-2-70 ?C
Ambient Air Temperature.-50-85 ?C
Amperage60A
Amperage Rating60, 60 A
Amps60
ApplicationPROVIDES OVERLOAD AND S.
ApprovalUL Listed, CSA Certified
ApprovalsCE, CSA, IEC, UL
Awg GaugeAWG 14...AWG 3/0 alumin.
AWG RangeAWG 14...AWG 3/0 alumin.
BrandSquare D, Square D by S.
Breaking Capacity100 kA 240 V AC 50/60 H.
Breaking Capacity CodeJ
California Proposition .DINP, which is known to.
Catalog NumberHJA36060
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1311006EN
ColorBlack
Color FamilyBlack
Communication InterfaceModbus || Ethernet
ConditionNew
ConnectionI-LINE CONNECTION (ON E.
Connection typeI-Line? Lug
Continuous Current Rati.80 %
Control Typetoggle
Country of OriginMX - Mexico, Mexico
Country of Origin (subj.Mexico
Current Rating60A, 60 A
Depth86 mm
Device Applicationdistribution
Dimensions4.12 in W x 4.36 in D x.
DisplayHJA36060 Circuit breake.
ECCNEAR99
Electrical ConnectionI-Line connection line .
Environmental DisclosureENVPEP1311006EN
Estimated Lead Time (in.4
Eu Rohs DirectiveCompliant
Family NamePowerPact H Family
Family SeriesSquare D Circuit Breake.
FrameH, H-FRAME
Frame TypeH Frame, H-FRAME
Frequency Rating50/60, 50/60 Hz, 50/60HZ
Gross Weight1 lb
GTIN785901600961
Gtin785901600961
Height163 mm, 4.5 in., 6.42
Interrupt Rating100 kA at 240 VAC/65 kA.
Ip Degree Of Protectionfront cover IP40 IEC 60.
ItemMolded Case Circuit Bre.
Item NumberHJA36060
Item TypeMolded Case Circuit Bre.
Length16 mm, 4.8 IN
Line Rated Current60-60 A
Local Signallingswitched off (OFF) 1 tr.
Made in USANo
Magnetic Hold Current800 A
Magnetic Tripping Curre.1450-1450 A
ManufacturerSquare D, Schneider Ele.
Manufacturer Part NumberHJA36060
Mercury FreeYes
Mounting Height4.5 in
Mounting ModeI-Line bracket)
Mounting Supportbracket
Mounting typePlug-On
Mounting TypePlug-On, I-Line
MpnHJA36060
Net Weight2.2 kg, 0 lbs
Network Frequency50/60 Hz
No. of Poles3-Pole
Number of Poles3
Number Of Slots2 auxiliary switch OF p.
Operating Temperature-13F AND 158F (-25 C AN.
Phase3, 3, 3 ph
Phase ConnectionABC
Poles3
Poles Description3P
Pollution Degree3 IEC 60947-1
Product CertificationsUL || CSA || NOM
Product NamePowerPact H
Product Or Component Ty.circuit breaker
Protected Poles Descrip.3t
Pvc FreeYes
Quality LabelsCE
Quantity Per Set1
RangePowerPact
Rated Voltage690V AC 50/60 Hz IEC 60.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesHJA, PowerPact H-Frame .
Special FeaturesI-LINE PLUG-ON
StandardUL || CSA || NEMA || NO.
StandardsUL || CSA || NEMA || NO.
Sub BrandPowerPact
Suitability For Isolati.yes IEC 60947-2
Sustainable Offer StatusGreen Premium product
Temperature Rating (Deg.-13 to 158, -13 to 158 .
Terminal IdentifierAL150HD
Terminals IncludedLine and Load
Tightening Torque5-5 N.m 2.5-6 mm? (AWG .
Torque5-5 N.m 2.5-6 mm? (AWG .
Trip Range800 A Hold, 1450 A, 800.
Trip Typethermal-magnetic, Therm.
Trip Unit Technologythermal-magnetic
TypeThermal/Magnetic, 80% R.
UNSPSC39121616
Upc785901600961
UPC785901600961
UPC Code785901600961
Utilisation Categorycategory A
Voltage600
Voltage Rating600 V, 600 VAC/250 VDC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width104 mm, 104 in., 4.09
Wire Size14 to 3/0, 14 to 3/0 AWG
Wire Stripping Length16 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
simplybreakers.comHJA36060899.991In StockSchneider Electric899.99 @ 1
thumbzoomsuperbreakers.comHJA36060915.01In StockSquare D915.0 @ 1
thumbzoomgordonelectricsupply.comHJA360601286.31In Stock10SQUARE D1286.3 @ 1
thumbzoomstandardelectricsupply.com11923761286.31In StockSquare D (Schneider Electric)1286.3 @ 1
thumbzoommayerelectric.comSQDHJA360601286.31In StockSQUARE D4.841286.3 @ 1
thumbzoomZoroG05679051286.31In Stock80Square D5.821286.3 @ 1
thumbzoomNewark20K02011286.311In StockSQUARE D BY SCHNEIDER ELECTRIC1286.31 @ 1
thumbzoomindustrialrefrigerationparts.comHJA360601291.361In StockSquare D2.01291.36 @ 1
thumbzoomGalcoHJA36060-SQD1402.21In StockSquare D1.01402.2 @ 1
steinerelectric.com3685441424.391In StockSquare D?1424.39 @ 1
us.rs-online.com709531901456.051In StockSquare D1456.05 @ 1
thumbzoomcrescentelectric.com1345582083.9312Square D by Schneider Electric2083.93 @ 1
thumbzoomsustainablesupply.comC30464832151.891In StockSquare D5.822151.89 @ 1
Graybar250450212226.5615Square D (Schneider Electric)2226.56 @ 1
thumbzoommostelectric.comHJA360602328.351In StockSQUARE D/TELEMECANIQUE2328.35 @ 1
