TELEMECANIQUE SENSORS XCSL761F3

B00CON9AH0

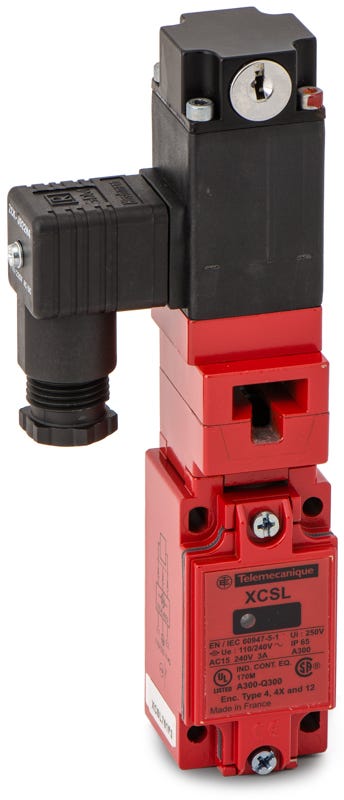

Telemecanique XCSL761F3 Safety Interlock, 3-Pole Contact Block 2NC+1NO (NO Staggered), Front/Left Orientation, Front-Side Override, 110V AC, 1/2 NPT Cable Gland, Metal Enclosure

Telemecanique XCSL761F3 Safety Interlock, 3-Pole Contact Block 2NC+1NO (NO Staggered), Front/Left Orientation, Front-Side Override, 110V AC, 1/2 NPT Cable Gland, Metal Enclosurezoom

Attributes

Key Value
[Uimp] Rated Impulse Wi.6 kV EN/IEC 60947-5-1
Actuator TypePanel Disconnect
Amperage Rating10A
Approval Agency-
BrandSchneider Electric
California Proposition .Diisononyl phthalate (D.
CategorySwitches
Circuit-
Component NameXCSL
Conduit Thread Size-
Connection Type1/2 in. NPT/Electromagn.
Country of OriginFR - France
Current Rating (Amps)-
DescriptionINTERLOCK SWITCH 300VAC.
Digi-Key Part Number4008-XCSL761F3-ND
ECCNEAR99
Electrical Shock Protec.class I EN/IEC 60536
Environmental DisclosureENVPEP110614EN
Eu Rohs DirectivePro-active compliance (.
Features-
Gtin785901537502
Head Typekey operated turret head
Holding Force-
Ingress Protection-
Load Factor1
ManufacturerSchneider Electric
Manufacturer Product Nu.XCSL761F3
Manufacturer Standard L.1 Weeks
MaterialMetal
Maximum Operating Rate10 cyc/mn for maximum d.
Mechanical Durability1000000 cycles
Mercury FreeYes
MfrSchneider Electric
MpnXCSL761F3
Must Operate-
Must Release-
Operating Temperature-
PackageBox
Positive Openingwith NC contact
Power Consumption In Va10 VA inrush || 10 VA s.
Product Or Component Ty.safety switch
Product StatusActive
Protection Typeovervoltage protection .
Protective TreatmentTC
Range Of ProductTelemecanique Safety sw.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Levelcan reach category 4 wi.
SeriesPreventa XCS, XCSL
Signalling Circuit Cons.7 mA
Supply Frequency50/60 Hz
Supply Voltage TypeAC/DC
Sustainable Offer StatusGreen Premium product
Termination StyleScrew Terminal
TypeKey Locking
UNSPSC39122213
Upc785901537502
Voltage - Supply-
Voltage Rating-
Warranty18 months

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsuperbreakers.comXCSL761F3318.371In StockSchneider Electric318.37 @ 1
thumbzoomgordonelectricsupply.comXCSL761F3505.01In Stock10SQUARE D505.0 @ 1
thumbzoommostelectric.comXCSL761F3559.21In StockSQUARE D/TELEMECANIQUE559.2 @ 1
thumbzoomDigi-Key17155300878.631In StockSchneider Electric878.63 @ 1
thumbzoommayerelectric.comSQDXCSL761F3986.261In StockSQUARE D986.26 @ 1
Graybar220875621031.82241In StockSquare D (Schneider Electric)1031.8224 @ 1
