TB Woods AL1101

mpnAL1101
brandname: TB WOOD'S
manufacturername: TB WOOD'S

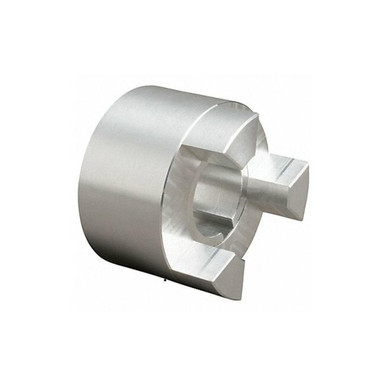

TB WOOD'S AL1101 L JAW HUB, FACTORY NEW!

TB WOOD

zoom

Brand: TB Woods
PartNumber: AL1101
Color: Aluminum
PackageQuantity: 1
Manufacturer: Tb Wood S
Label: Tb Wood S

Attributes

Key	Value
Assembled Coupling Leng.	4.23 in
Bore Dia.	1 in
Bore shape	Finish with keyway
Bore size	1 in
Bore size frac (in)	1.000000
Bore tolerance	+.0005 to +.0015
Bore tolerance (in)	+.0005 to +.0015
Brand	Tb Woods
Center	0.85
Coupling size	AL110
Current Stock	8
Dimension (in) (LTB)	2.50
Dimension (in) (OD)	3.32
Dimension (in) (S)	2.50
Family ID	2,008
Family name	Jaw coupling
Hub material	Aluminum
International Shipping	No
Item	Jaw Coupling Hub
Item - Jaw Coupling Hubs	Jaw Coupling Hub
Jaw type	Straight
Keyseat	1/4 x 1/8
Keyway	1/4 in x 1/8 in
Keyway Size	1/4" x 1/8"
Keyway Size Type	1/4 in x 1/8 in
Length-through-bore	1.69
Material	Aluminum
Material - Hubs	Aluminum
Material type	Aluminum
Max compatible bore size	1.625
Max parallel misalignme.	0.015
Max RPM	5,000
Max speed	5000
Min compatible bore size	0.625
Mpn	AL1101
O.D.	3.33
Outside Dia.	3.32 in
Overall length	4.23
Overall Length	4.24 in
Package Quantity	1
Product description	AL110 X 1
Product family	L-jaw hub
Setscrew length	0.625
Setscrew length frac (i.	0.625000
Setscrew size	3/8 16NC
Size	AL110
Size - Jaw Couplings	AL110
Size code	110
SKU	ZO-G2898332
SubCategory	Power Transmission
Unit Of Measure	English
UPC	698672039116

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	341537	57.69	2	In Stock		TB Woods		57.69 @ 2
	sustainablesupply.com	C1682122	60.71	1	In Stock		TB Wood's	1.45	60.71 @ 1
	Zoro	G2898332	61.15	1	11		Tb Woods	1.45	61.15 @ 1
	simsupply.com	ZO-G2898332	67.67	1	8		Tb Woods		67.67 @ 1
