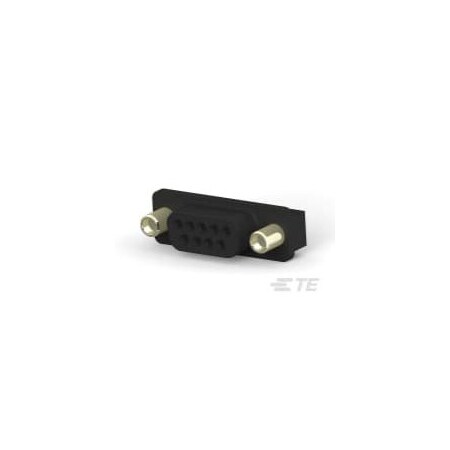

TE Connectivity 5745076-4

B00KSS7124

TE Connectivity Part Number 5745076-4

TE Connectivity Part Number 5745076-4zoom

Attributes

Key Value
Agency ApprovalsUL Recognized ; CSA Cer.
Alternate Mfr Part Numb.5745076-4
Alternate Part No.571-5745076-4
AngleStraight
ApplicationCommercial
Backset Spacing-
Base Product Number5745076
Body OrientationStraight
BrandTE Connectivity
CategoryConnectors, Interconnec.
Centerline (Pitch)2.74?mm?[?.108?in?]
Circuit ApplicationSignal
ColorBlack
CommentAll receptacles are pre.
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleD-Sub, Receptacle
Connector SystemBoard-to-Board
Connector TypeReceptacle, Female Sock.
Contact Base MaterialPhosphor Bronze
Contact Current Rating .6
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Form-
Contact MaterialPhosphor Bronze
Contact Mating Area Pla.Gold
Contact Mating Area Pla.30
Contact PlatingGold
Contact ShapeRound
Contact TypeSignal
Contact Underplating Ma.Nickel
Country of Origin (subj.Mexico
Current Rating (Amps)6A
DescriptionCONN D-SUB RCPT 9POS VE.
Detailed Description9 Position D-Sub Recept.
Dielectric MaterialPolyester
Digi-Key Part NumberA34022-ND
Features-
Female Screwlock Materi.Brass
Female Screwlock Platin.Nickel over Copper Flash
Flange FeatureMating Side, Female Scr.
GenderFemale
GroundedNo
Grounding ClipsWithout
Grounding IndentsWithout
Grounding StrapsWithout
Housing ColorBlack
Housing MaterialPolyester, Thermoplastic
Ingress Protection-
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.5745076-4
Manufacturer Product Nu.5745076-4
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
Mating Connector LockWith
Mating Connector Lock T.Female Screwlocks, Fixed
Mating HardwareScrewlocks
MfrTE Connectivity AMP Con.
Mounting Hardware4-40 UNC, Female Screw .
Mounting Hole Diameter3.05?mm?[?.12?in?]
Mounting TypeThrough Hole
Number of Contacts9
Number Of Contacts9
Number of Positions9
Number of Rows2
Operating Temperature-55?C ~ 105?C
Operating Temperature R.-55 ? 105??C?[?-67 ? 22.
PackageTube
Packaging MethodTube
Packaging Quantity17
Panel Mount FeatureWithout
PCB Contact Termination.Tin
PCB Mount OrientationVertical
PCB Mount RetentionWith
PCB Mount Retention TypeMounting Hole
PCB Mounting StyleThrough Hole
PCB Thickness (Recommen.1.57 ? 2.36?mm?[?.062 ?.
PlasticYes
Post Size.66?mm?[?.026?in?]
PreloadedYes
Primary TypeD-Sub
Product CategoryD-Sub Standard Connecto.
Product StatusActive
Product TypeConnector
ProfileStandard
Row-to-Row Spacing.112 in, 2.84 mm
SealableNo
SeriesHD-20 Series, AMPLIMITE.
Shell MaterialAll Plastic Shell
Shell Material, Finish-
Shell Size1
Shell Size, Connector L.1 (DE, E)
Shell TypeAll Plastic
ShieldedNo
StandardsUL94 V-0
TerminationSolder, Through Hole
Termination MethodSolder
Termination Post Length3.18?mm?[?.125?in?]
Termination StyleThrough Hole
TypePCB Socket
UL Flammability RatingUL 94V-0
Voltage Rating125V, 250 V, 250.0 V
Wire Gauge-
Wire Size20 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 5745076-43.57173186TE CONNECTIVITY/AMP BRAND3.57 @ 25
Onlinecomponents.com5745076-43.8215485TE Connectivity / AMP Brand3.82 @ 25
Avnet5745076-44.64111404TE Connectivity4.641 @ 25
thumbzoomZoroG6010431064.721725Te Connectivity4.72 @ 25
thumbzoomNewark99X66834.81208AMP - TE CONNECTIVITY4.8 @ 25
TE Connectivity5745076-45.0164711000TE Connectivity (TE)5.01647 @ 25
us.rs-online.com700417655.531725TE Connectivity5.53 @ 25
thumbzoomDigi-Key11237985.605611822TE Connectivity AMP Connectors5.6056 @ 25
thumbzoomRS Delivers782-96817.02125TE Connectivity7.02 @ 25
thumbzoomswatee.com5745076-47.811598TE Connectivity7.81 @ 25
AmazonTPB00DEDWQHA15.481255T-E Connectivity15.48 @ 25
AmazonSCB00DEDWQHA15.48125TE Connectivity0.00062515.48 @ 25
