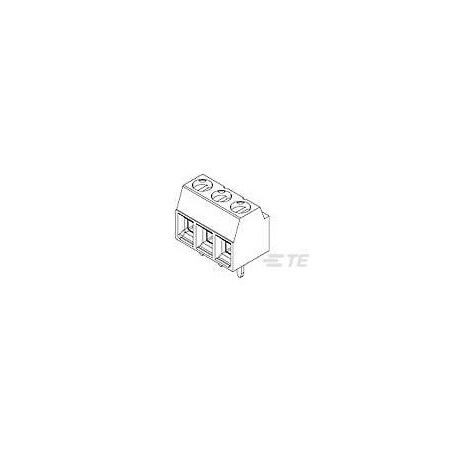

TE Connectivity 1776113-5

B00KSO3WQM

TE Connectivity Part Number 1776113-5

TE Connectivity Part Number 1776113-5zoom

Attributes

Key Value
Alternate Part No.571-1776113-5
Base Product Number1776113
Block TypePCB Mount
BrandTE Connectivity / Bucha.
CategoryConnectors, Interconnec.
Centerline (Pitch)3.81?mm?[?.1499?in?]
Circuit ApplicationPower & Signal
Clamp Material - PlatingCopper Alloy - Nickel P.
ColorBlack
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector StyleHeader
Connector SystemWire-to-Board
Contact Base MaterialCopper Alloy
Contact Current Rating .12
Contact MaterialCopper Alloy
Contact Material - Plat.Copper Alloy - Tin Plat.
Contact PlatingTin
Country of Origin (subj.Italy
Current12 A
Current Rating12 A
Current Rating (Max)12
DescriptionTERM BLK 5P SIDE ENT 3..
Detailed Description5 Position Wire to Boar.
Digi-Key Part NumberA97979-ND
Features-
Flammability RatingUL 94 V-0
Header TypeHeader Only
Housing MaterialPolyamide (PA), Nylon, .
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.1776113-5
Manufacturer Product Nu.1776113-5
Manufacturer Standard L.26 Weeks
Mating OrientationHorizontal with Board
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Levels1
Number of Positions5
Number of Rows1
Operating Temperature-40?C ~ 110?C
Operating Temperature R.-40 ? 105??C?[?-40 ? 22.
PackageBulk
Pitch3.81 mm, 0.150" (3.81mm)
Positions Per Level5
Product CategoryFixed Terminal Blocks
Product StatusActive
Screw Material - PlatingCopper Alloy - Nickel P.
Screw Thread-
SeriesBuchanan
Torque - Screw-
Voltage150 V, 150
Voltage Rating150 V
Wire Entry AngleSide
Wire Gauge16-28 AWG
Wire Gauge Max16
Wire Gauge Min28
Wire Gauge Range28-16
Wire OrientationSide
Wire Size28 ? 16, .08 ? 1.4
Wire TerminationScrew - Rising Cage Cla.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1776113-52.311200137TE CONNECTIVITY/AMP BRAND2.31 @ 1200
thumbzoomZoroG4010370773.0660032Te Connectivity3.06 @ 600
thumbzoomDigi-Key18268423.681404TE Connectivity AMP Connectors3.68 @ 1
Newark95Y90083.831137AMP - TE CONNECTIVITY3.83 @ 1
Onlinecomponents.com1776113-54.021419TE Connectivity / AMP Brand4.02 @ 1
thumbzoomswatee.com1776113-54.22175TE Connectivity4.22 @ 1
TE Connectivity1776113-55.09981581TE Connectivity (TE)5.0998 @ 1
