TE Connectivity 3-644457-5

B00KSPZPHA

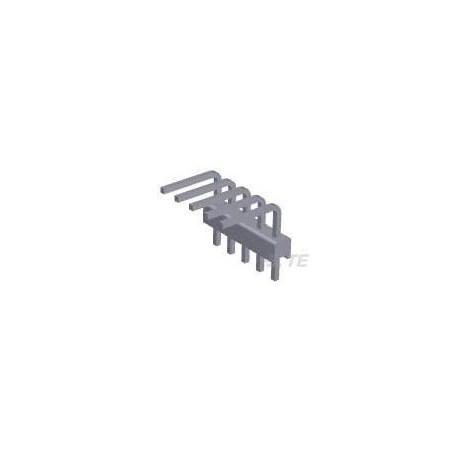

TE Connectivity Part Number 3-644457-5

TE Connectivity Part Number 3-644457-5zoom

Attributes

Key Value
Alternate Part No.571-3-644457-5
ApplicationWire-to-Board, Signal, .
ApplicationsGeneral Purpose
Base Product Number644457
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connection MaterialCopper Alloy
Connection TypeRight Angle, Through Ho.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.150.0?in (3.81?m)
Contact Finish Thicknes.150.0?in (3.81?m)
Contact GenderPin (Male)
Contact Length - Mating0.260" (6.60mm)
Contact Length - Post0.110" (2.79mm)
Contact MaterialCopper Alloy
Contact PlatingTin
Contact Plating MaterialNickel
Contact ShapeSquare
Contact TypeMale Pin
Current Rating5 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER R/A 5POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30887-ND
Fastening Type-
Features-, Unshrouded Header
Flammability RatingUL 94 V-0
Housing MaterialPolyester
Ingress Protection-
Insulation ColorNatural
Insulation Height0.100" (2.54mm)
Insulation MaterialThermoplastic
ItemConnector
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.3-644457-5
Manufacturer Product Nu.3-644457-5
Manufacturer Standard L.24 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Max. Temp.221 Degrees F
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeBoard Mount; Right Angl.
Number of Positions5
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
Overall Length0.588 in
PackageBulk
Package Quantity1
Pin Length (In.)0.26 in
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SeriesMTA-100
ShroudingUnshrouded
StandardsUL, CSA Listed
StyleBoard to Cable/Wire
Terminal TypePin
TerminationSolder
Termination StyleThrough Hole
TypeUnshrouded
Voltage Rating250 V, 250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics24025920.27612000434TE Connectivity0.276 @ 12000
WaldomTE CONNECTIVITY AMP BRAND 3-644457-50.29620011904TE CONNECTIVITY/AMP BRAND0.296 @ 200
thumbzoomDigi-Key6983750.4720011904TE Connectivity AMP Connectors0.47 @ 200
Onlinecomponents.com3-644457-50.7317195TE Connectivity / AMP Brand0.73 @ 1
thumbzoomswatee.com3-644457-50.7611473TE Connectivity0.76 @ 1
Newark76AC62810.78111688AMP - TE CONNECTIVITY0.78 @ 1
thumbzoomZoroG30092802582.01In StockTe Connectivity82.0 @ 1
