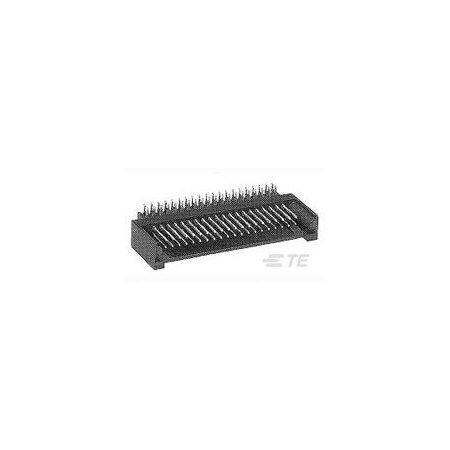

TE Connectivity 102589-4

mpn102589-4
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 102589-4

Brand: TE Connectivity
PartNumber: 102589-4
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Application	Signal
Applications	-
Base Product Number	102589
Category	Connectors, Interconnec.
Color	Black
Connection Material	Phosphor Bronze
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Bright Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	0.320" (8.13mm)
Contact Length - Post	0.125" (3.18mm)
Contact Material	Phosphor Bronze
Contact Plating Thickne.	0.381 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	3 A
Current Rating (Amps)	3A
Description	CONN HEADER R/A 30POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A111669-ND
Fastening Type	Push-Pull
Features	-, Shrouded
Flammability Rating	UL 94 V-0
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.319" (8.10mm)
Insulation Material	Polyester
Item	PCB Mount Header
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	102589-4
Manufacturer Standard L.	73 Weeks
Mated Stacking Heights	-
Material	Thermoplastic
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Max. Voltage	250V AC
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole, Right Ang.
Number of Contacts	30
Number of Positions	30
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	0.100" (2.54mm)
Series	AMPMODU, AMPMODU Mod II
Shrouding	Shrouded - 3 Wall
Standards	CSA LR7189; UL E28476
Style	Board to Board or Cable
Terminal Finish	Tin-Lead
Terminal Type	Through Hole - Solder
Termination	Solder
Voltage Rating	250VAC

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Verical	102589-4	6.13	10	30	TE Connectivity / AMP	6.13 @ 10
Hotenda	H1467655	6.86	1	5	TE Connectivity AMP Connectors	6.86 @ 5
Digi-Key	291520	8.59292	480	5	TE Connectivity AMP Connectors	8.59292 @ 480
Waldom	TE CONNECTIVITY AMP BRAND 102589-4	11.13	480	30	TE CONNECTIVITY/AMP BRAND	11.13 @ 480
Newark	10H6252	13.26	480	5	AMP - TE CONNECTIVITY	13.26 @ 250
Zoro	G100937005	104.9	1	5	Te Connectivity	104.9 @ 5
