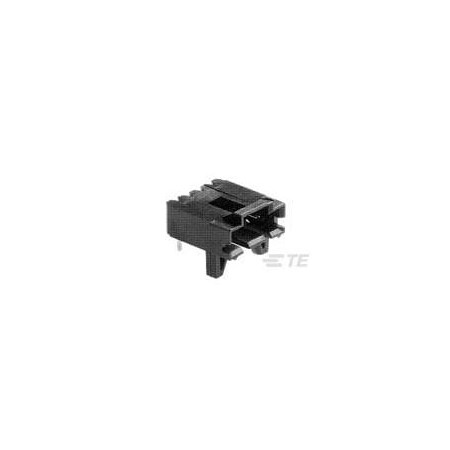

TE Connectivity 6-103673-5

mpn6-103673-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 6-103673-5

Brand: TE Connectivity
PartNumber: 6-103673-5
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	103673
Body Orientation	Right Angle
Brand	TE Connectivity
Category	Connectors, Interconnec.
Color	Black
Connection Material	Brass
Connector System	Wire to Board
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish	Gold Plated
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Brass
Contact Plating	Gold
Contact Plating Thickne.	15 ?in
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	3 A, 3.0A
Current Rating (Amps)	3A
Description	CONN HEADER R/A 16POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	6-103673-5-ND
Fastening Type	Latch Holder
Features	Shrouded, Board Lock, K.
Flammability Rating	UL 94 V-0
For Use With	Receptacle Housing Asse.
Height	13.59 mm
Hole Center to Center	2.54 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Insulation Material	Thermoplastic
Item	PCB Mount Header
Length	43.18 mm
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	6-103673-5
Manufacturer Standard L.	18 Weeks
Mated Stacking Heights	-
Material	Thermoplastic
Material Flammability R.	UL94 V-0
Max. Temp.	105?C
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole, Through H.
Number of Contacts	16
Number Of Contacts	16
Number of Positions	16
Number of Positions Loa.	All
Number Of Rows	1
Number of Rows	1
Operating Temperature	-65?C ~ 105?C
Overall Contact Length	-
Package	Tube
Package Quantity	1
Pitch	2.54mm
Pitch - Mating	0.100" (2.54mm)
Product Status	Active
Row Spacing - Mating	-
Series	AMPMODU MTE
Shrouded/Unshrouded	Shrouded
Shrouding	Shrouded - 4 Wall
Standards	CSA LR7189; UL E28476
Style	Board to Board or Cable
Terminal Finish	Matte Tin Plated
Terminal Type	Insulation Displacement.
Termination	Solder
Termination Method	Solder
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
RS Delivers	841-1203	2.6868	5	44		TE Connectivity	2.6868 @ 5
Waldom	TE CONNECTIVITY AMP BRAND 6-103673-5	2.96	24	417		TE CONNECTIVITY/AMP BRAND	2.96 @ 24
us.rs-online.com	72056284	3.68	864	27		TE Connectivity	3.68 @ 864
Newark	22R8606	4.38	864	22		TE CONNECTIVITY	4.38 @ 500
Digi-Key	2286173	4.44	24	417		TE Connectivity AMP Connectors	4.44 @ 24
AmazonTP	B07KWH37ZP	39.53	1	44	1	TE Connectivity / AMP Brand	39.53 @ 1
Zoro	G000939352	90.0	1	22		Te Connectivity	90.0 @ 1
