TE Connectivity / AMP 6-103673-6

B00O0IOS3S

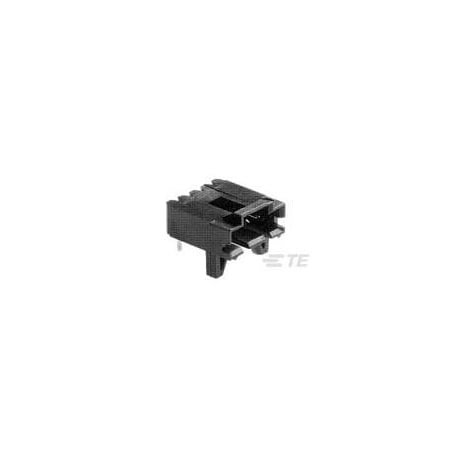

TE Connectivity / AMP Brand 6-103673-6 Connector Headers and PCB Receptacles

TE Connectivity / AMP Brand 6-103673-6 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.571-6-103673-6
ApplicationsAutomotive, General Pur.
Base Product Number103673
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialBrass
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.Mexico
Current Rating3 A
Current Rating (Amps)3A
Fastening TypeLatch Holder
FeaturesBoard Lock, Keying Slot
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.200" (5.08mm)
Insulation MaterialThermoplastic
Insulation Resistance5000 MOhms
Latching TypeLatched
ManufacturerTE Connectivity
Manufacturer Part No.6-103673-6
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Positions17
Number of Positions Loa.All
Number of Rows1
Operating Temperature-65?C ~ 105?C
Operating Temperature R.- 65 C to + 105 C
Overall Contact Length-
PackageBulk
PackagingTube
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating-
SeriesAMPMODU MTE
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Termination StyleThrough Hole
TradenameAMPMODU
TypeShrouded
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com720560392.8479235TE Connectivity2.84 @ 792
thumbzoomswatee.com6-103673-63.131259TE Connectivity3.13 @ 1
Newark96Y30443.411129AMP - TE CONNECTIVITY3.41 @ 11
Onlinecomponents.com6-103673-64.16111TE Connectivity / AMP Brand4.16 @ 1
Digi-Key11652754.37135TE Connectivity AMP Connectors4.37 @ 1
thumbzoomZoroG6009392644.3739635Te Connectivity4.37 @ 396
