SILICONIX (VISHAY) IRFBC40ASTRLPBF

B076FCGGMQ

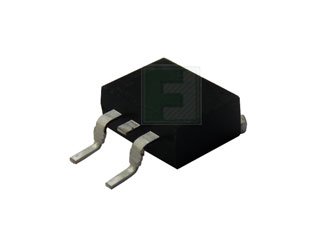

SILICONIX (VISHAY) IRFBC40ASTRLPBF Single N-Channel 600 V 1.2 Ohm Surface Mount Power Mosfet - TO-263 - 800 item(s)

SILICONIX (VISHAY) IRFBC40ASTRLPBF Single N-Channel 600 V 1.2 Ohm Surface Mount Power Mosfet - TO-263 - 800 item(s)zoom

Attributes

Key Value
Base Product NumberIRFBC40
CategoryDiscrete Semiconductor .
Circuit TypeN-Channel
Current - Continuous Dr.6.2A (Tc)
Drain Current Id(rms)6.2 A
Drain Source Voltage Vds600 VDC
Drain to Source Voltage.600 V
Drive Voltage (Max Rds .10V
Fall Time tf18 ns
Family SeriesVishay Transistors, D2P.
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) .42 nC @ 10 V
Gate Leakage Current0.1 ?A
Gate Source Voltage Vgss30 VDC
Gross Weight0 lbs
Input Capacitance (Ciss.1036 pF @ 25 V
Item NumberIRFBC40ASTRLPBF
ManufacturerVishay
Manufacturer Part NumberIRFBC40ASTRLPBF
MfrVishay Siliconix
Mounting TypeSurface Mount
Net Weight0 lbs
Operating Temperature-55?C ~ 150?C (TJ)
PackageTape & Reel (TR), TO-263
Package / CaseTO-263-3, D?Pak (2 Lead.
Power Dissipation (Max)125W (Tc)
Product SeriesD2PAK
Product StatusActive
Rds On (Max) @ Id, Vgs1.2Ohm @ 3.7A, 10V
rDS(on)1,200 mOhm
Rise Time tr23 ns
RoHSYes
Series-
Supplier Device PackageD?PAK (TO-263)
TechnologyMOSFET (Metal Oxide)
Trr431 ns
Turn Off Delay Time31 ns
Turn On Delay Time13 ns
Typ. Vgs(th)3 VDC
Vgs (Max)?30V
Vgs(th) (Max) @ Id4V @ 250?A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoIRFBC40ASTRLPBF-VISH2.1680025Vishay2.16 @ 800
Newark84M37002.5180025VISHAY2.51 @ 800
Digi-Key26219204.8864125Vishay Siliconix4.8864 @ 25
Future Electronics41179726.468125Vishay6.468 @ 25
