WEG 00109ET3E182T-W22

B007ICMGLE

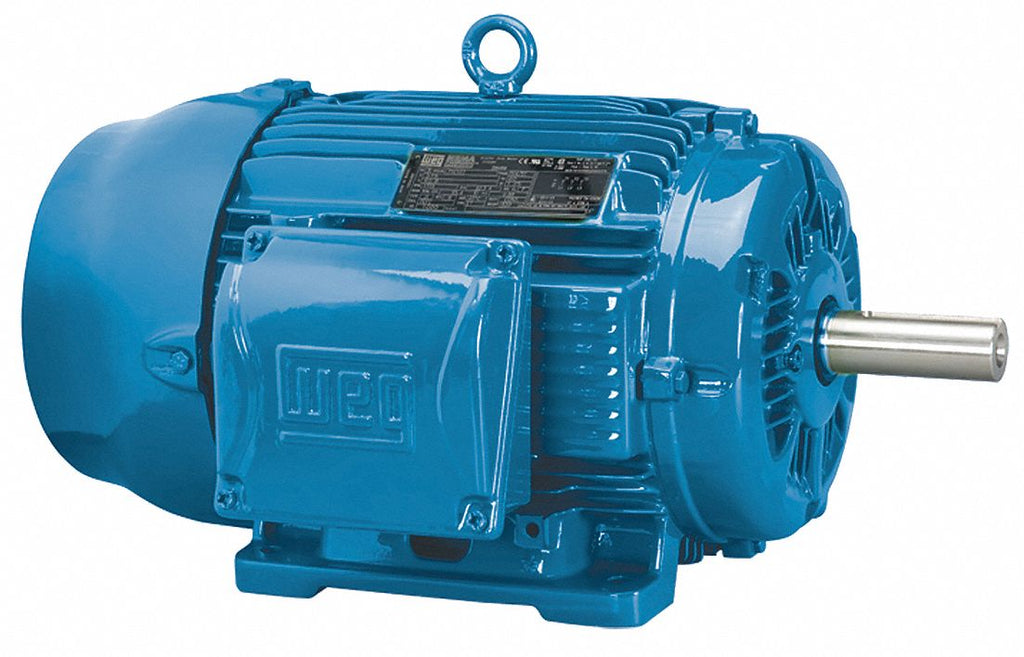

Motor, 3 Ph, 1 HP, 875, 208-230/460, Eff 78.5

Motor, 3 Ph, 1 HP, 875, 208-230/460, Eff 78.5zoom

Attributes

Key Value
Amperage Rating5.09 to 4.6/2.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 1HP 8P 182/4T WFF2
Dimensions15.86 in L
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency %78.5 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight87.00
Family SeriesWEG Electric Motors
FL Amps2.30
FL Efficiency78.5
FlangesWithout Flanges
Frame182/4T, 182T, 184T
Frame RemarksFooted
Frequency60 Hz, 60/50 Hz
Frequency Rating60 Hz
Full Load Amps4.6/2.3
Full Load Amps @ 50Hz2.52, 2.56, 2.61
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
HP @ 50Hz1
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00109ET3E182T-W22
Length Less Shaft13 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00109ET3E182T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00109ET3E182T-W22
Model12438228
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM875
NEMA DesignB
NEMA Frame182T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency78.5 %
Nominal Voltage208 VAC
Number of Poles8
Number of Speeds1
Output Rating1 hp
Overall Length15 7/8 in
Part Number00109ET3E182T-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM900 RPM, 900, 875
RPM Range0-1,000
Service Factor1.25
Shaft Dia.1 1/8 in
Shaft Length2 3/4 in
Shaft Size1-1/8 in Dia x 2-3/4 in.
Speed (RPM)900
StandardNEMA MG-1
StandardsUL, CSA, CE, NOM, CE, C.
Supplier:WEG ELECTRIC CORP
Synchronous Speed900 RPM
Terminal BoxLeft position
UPC:7909158032884
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight86.360000, 81.5 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00109ET3E182T-W22645.01In StockWEG81.5645.0 @ 1
AmazonTPB007ICMGLE739.641In Stock2WEG739.64 @ 1
AmazonUNKB007ICMGLE739.641In StockWEG739.64 @ 1
thumbzoomWalker Industrial00109ET3E182T-W22782.251In Stock17WEG782.25 @ 1
thumbzoommotorsandcontrol.com00109ET3E182T-W22782.251In StockWEG Electric87.0782.25 @ 1
thumbzoomZoroG2972575798.99115Weg80.0798.99 @ 1
kscdirect.comWEG 00109ET3E182T-W22801.01In StockWEG ELECTRIC CORP801.0 @ 1
thumbzoomMRO Supply1312114823.711In StockWEG823.71 @ 1
grainger.caWWG6AHZ5849.222052241In StockWEG80.0849.22205224 @ 1
thumbzoomGalco00109ET3E182T-W22-WEG856.651In StockWEG Electric856.65 @ 1
thumbzoomDealers Electric00109ET3E182T-W22857.081In StockWeg87.0857.08 @ 1
thumbzoomindustrialrefrigerationparts.com00109ET3E182T-W22899.671In StockWEG86.36899.67 @ 1
thumbzoomRadwell00109ET3E182T-W22940.01In StockWEG940.0 @ 1
thumbzoomvfds.com00109ET3E182T-W221043.01In StockWEG1043.0 @ 1
thumbzoomsustainablesupply.comC15664701093.471In StockWEG80.01093.47 @ 1
thumbzoomPurvis00109ET3E182T-W221157.741In StockWEG1157.74 @ 1
thumbzoomRaptor SuppliesAE7TTT1274.5164511In StockWEG1274.516451 @ 1
thumbzoomNational Supply NetworkB8733421322.791In StockWeg Electric Motors1322.79 @ 1
