WEG CFW700B28P0T2DBN1

B007PB4HVA

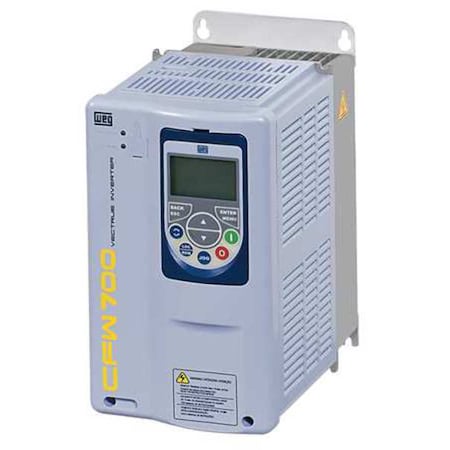

WEG CFW700B28P0T2DBN1 CFW700 Series Variable Frequency Drive, 10 HP, 28 A, 230 V, 3 Phase Input, 3 Phase Output

WEG CFW700B28P0T2DBN1 CFW700 Series Variable Frequency Drive, 10 HP, 28 A, 230 V, 3 Phase Input, 3 Phase Outputzoom

Attributes

Key Value
Accepts Input Control S.Yes
Adjustable Acceleration.0 to 999 sec.
Adjustable Deceleration.0 to 999 sec.
Amps (Constant Torque R.24 A
Amps (Max Load)28
Amps (Variable Torque R.28 A
Braking Resistor Includ.1
Braking TypeDynamic Braking
Closed LoopOptional
ConditionNew
Control MethodLinear and Adjustable V.
Control TypeKeypad/Remote
Country of Origin (subj.Brazil
Depth8.94"
Description:DRIVE CFW700B28P0T2DBN1
Digital ReadoutYes
Dimensions13.9 x 7.5 x 9.0
Display TypeLCD
DisplaysLCD
Drive SeriesCFW700
Dynamic BrakingYes
Dynamic Braking TransIncluded
EnclosureB, NEMA 1
Estimated Weight24.10
Family SeriesWEG Electric Drives, CF.
For Use With3-Phase Induction Motor
FrameB
Frame SizeB
Gross Weight0 lbs
Height13.82"
HP10
HP (Constant Torque Rat.10 hp
HP (Max)10
HP (Variable Torque Rat.10 hp
Input Frequency50/60 Hz
Input Phase3
Input Phase AC3
Input Range Voltage (AC)200-240 VAC
Input Voltage240VAC, 200-240V, 230
ItemVariable Frequency Drive
Item ConditionFactory New
Item NumberCFW700B28P0T2DBN1
Key Pad LockoutYes
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part NumberCFW700B28P0T2DBN1
Max Frequency300 Hz
Max. HP10
Max. Output Amps28
MFG Part #:CFW700B28P0T2DBN1
ModelCFW700 Series (T2), CFW.
Motor Control-Max LevelClosed Loop Vector (Sen.
MountingPanel
Net Weight22.9 lbs
Operator ControlsKeypad Included
Output Frequency Range0 to 300 Hz
Output Phase3
Output Phase AC3
Output Voltage240VAC, 200-240V, 230
Part NumberCFW700B28P0T2DBN1
Product SeriesCFW700
ProtectionOvercurrent/Short Circu.
StandardsUL, cUL, CE
Start/Stop ControlProgrammable
Starting Torque100%
Supplier:WEG ELECTRIC CORP
Torque @ 1 Hz100%
UPC:7891327785991
Weight22.300000
Width7.45"
With Bypass / No BypassNo Bypass
With Line Contactor / N.No Line Contactor

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG38944051093.751In Stock10Weg1093.75 @ 1
thumbzoomWalker IndustrialCFW700B28P0T2DBN11122.511In Stock17WEG1122.51 @ 1
thumbzoomGalcoCFW700B28P0T2DBN1-WEG1126.911In StockWEG Electric22.91126.91 @ 1
thumbzoomDealers ElectricCFW700B28P0T2DBN11140.051In StockWeg24.11140.05 @ 1
thumbzoommotorsandcontrol.comCFW700B28P0T2DBN11408.661In StockWEG Electric24.11408.66 @ 1
thumbzoomindustrialrefrigerationparts.comCFW700B28P0T2DBN11594.221In StockWEG22.31594.22 @ 1
kscdirect.comWEG CFW700B28P0T2DBN11638.891In StockWEG ELECTRIC CORP1638.89 @ 1
thumbzoomRadwellCFW700B28P0T2DBN12000.01In StockWEG2000.0 @ 1
