WEG .5036ES3E56C-S

B019TUVT42

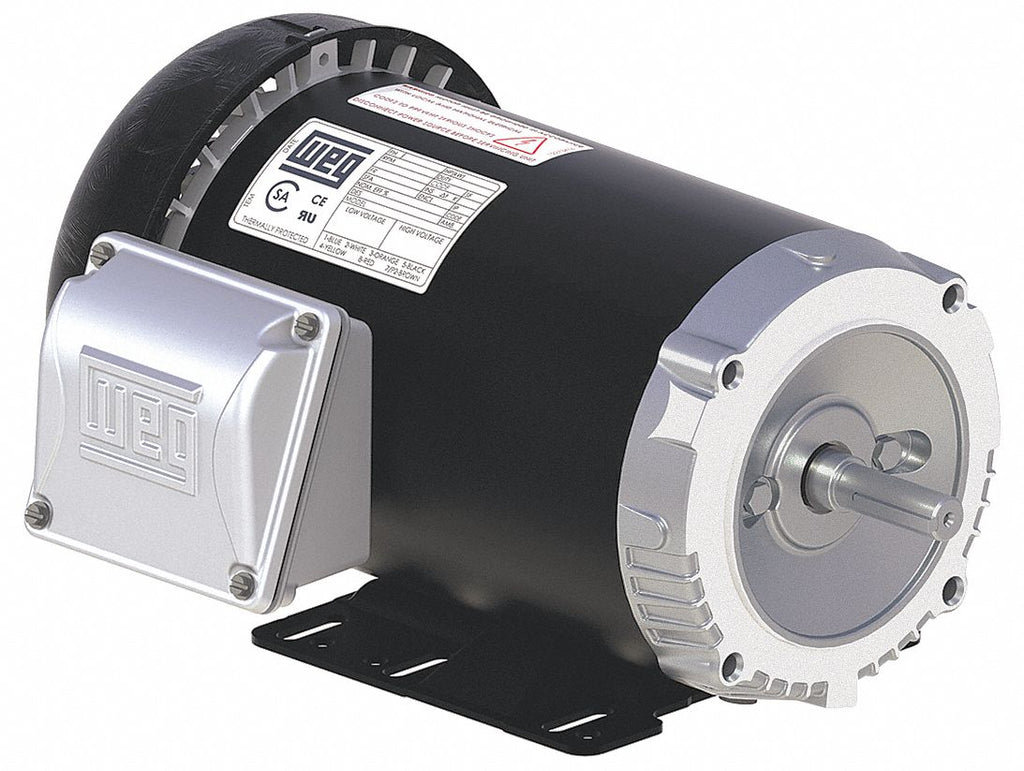

WEG .5036ES3E56C-S TEFC Standard Efficiency Fractional Electric Motor, 1/2 HP, 3-Phase, 3500 RPM, 208-230/460 V, 50/60 Hz, Frame 56C

WEG .5036ES3E56C-S TEFC Standard Efficiency Fractional Electric Motor, 1/2 HP, 3-Phase, 3500 RPM, 208-230/460 V, 50/60 Hz, Frame 56Czoom

Attributes

Key Value
Amperage Rating1.86 to 1.69/0.843 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
Capacitor RequiredNo
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 0.5HP 2P 56C WCF2
Dimensions11.535 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %68 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight24.00
Family SeriesWEG Electric Motors
FL Amps0.84
FL Efficiency68.0
FlangesFlange C
Frame56C
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1.90-1.70/0.84
Full Load Amps @ 50Hz1.65/0.88, 1.78/0.89
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
HP0.5, 1/2, .50
HP @ 50Hz1/2
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number.5036ES3E56C-S
Length Less Shaft9 11/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number.5036ES3E56C-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:.5036ES3E56C-S
Model12805241
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM3,500
NEMA Frame56C
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency68 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating15 HP
Overall Length11 9/16 in
Part Number.5036ES3E56C-S
Phase3, 3 ph, Three
Product TypeGeneral Purpose
Replaces.5036ES3E56C-S
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
RPM @ 50Hz2,865
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft Size5/8 in Dia x 1-7/8 in L
Speed3500 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7909522415824
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Voltage @ 50Hz190/380V AC, 220/415V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight23.030000, 19.7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com.5036ES3E56C-S155.01In StockWEG19.7155.0 @ 1
kscdirect.comWEG .5036ES3E56C-S211.51In StockWEG ELECTRIC CORP211.5 @ 1
thumbzoomWalker Industrial5036ES3E56C-S211.51In Stock17WEG211.5 @ 1
thumbzoommotorsandcontrol.com.5036ES3E56C-S211.51In StockWEG Electric24.0211.5 @ 1
thumbzoomZoroG9123572211.59125Weg21.5211.59 @ 1
thumbzoomMRO Supply2519242222.711In StockWEG222.71 @ 1
thumbzoomDealers Electric.5036ES3E56C-S243.271In StockWeg25.0243.27 @ 1
thumbzoomindustrialrefrigerationparts.com.5036ES3E56C-S246.731In StockWEG23.03246.73 @ 1
thumbzoomGalco.5036ES3E56C-S-WEG251.751In StockWEG Electric251.75 @ 1
thumbzoomRadwell.5036ES3E56C-S260.01In StockWEG260.0 @ 1
thumbzoomsustainablesupply.comC1555553319.951In StockWEG21.5319.95 @ 1
thumbzoomMisumi USA.5036ES3E56C-S338.41In StockWEG338.4 @ 1
thumbzoomRaptor SuppliesAG4ZPD394.54745851In StockWEG394.5474585 @ 1
