WIDIA 3850929

B01M7VF3QK

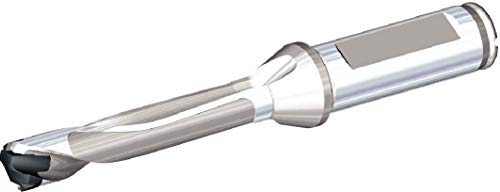

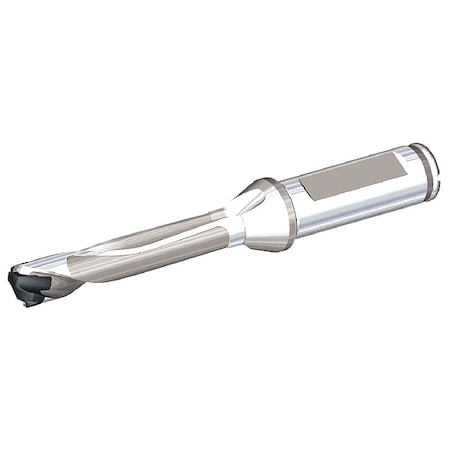

WIDIA TDM115R5SCF16M TOP Drill M1 Modular Drill Body, 11.5 mm Cutting Diameter, 5xD, 16 mm Flanged Shank, W17 Seat Size

WIDIA TDM115R5SCF16M TOP Drill M1 Modular Drill Body, 11.5 mm Cutting Diameter, 5xD, 16 mm Flanged Shank, W17 Seat Sizezoom

Attributes

Key Value
ANSI CodeTDM115R5SCF16M
Body Length48.00mm
Coolant FedCoolant Through
Country of Origin (subj.Germany
Cutting DirectionRight Hand
Depth x Dia. Ratio5xD
Diameter16.00mm
Flanged ShankYes
Flute Length75.00mm
Flute TypeSpiral
IncludesInsert Wrench
Insert StyleTDM1
ISO NumberTDM115R5SCF16M
ItemExchangeable Drill Tip
Material - MachiningHigh Speed Steel
Max. Dia.11.9900mm
Max. Drill Dia.60.00mm
Max. Drilling Depth11.99mm
Min. Drill Dia.11.50mm
Overall Length128.50mm
Seat SizeW17
Shank Dia.16.00mm
Shank Dia. Measurement .Metric
Shank Length48.00mm
Shank Type - MachiningStraight with Three Fla.
Spiral DirectionRight Hand
Toolholder StyleTDM

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3921819310.01In Stock26Widia0.4310.0 @ 1
