- mpnE24MWNS, 30:1, 56C
- brandname: WINSMITH
- manufacturername: WINSMITH

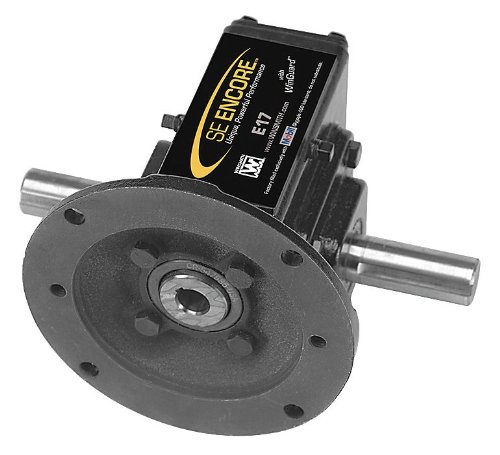

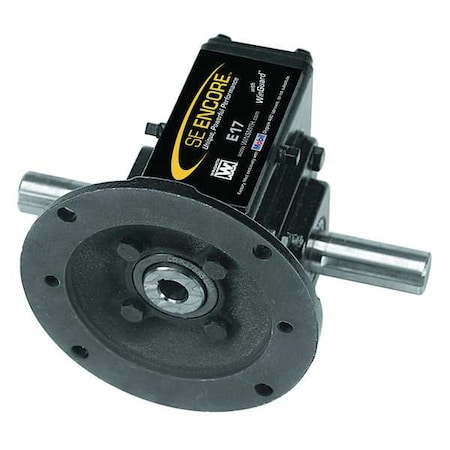

Speed Reducer, C-Face, 56C, 30:1
- Brand: Winsmith
- PartNumber: E24MWNS, 30:1, 56C
- Model: E24MWNS, 30:1, 56C
- PackageQuantity: 1
- Manufacturer: WINSMITH
- Label: WINSMITH
Attributes
| Key | Value |
|---|
| Bore Dia. | 5/8 in, 1-1/4" |
| Dimension A | 3.13 in, 3.130" |
| Dimension B | 5.38 in, 5.380" |
| Dimension C | 2.375", 2.375 in |
| Dimension D | 5.250", 5.25 in |
| Dimension F | 2.19 in, 2.19" |
| Dimension G | 0.63", 0.63 in |
| Dimension H | 1/2-13 |
| Dimension L | 4.50", 4.5 in |
| Duty | Washdown |
| Finish | Black Epoxy Coating Sys. |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1725, 1,725 RPM |
| Input Shaft Diameter | 5/8 in |
| Item | Speed Reducer |
| Lubrication | Mobil Glygoyle(R) 460 |
| Max. Input HP | 1 |
| Max. Output Torque | 938 in.-lb. |
| Mounting | Universal |
| Nominal Output RPM | 58, 58 RPM |
| Nominal Ratio | 30:1 |
| Number of Stages | 1 |
| Output Shaft Dia. | 1 1/4 in, 1-1/4" |
| Output Shaft Diameter | 1 1/4 in |
| Output Shaft Height | 2-7/8", 2 7/8 in |
| Output Shaft Length | 2 7/8 in |
| Output Torque @ 1 HP | 938 in-lbs |
| Output Torque @ 1/2 HP | 469 in.-lb. |
| Output Torque @ 3/4 HP | 703 in-lbs |
| Overhung Load | 1025 lb., 1,025 lb |
| Reducer Model No. | E24MWNS |
| Rotation | Reversible, CW/CCW |
| Shaft Orientation | Right Angle |
| Single/Double Output/Un. | Double Output |
| Speed Reducer Type | C-Face |
| Worm Center Distance | 2.38" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WWG4GAU2 | 792.45338048 | 1 | In Stock | | WINSMITH | 41.25 | 792.45338048 @ 1 |
 | Zoro | G0822595 | 853.99 | 1 | In Stock | | Winsmith | 41.25 | 853.99 @ 1 |
| AmazonTP | B007IBKC5M | 884.07 | 1 | In Stock | 5 | WINSMITH | | 884.07 @ 1 |
