Scotchlok MNGI14-250DFIK

mpnMNGI14-250DFIK
brandname: 3-M
manufacturername: 3-M

3M (MNGI14-250DFIK) Female Disconnect, Nylon Fully Insulated w/Insulation Grip Butted Seam w/Interlocking Barrel MNGI14-250DFIK

Brand: Scotchlok
PartNumber: MNGI14-250DFIK
PackageQuantity: 1000
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MNGI14-250DFIK
Barrel Inside Dia.	0.08 in
Barrel Inside Diameter	0.08 in
Barrel Length	0.25 in
Barrel Length Type	Interlocking Barrel
Barrel Outside Diameter	0.145 in
Barrel Size	Standard
Barrel Style	Interlocking
Base Product Number	MNGI14
Brand	3M
Category	Electrical Insulating T.
Color	Blue, Red
Connection Material	Tin-Plated Brass
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Country of Origin	USA
Country of Origin (subj.	United States
Features	-
For Wire Size	14 AWG, 16 AWG
Gender	Female
Inside Diameter	0.08 in
Insulation	Fully Insulated, Full
Insulation Color	Blue
Insulation Coverage	Full Coverage
Insulation Diameter	0.145" (3.68mm)
Insulation Material	Nylon
Insulation Type	Nylon
Item	Female Disconnect

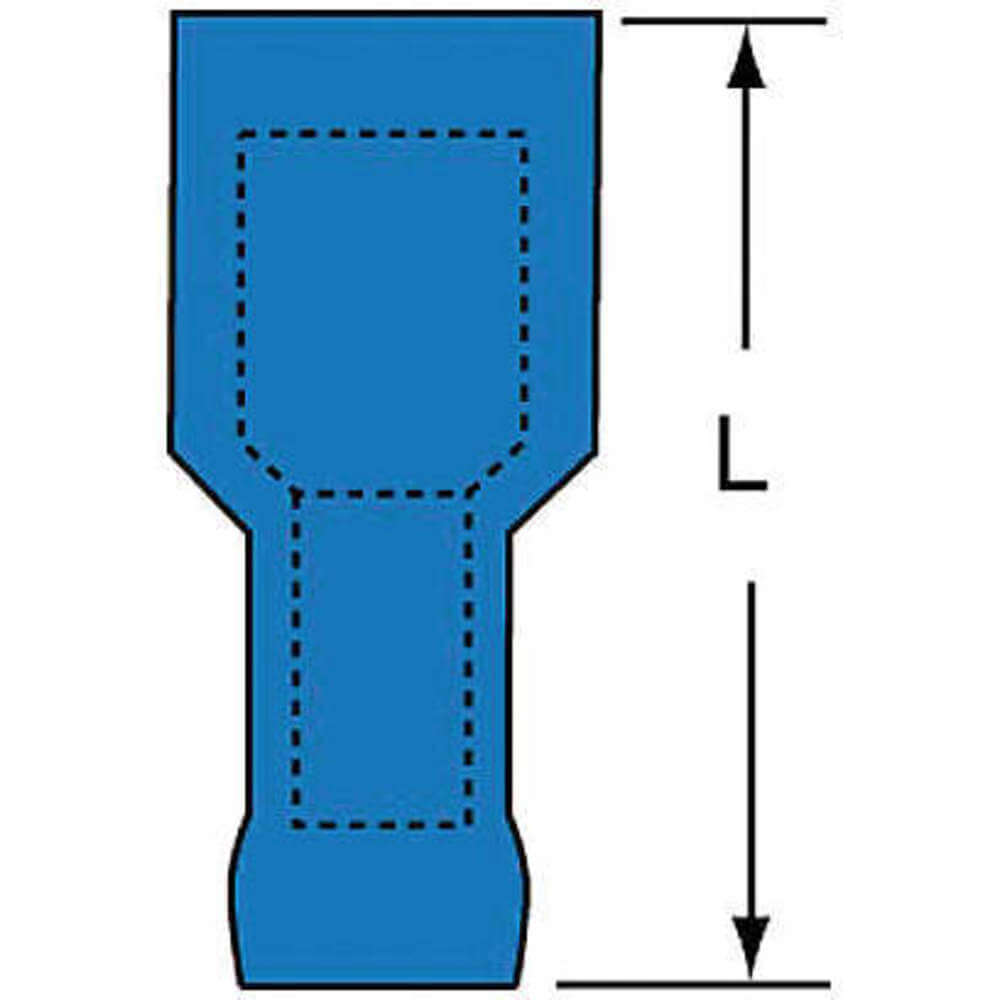

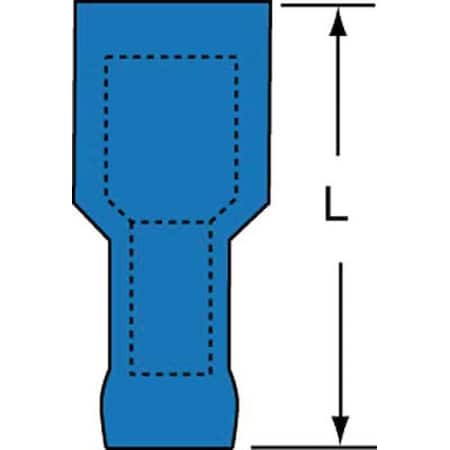

Length - Overall	0.830" (21.08mm)
Male Tab Width	0.25 in
Manufacturer	3M
Material	Nylon
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.145 in
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600 V
Maximum Wire Size	14 AWG
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Minimum Operating Tempe.	-40 Degrees F
Minimum Wire Size	16 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	0.83 in
Package	Bulk
Package Quantity	1000 per case
Pad Width	0.25 in
Product Status	Active
RoHS Compliant	Yes
Seam	Brazed
Seam Style	Butted
Series	Scotchlok?
Special Features	Allows for Quick and Ea.
Standards	CSA Certified, RoHS Com.
Tab Length	-
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032" (0.81mm), 0.032 .
Tab Width	0.250" (6.35mm), 0.25 i.
Terminal Type	Socket, Standard
Terminal Types	Female Socket
Termination	Crimp
Termination Style	Crimp
Trade Name	Scotchlok
Type	Disconnect, Insulated
UNSPSC	31201502
UPC	054007695653
Wire Gauge	14-16 AWG
Wire Range	16 to 14 AWG
Wire Size Range	16 AWG - 14 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
turtle.com	MMM MNGI14-250DFIK	0.73	1	1000		3M		0.73 @ 1000
Digi-Key	3865707	0.76	1000	1000		3M		0.76 @ 1000
Platt.com	0320699	0.9	1	1000		3M		0.9 @ 1000
Carlton Bates Company	05400769565	520.0	1	1000		3M		520.0 @ 1000
sustainablesupply.com	C1178245	556.8	1	1000		3M	3.4	556.8 @ 1000
rshughes.com	054007-69565	600.0	1000	1000		3M		600.0 @ 1000
gordonelectricsupply.com	MNGI14-250DFIK	620.0	1	1000	455	3-M		620.0 @ 1000
Zoro	G5622154	684.0	1	1000	26	3M	3.4	684.0 @ 1000
Dale-Electric	MNGI14-250DFIK	684.6	1	1000		3M		684.6 @ 1000
Raptor Supplies	AB9KXN	1826.978985	1	1000		3M		1826.978985 @ 1000
