3M MU14-250DF/FLAGK

mpnMU14-250DF/FLAGK
brandname: 3-M
manufacturername: 3-M

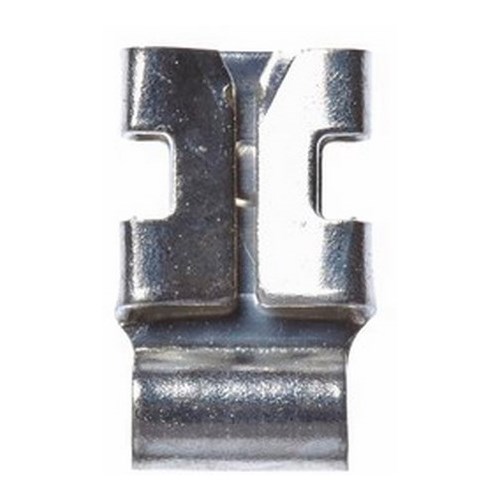

3M SCOTCHLOK FEMALE DISCONNECT FLAG, NON-INSULATED BUTTED SEAM MU14-250DF/FLAGK, 16-14 AWG

3M SCOTCHLOK FEMALE DISCONNECT FLAG, NON-INSULATED BUTTED SEAM MU14-250DF/FLAGK, 16-14 AWG

zoom

Brand: 3M
PartNumber: MU14-250DF/FLAGK
Model: MU14-250DF/FLAGK
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MU14-250DF/FLAGK
Barrel Inside Dia.	0.095 in
Barrel Length	0.26 in
Barrel Length Type	Butted
Barrel Type	0.095 in ID x 0.26 in L.
Base Product Number	MU14
Brand	3M
Category	Electrical Insulating T.
Color	Blue, -
Conductor Size	16 to 14
Connection Material	Brass
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Brass
Country of Origin	USA
Country of Origin (subj.	United States
Dimensions	1/4 in W x 0.032 in THK.
Features	Butted Seam
Gender	Female
Inside Diameter	0.095 in
Insulated	Non-Insulated
Insulation	Non-Insulated, None
Insulation Color	Bare
Insulation Diameter	-
Insulation Material	Non-Insulated
Insulation Type	Bare
Item	Female Flag Disconnect
Length - Overall	-
Male Tab Width	0.25 in
Manufacturer	3M
Material	ETP Copper
Max. Temp.	347 Degrees F
Max. Voltage	600 V
Maximum Wire Size	14 AWG
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Minimum Wire Size	16 AWG
Mounting Type	Free Hanging (In-Line),.
Overall Length	0.63 in, 0.51 in
Package	Bulk
Package Quantity	1000 per case
Pad Width	0.25 in
Product Status	Active
Seam	Butted
Series	Scotchlok?
Specifications	0.51 in OAL
Standards	CSA Certified, RoHS Com.
Tab Length	-
Tab Size	0.032 in x 0.250 in
Tab Thickness	0.032" (0.81mm)
Tab Width	0.250" (6.35mm)
Temperature Rating (Deg.	347
Terminal Type	Disconnect, Angled - 90.
Termination	Crimp
Trade Name	Scotchlok
Type	Flag, Disconnect, Non-I.
UNSPSC	31201502
UPC	054007017790
Voltage Rating	600
Wire Gauge	14-16 AWG
Wire Range	16 to 14 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H1644633	0.1903	1	56415		3M		0.1903 @ 1000
	turtle.com	MMM MU14-250DF/FLAGK	0.24	1	1000		3M		0.24 @ 1000
	Digi-Key	184001	0.26131	1	5673		3M		0.26131 @ 1000
	Platt.com	0318819	0.3	1	1000		3M		0.3 @ 1000
	rshughes.com	054007-01779	200.0	1000	1000		3M		200.0 @ 1000
	gordonelectricsupply.com	MU14-250DF/FLAGK	207.0	1	1000	455	3-M		207.0 @ 1000
	standardelectricsupply.com	2266037	217.78	1	1000		3M		217.78 @ 1000
	Zoro	G5792087	221.0	1	1000	26	3M	1.7	221.0 @ 1000
	Dale-Electric	MU14-250DF/FLAGK	227.92	1	1000		3M		227.92 @ 1000
