Appleton ENR21201

mpnENR21201
brandname: APPLETON ELECTRIC
manufacturername: APPLETON ELECTRIC

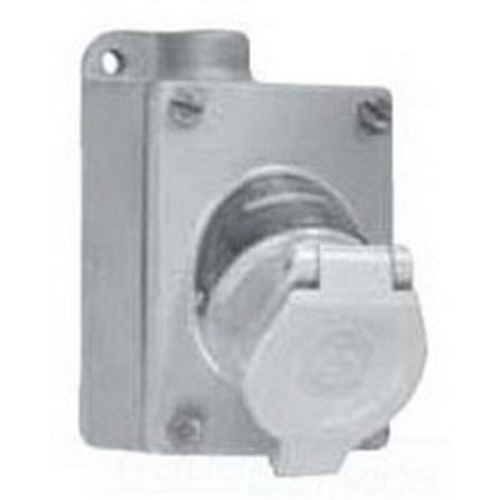

APPLETON ENR21201 Single Gang RECEPT Assy

Brand: Appleton
PartNumber: ENR21201
Model: CJPPB1775GMTDOW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Appleton
Label: Appleton

Attributes

Key	Value
Amperage Rating	20 A, 20
Amperage Rating:	20 A
Amps	20 A, 20
Approvals	UL
Body Type	Dead-End Single Gang
Category	Electrical Receptacles
Circuit Breaker	Yes
Color	Gray
Comments	Explosion Proof
Corrosion Resistant	No
Country of Origin	MX
Country of Origin (subj.	Mexico
Current Protection Type	GFCI: Yes - Circuit Bre.
Current Rating	20 A
Description:	SINGLE GANG RECEPT ASSY
Dimensions	5.2 in H x 9 in W x 6.8.
Family Series	Appleton Plugs & Recept.
Features	Dead Front Design: Rece.
Finish	Triple Coat Epoxy Coati.
For Environment	Hazardous Location
For Maximum Cable Diame.	0.639 in
For Minimum Cable Diame.	0.538 in
GFCI	Yes, No
Gross Weight	9.39 lbs
Hazardous Location Spec.	Class I, Div 2, Group B
Horsepower Rating	1 hp
Housing Material	Copper-Free Aluminum
Housing Material Finish	Chromate Finish; Epoxy .
Hub Diameter	0.75 in
Hub Size	3/4 in
Hub Style	Dead-end
Hub Type	Dead End
Hz	60
Illuminated	No
Insulation Material	Glass-Filled Reinforced.
Isolated Ground	No
Item	Receptacle
Item Number	ENR21201
Manufacturer	Appleton-Emerson Indust.
Manufacturer Part Number	ENR21201
Material	Copper-Free Aluminum, M.
Material:	Copperfree (4/10 Of 1 P.
MFG Part #:	ENR21201
Mounting Box	1 Gang, Malleable Iron
Mounting:	Surface Mount With 3/4 .
Multimedia Outlet	No
NEMA Configuration	5-20, 5-20R
NEMA Enclosure Rating	3RX, 7CD, 9FG
NEMA Rating	3RX, NEMA 3RX
NEMA Rating:	NEMA 3RX
NEMA Receptacle Configu.	5-20R
NEMA Type	5-20R
Net Weight	9.39 lbs
Number of Gangs	1
Number of Poles	3
Number Of Poles:	3
Number of Wires	2
Number Of Wires:	2
Product Series	UL-Line Intercharger 20
Product Type	Receptacle
Resistance Properties	Dust Ignition Proof, Ex.
Standard:	Class I, Groups C, D; C.
Standards	UL Listed
Sub Brand:	Contender
Supplier:	Appleton-Emerson Indust.
Tamper Resistant	No
Type	1-Gang Dead End Dust-Ig.
Type:	1-Gang Receptacle With .
UNSPSC	39121406
UPC	781381815369
UPC:	78138181536
USB	No
Voltage	125 VAC, 120 V AC
Voltage Rating	125V AC, 125, 125 VAC
Voltage Rating:	125 VAC
Watertight	No
Weather Resistant	No

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
standardelectricsupply.com	2256199	316.4	1	In Stock		Appleton		316.4 @ 1
gordonelectricsupply.com	ENR21201	387.03	1	In Stock	380	APPLETON		387.03 @ 1
Zoro	G8635006	411.69	1	In Stock	60	Appleton Electric	9.0	411.69 @ 1
Dale-Electric	ENR21201	492.98	1	In Stock		Appleton Electric Co		492.98 @ 1
Platt.com	0549633	543.22	1	In Stock		Appleton		543.22 @ 1
kscdirect.com	APP ENR21201	543.98	1	In Stock		Appleton-Emerson Industrial Automation		543.98 @ 1
Galco	ENR21201-APTN	562.31	1	In Stock		Appleton	9.39	562.31 @ 1
kirbyrisk.com	503268	743.15	1	In Stock		Appleton		743.15 @ 1
