Burndy YA2CL-2TC38

mpnYA2CL-2TC38
brandname: BURNDY
manufacturername: BURNDY

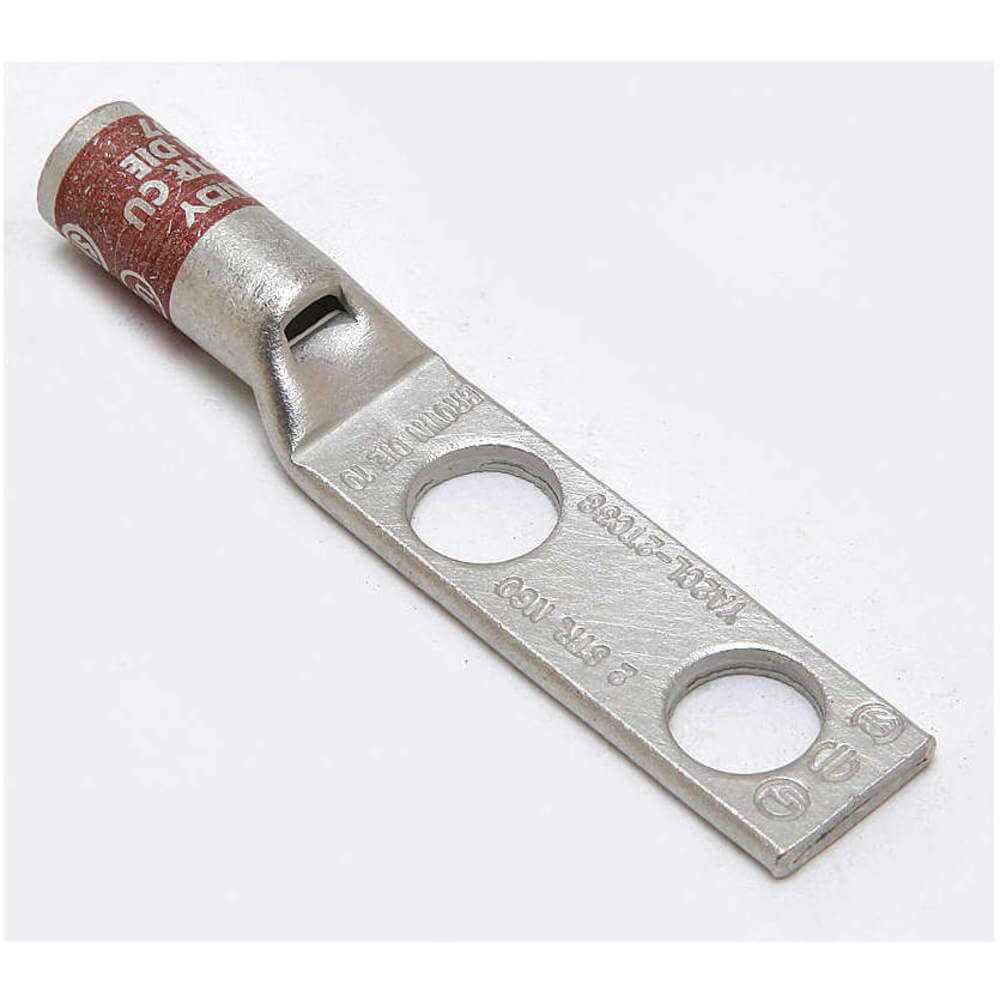

Burndy YA2CL-2TC38 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 2 AWG Conductor, 3/8" Stud Hole Size, 1" Stud Hole Spacing, 0.60" Tongue Width, 3.03" Length

Brand: Burndy
PartNumber: YA2CL-2TC38
Model: YA2CL-2TC38
Color: Brown
Size: 2 AWG
PackageQuantity: 1
Binding: Misc.
Manufacturer: Burndy
Label: Burndy

Attributes

Key	Value
Allowable Gauge Range	2
Application	For Code Conductor, Wir.
Approvals	CSA, UL
Barrel Length	Short
Barrel Outside Diameter	0.42 in
Barrel Size	Standard
Barrel Style	Chamfered
Bolt Size	3/8 in
Brand	Burndy-US, a Hubbell af.
Cable Size	2 AWG
Catalog Number	YA2CL2TC38
Certification - CSA App.	Yes
Certification - cULus	No
Certification - UL Reco.	No
Color	Brown
Color Code	Brown
Color Family	Brown
Colour Code	Brown
Conductor - Copper Str .	60 (37) Navy
Conductor - Copper Str .	60 (37) Navy
Conductor - Copper Str .	2 AWG
Conductor - Copper Str .	2 AWG
Conductor - Material	Copper
Conductor Size	2 AWG
Connector Type	Terminal, Straight Barr.
Contact Finish	Tin
Country of Origin	United States, US - Uni.
Cross Reference Products	256-30695-257
Die Code	10
Die Color	Brown
Die Index	10
Dimension - B Length in.	0.88 in
Dimension - Bolt Hole S.	0.39 in
Dimension - Bolt Size f.	2023-03-08
Dimension - Bolt Size i.	0.38
Dimension - D inch	1.83 in
Dimension - Hole Size f.	2023-03-08
Dimension - Hole Size i.	0.40 in
Dimension - Hole Size mm	10 mm
Dimension - L Length Ov.	77 mm
Dimension - Length Over.	3.03 in
Dimension - N inch	0.41 in
Dimension - Outside Dia.	0.42 in
Dimension - Pad Width i.	0.60 in
Dimension - Strip Lengt.	15/16
Dimension - Stud Size f.	2023-03-08
Dimension - Stud Size i.	44993, 3/8
Dimension - Z inch	0.42 in
ECCN	EAR99
Family Series	Burndy Terminals, YA-L-.
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish	Tin-Plated
For Conductor Material	Copper
For Stranded Copper Wir.	2 AWG
For Stranded Copper Wir.	2 AWG
For Stud Size	3/8 in
For Wire Size	2 AWG
For Wire Type	Stranded
Gross Weight	0.05 lbs
GTIN	00781810018170
Hole Center to Center	1 in
Hole Center to End	0.41 in
Hole Size	0.4 in
Industry Standard(s)	UL468A-468B
Inspection Hole	Yes
Insulated	Non-Insulated
Item	Two-Hole Lug Compressio.
Item Number	YA2CL2TC38
Item Type	3A, Standard Barrel, Ti.
Length	3.03"
Length (Straight Wirewa.	3.04 in
Lug Compression Connect.	Two-Hole Lug Compressio.
Lug Wire Size	2 AWG
Made in USA	Yes
Manufacturer	Burndy, Burndy, a Hubbe.
Manufacturer Part Number	YA2CL2TC38
Material	Copper
Max Temp	194 ?F
Maximum Operating Tempe.	194 Degrees F
Maximum Voltage	35 kVAC, 35 kV AC
Mounting	2-Hole
Net Weight	0 lbs
Number of Holes	2
Outside Diameter	0.42 in
Overall Length	3.03 in
Overall Width	0.61 in
Peep Hole	Yes
Physical Attribute - Nu.	2
Physical Attribute - To.	Straight
Physical Attribute - To.	Standard
Plate Material	Electro Tin
Plated	Y
Plating Material	Electro-Tin
Plating Type	Electro Tin Plated
Product Series	YA-L-2TC
Rating - KVA	35 kV
Rating - Minimum Voltage	600
RoHS Compliant	Yes
Special Features	Features: UL Listed 90 .
Standard	UL 486A-486B
Standards	CSA, UL467, UL, Califor.
Standards - RoHS Compli.	CM
Strip Length	15/16 in
Stud Hole Spacing	1 in.
Stud Size	3/8 in, 3/8 in.
Stud Spacing	1
Sub Brand	HYLUG
Temperature Rating	194
Terminal Material	Copper
Terminal Type	Barrel - Standard, Two .
Termination Style	Crimp
Tongue Angle	Straight
Tongue Length	0.83 in
Tongue Style	Standard
Tongue Thickness	0.11 in
Tongue Width	0.6 ", 0.6 in
Tongue Width Ranges	0.51 - 0.75 inches
Trade Name	HYLUG?
Type	Standard Barrel, Tin Pl.
UL Listed	Yes
UNSPSC	39121405
UPC	781810018170
UPC Code	781810018170
Use With	Copper
Voltage - Maximum	35000
Voltage Rating	35
Volts	600 V
Volts AC	600
Width	0.6"
Wire Size	2 AWG
Wire Size (AWG)	2 AWG
Wire Size Range	2 AWG - 2 AWG
Wire Strip Length	0.9375 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Platt.com	0862995	1.75	1	5		Burndy		1.75 @ 5
electricalparts.com	YA2CL2TC38	1.96	1	5		Burndy		1.96 @ 5
steinerelectric.com	85509	5.44	1	5		BURNDY		5.44 @ 5
Specialized Products	109X358	6.85	1	5	43	Burndy		6.85 @ 5
Graybar	89089230	7.2576	1	31		Burndy		7.2576 @ 5
Galco	YA2CL2TC38-BURN	8.43	1	5		Burndy	0.05	8.43 @ 5
grainger.ca	WWG22C318	9.71128428	1	5		BURNDY	0.01	9.71128428 @ 5
Megadepot	YA2CL2TC38	10.97	1	5		Burndy		10.97 @ 5
usmegastore.com	YA2CL2TC38	11.52	1	5		Burndy		11.52 @ 5
us.rs-online.com	71487098	12.58	1	7		BURNDY		12.58 @ 5
gordonelectricsupply.com	YA2CL-2TC38	12.89	1	5		BURNDY		12.89 @ 5
Zoro	G4686726	14.09	1	276		Burndy	0.01	14.09 @ 5
crescentelectric.com	109237	16.05	1	5		Burndy-US, a Hubbell affiliate		16.05 @ 5
Raptor Supplies	AB6RJF	19.330155	1	5		BURNDY		19.330155 @ 5
