Burndy YA8CL2TC14

mpnYA8CL2TC14
brandname: Burndy
manufacturername: Burndy

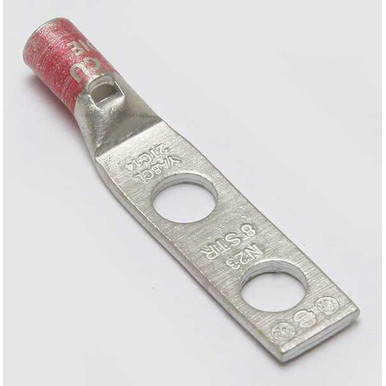

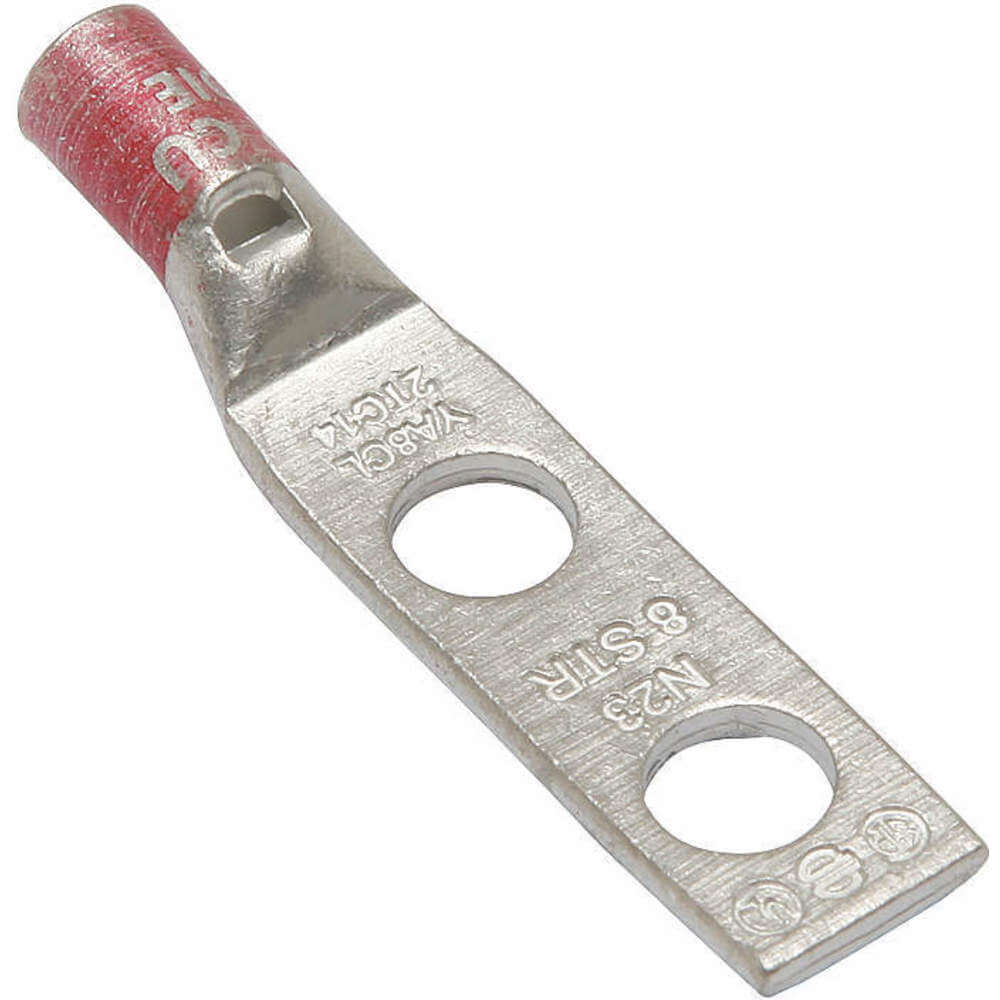

Two Hole Lug Compression Connector, 8 AWG

Brand: Burndy
PartNumber: YA8CL2TC14
PackageQuantity: 1
Manufacturer: BURNDY
Label: BURNDY

Attributes

Key	Value
Application	For Code Conductor, Wir.
Approvals	CSA, UL
Barrel Length	Short
Barrel Outside Diameter	0.27 in
Barrel Size	Standard
Barrel Style	Chamfered
Brand	Burndy-US, a Hubbell af.
Cable Size	8 AWG
Catalog Number	YA8CL2TC14
Color	Red
Color Code	Red
Color Family	Red
Colour Code	Red
Conductor - Copper DLO .	8 AWG
Conductor - Copper Flex.	"8 AWG"
Conductor - Copper Flex.	"8 AWG"
Conductor - Copper Flex.	"8 AWG"
Conductor - Copper Flex.	"8 AWG"
Conductor - Copper Flex.	"8 AWG"
Conductor - Copper Soli.	6 Sol-8 Sol
Conductor - Copper Str .	"8 AWG"
Conductor - Copper Str .	23 (7) Navy
Conductor - Copper Str .	23 (7) Navy
Conductor - Copper Str .	8 AWG
Conductor - Copper Str .	8 AWG
Conductor Material	Conductor Material
Conductor Size	8 AWG
Connector Type	Terminal, Straight Barr.
Contact Finish	Tin
Country of Origin	United States, US - Uni.
Current Stock	97
Die Code	49
Die Color	Red
Die Index	49
Dimension - B Length in.	0.44 in
Dimension - Bolt Hole S.	0.27 in
Dimension - Bolt Size f.	2023-01-04
Dimension - Bolt Size i.	0.25
Dimension - D inch	0.64 in
Dimension - Hole Size f.	2023-01-04
Dimension - Hole Size i.	0.27 in
Dimension - Hole Size mm	7 mm
Dimension - L Length Ov.	50 mm
Dimension - Length Over.	1.95 in
Dimension - N inch	0.31 in
Dimension - Outside Dia.	0.27 in
Dimension - Pad Width i.	0.44 in
Dimension - Strip Lengt.	45123
Dimension - Stud Size f.	2023-01-04
Dimension - Stud Size i.	44930
Dimension - Z inch	0.33 in
ECCN	EAR99
Family Series	Burndy Terminals, YA-L-.
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish	Tin-Plated
For Conductor Material	Copper
For Stranded Copper Wir.	8 AWG
For Stranded Copper Wir.	8 AWG
For Stud Size	1/4 in
For Wire Size	8 AWG
For Wire Type	Solid, Stranded
Gross Weight	0.0013 lbs
Hole Center to Center	0.625 in
Hole Center to End	0.31 in
Hole Size	0.27 in
Inspection Hole	Yes
Insulated	Non-Insulated
International Shipping	No
Item	Two-Hole Lug Compressio.
Item Number	YA8CL2TC14
Item Type	3A, Standard Barrel, Ti.
Lead Time	Expected to ship in 1-2.
Length	1.95"
Length (Straight Wirewa.	1.96 in
Lug Compression Connect.	Two-Hole Lug Compressio.
Lug Wire Size	8 AWG
Made in USA	Yes
Manufacturer	Burndy, Burndy, a Hubbe.
Manufacturer Part Number	YA8CL2TC14
Material	Copper
Max Temp	194 ?F
Maximum Operating Tempe.	194 Degrees F
Maximum Voltage	35 kVAC, 35 kV AC
Mpn	YA8CL2TC14
Net Weight	0 lbs
Number of Holes	2, Number of Holes
Overall Length	1.95 in
Overall Width	0.44 in
Peep Hole	Yes
Physical Attribute - Nu.	2
Physical Attribute - To.	Short
Plate Material	Electro Tin
Plated	Y
Plating Material	Electro-Tin
Plating Type	Tin - Electro Plated
Product Series	YA-L-2TC
RoHS Compliant	Yes
SKU	ZO-G4674993
Special Features	Features: UL Listed 90 .
Standard	UL 486A-486B
Standards	CSA Certified, UL 486A-.
Strip Length	7/16 in
Stud Hole Spacing	0.625 in.
Stud Size	Stud Size, 1/4 in, 1/4 .
Stud Spacing	0.625
Sub Brand	HYLUG
SubCategory	Electrical
Temperature Rating	194
Terminal Material	Copper
Terminal Type	Barrel - Standard, Two .
Termination Style	Crimp
Tongue Angle	Straight
Tongue Length	0.64 in
Tongue Style	Standard
Tongue Width	0.44 ", 0.44 in
Tongue Width Ranges	0.26 - 0.50 inches
Trade Name	HYLUG?
Type	Short Barrel, Tin Plated
UNSPSC	39121405
UPC	781810559505, 781810503.
UPC Code	781810503591
Use With	Copper
Voltage Rating	35
Volts	600 V
Width	0.44"
Wire Size	Wire Size, 8 AWG
Wire Size (AWG)	8 AWG
Wire Size Range	8 AWG - 8 AWG
Wire Strip Length	0.5 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Verical	YA8CL2TC14	3.106	3	5		Burndy		3.106 @ 5
Arrow	YA8CL2TC14	3.138	1	5		Burndy		3.138 @ 5
mecampbell.com	BURYA8CL2TC14	3.94	1	5	36	Burndy		3.94 @ 5
steinerelectric.com	472600	4.05	1	5		BURNDY		4.05 @ 5
Graybar	90065896	4.1664	1	135		Burndy		4.1664 @ 5
Specialized Products	109X402	4.18	1	5	43	Burndy		4.18 @ 5
Galco	YA8CL2TC14-BURN	4.67	1	5		Burndy	0.0013	4.67 @ 5
Zoro	G4674993	4.75	1	156		Burndy	0.01	4.75 @ 5
Quest	YA8CL2TC14	5.187	1	39		Burndy		2.594 @ 10
grainger.ca	WWG22C316	6.04596398	1	5		BURNDY	0.01	6.04596398 @ 5
Megadepot	YA8CL2TC14	6.81	1	5		Burndy		6.81 @ 5
usmegastore.com	YA8CL2TC14	6.81	1	5		Burndy		6.81 @ 5
us.rs-online.com	71495660	7.47	1	15		BURNDY		7.47 @ 5
crescentelectric.com	132466	9.98	1	5		Burndy-US, a Hubbell affiliate		9.98 @ 5
Raptor Supplies	AB6RJD	11.2964085	1	5		BURNDY		11.2964085 @ 5
simsupply.com	ZO-G4674993	11.6	1	97		Burndy		11.6 @ 5
kirbyrisk.com	543380	13.82	1	5		Burndy		13.82 @ 5
