ARB2016SV1

B00MUYZJOG

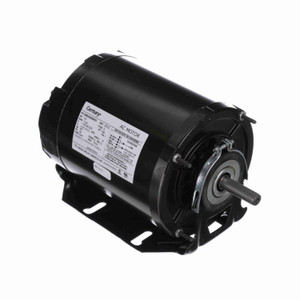

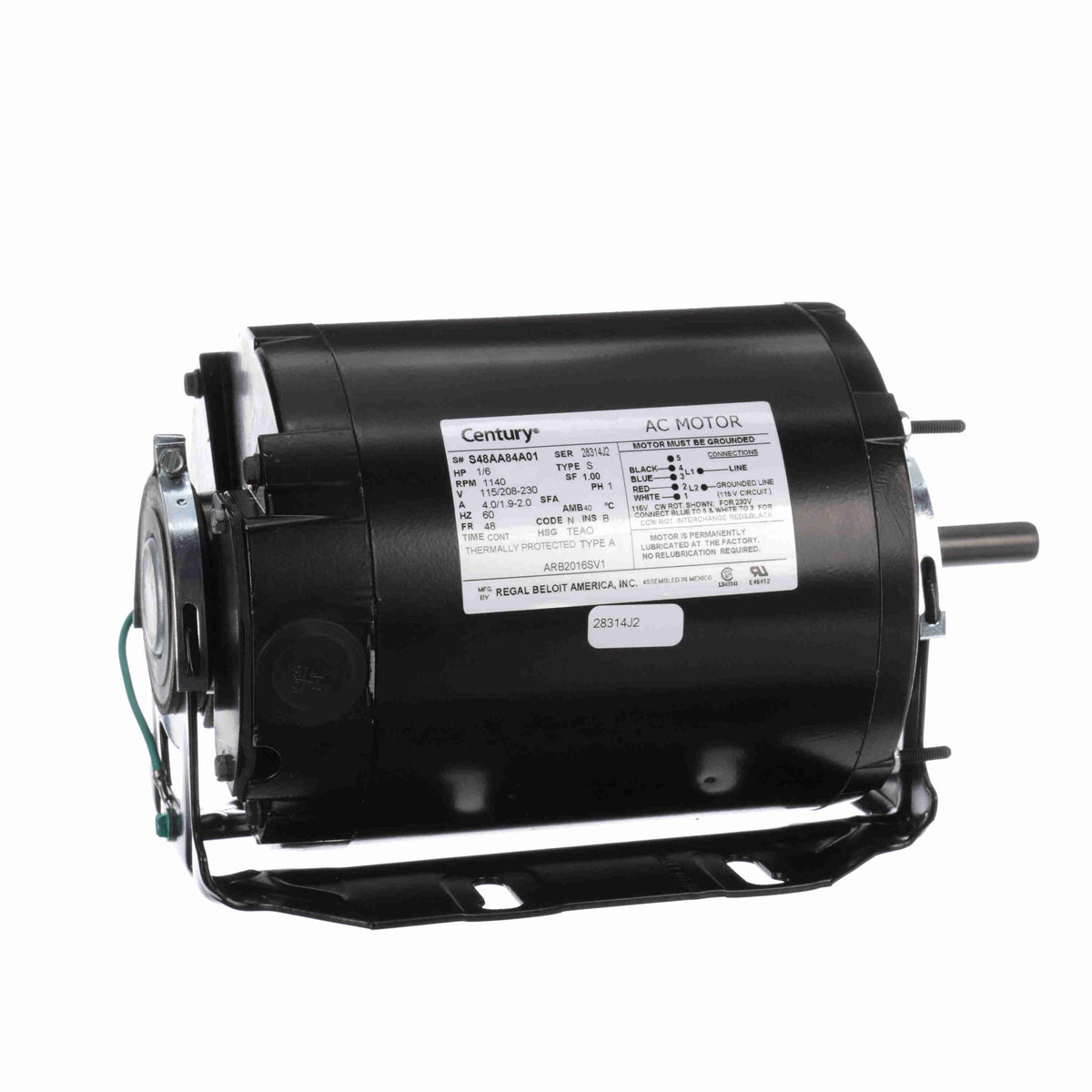

A.O. Smith ARB2016SV1 Motor, 1/6 HP, 1140, 115/208-230

A.O. Smith ARB2016SV1 Motor, 1/6 HP, 1140, 115/208-230zoom

Attributes

Key Value
Amps4.0/1.9-2.0, 4/1.9/2
ARB2016SV1 is listed in.A.O. Smith ARB2016S, A..
BearingsBall
BrandCentury
C-Dimemsion9.90 (in.)
Catalog NumberARB2016SV1
CategoryElectric Motor
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Electrical TypeSplit Phase
EnclosureTEAO
Enclosure TypeTEAO (Totally Enclosed .
Frame48
Frame MaterialRolled Steel
Frame RemarksResilient Base
Frame Type48
Frequency60
HP1/6, 0.167
Hz60
Insulation ClassB
IP Code-
ItemMODEL-CFHP-48FR
Item ConditionFACTORY NEW
KVA Code-
ManufacturerCentury
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor Diameter5-5/8"
Motor Orientation-
MountingCradle/Stud
mountingResilient Base
Mounting TypeResilient Base
Number of Speeds1
ODE Bearing TypeBall
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypeSplit Phase
RotationReversible
RPM1140, 1200
RPM (Nameplate)1140
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension1.5 (in.)
Shaft Length1-5/8"
Shaft TypeFlat
Ship Weight19 lbs.
Speeds1
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0792876244.841In Stock10Century244.84 @ 1
thumbzoomDealers ElectricARB2016SV1283.731In StockCentury19.0283.73 @ 1
thumbzoompatrickssupply.comARB2016SV1355.01In StockCENTURY355.0 @ 1
thumbzoomemotorpro.comARB2016SV1370.411In StockCentury19.0370.41 @ 1
thumbzoomsustainablesupply.comC2090489379.131In StockCentury15.0379.13 @ 1
Global IndustrialWBB2776246394.951In Stock18CENTURY394.95 @ 1
thumbzoomDreisilkerCE-RBC-ARB2016SV1403.191In StockCentury403.19 @ 1
thumbzoomNational Supply NetworkB2776246407.311In StockAO SMITH407.31 @ 1
thumbzoommidwestapplianceparts.comARB2016SV1-AO-P481.41In StockAO Smith481.4 @ 1
