- mpn46009
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

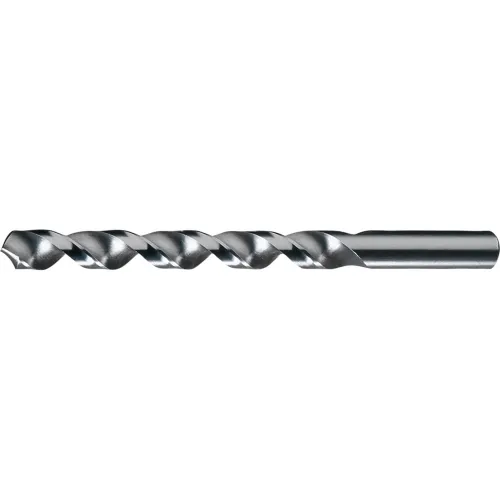

Chicago-Latrobe 46009 150B Jobber Length Drill Bit, 9/64 in Drill - Fraction, 0.1406 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46009
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Application | Chip Ejection, Carbon S. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 12 |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1406 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.140625, 0.1406" |
| Diameter (Fraction) | 9/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 9/64 in |
| Drill Construction | High Helix |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0422 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1.7500", 1 3/4 in |
| Flute Length (Metric) | 44.45mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 40 Degrees |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150B |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 9/16 in |
| Measurement System | Fractional Inch |
| Mpn | 46009 |
| Number of Flutes | 2 |
| Overall Length | 2.8750", 2 7/8 in |
| Overall Length (Metric) | 73.02mm |
| Point Angle | 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Composite, Co. |
| Primary Material Applic. | N, O, P |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 9/64 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1406", 0.1406 |
| Shank Size (Metric) | 3.57mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G2823620 |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| SubCategory | Machining |
| Surface Condition | Bright |
| Tool Size | 9/64" |
| UPC | 662355460092 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2547714 | 1.7723 | 12 | 12 | | Chicago-Latrobe | | 1.7723 @ 12 |
 | Megadepot | 46009 | 2.34 | 1 | 12 | | Chicago-Latrobe | | 2.34 @ 12 |
 | heavydutydepot.com | 46009 | 2.34 | 43 | 12 | | Chicago-Latrobe | | 2.34 @ 43 |
 | usmegastore.com | 46009 | 2.47 | 1 | 12 | | Chicago-Latrobe | | 2.47 @ 12 |
 | Zoro | G2823620 | 2.56 | 1 | 12 | | Chicago-Latrobe | 0.01 | 2.56 @ 12 |
 | Guardian | 81140097 | 3.73 | 1 | 12 | | Chicago-Latrobe | | 3.73 @ 12 |
 | National Supply Network | 81140097 | 3.8325 | 12 | 12 | | Chicago-Latrobe | | 3.8325 @ 12 |
 | simsupply.com | ZO-G2823620 | 8.65 | 1 | 12 | | Chicago-Latrobe | | 8.65 @ 12 |
