- mpn46095
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

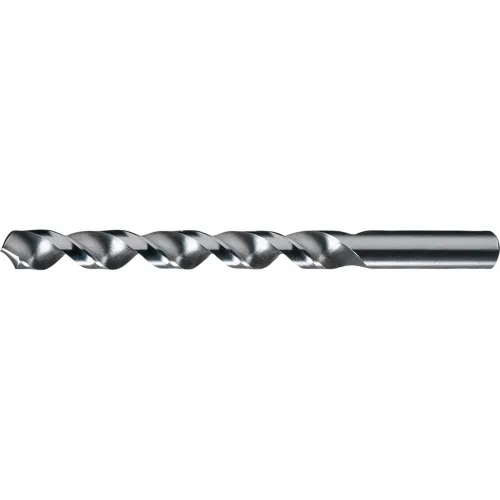

Chicago-Latrobe 46095 150B Jobber Length Drill Bit, 25 Drill - Wire, 0.1495 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 46095
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Aluminum, Carbon Steel,. |
| Application | Chip Ejection, Carbon S. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 1-7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1495 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1495", 0.1495 |
| Diameter (Wire/Let) | 25 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #25 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0449 in |
| Drill Size - Decimal In. | 0.1495 in |
| Drill Size - Wire | #25 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Flute Length (Metric) | 47.63mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 40 Degrees |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 150B |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 19/32 in |
| Measurement System | Wire |
| Number of Flutes | 2 |
| Overall Length | 3.0000", 3 in |
| Overall Length (Metric) | 76.20mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Composite, Co. |
| Primary Material Applic. | N, O, P |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 9/64 in |
| Shank Length | 1.1250", 1 1/8 in |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1495", 0.1495, 0.1495. |
| Shank Size (Metric) | 3.80mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #25 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129034 | 1.78 | 20 | 12 | | Chicago-Latrobe | | 1.78 @ 20 |
 | Global Industrial | WBB2547045 | 1.93 | 12 | 12 | | Chicago-Latrobe | | 1.93 @ 12 |
 | Zoro | G2824083 | 2.24 | 1 | 12 | | Chicago-Latrobe | 0.01 | 2.24 @ 12 |
 | usmegastore.com | 46095 | 2.49 | 1 | 12 | | Chicago-Latrobe | | 2.49 @ 12 |
 | Megadepot | 46095 | 2.53 | 1 | 12 | | Chicago-Latrobe | | 2.53 @ 12 |
 | heavydutydepot.com | 46095 | 2.53 | 40 | 12 | | Chicago-Latrobe | | 2.53 @ 40 |
 | sustainablesupply.com | C2764086 | 2.64 | 1 | 12 | | Chicago-Latrobe | 0.01 | 2.64 @ 12 |
 | Guardian | 81142259 | 3.89 | 1 | 12 | | Chicago-Latrobe | | 3.89 @ 12 |
 | National Supply Network | 81142259 | 3.9225 | 36 | 12 | | Chicago-Latrobe | | 3.9225 @ 36 |
