- mpn46102
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

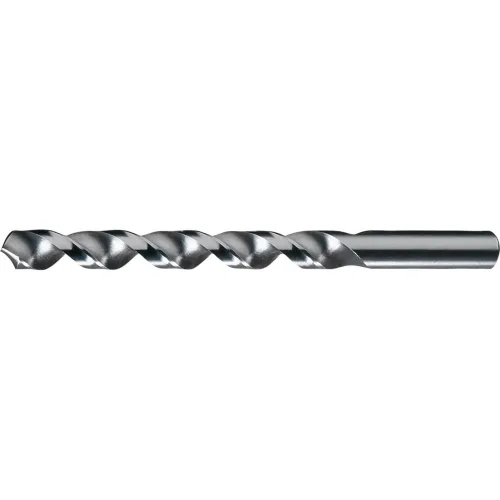

Chicago-Latrobe 46102 150B Jobber Length Drill Bit, 32 Drill - Wire, 0.116 in Drill - Decimal Inch, 118 deg Point, HSS, Bright (Each)
- Brand: Chicago Latrobe
- PartNumber: 46102
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Application | Chip Ejection, Carbon S. |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cutting Depth | 1-5/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.116, 0.1160 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.1160", 0.116 |
| Diameter (Wire/Let) | 32 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 ?, 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #32 |
| Drill Construction | High Helix |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0348 in |
| Drill Size - Decimal In. | 0.116 in |
| Drill Size - Wire | #32 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1-5/8 in, 1.6250", 1 5/. |
| Flute Length (Metric) | 41.27mm |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 40?, 40 Degrees |
| Item | Jobber Length Drill Bit |
| Item? | 434G86 |
| Left/Right Hand | Right |
| List Number | 150B |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 29/64 in |
| Measurement System | Wire |
| Mfr. Model? | 46102 |
| Number of Flutes | 2 |
| Overall Length | 2-3/4 in, 2 3/4 in, 2.7. |
| Overall Length (Metric) | 69.85mm |
| Point Angle | 118 deg, 118, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Composite, Co. |
| Primary Material Applic. | N, O, P, N; O; P |
| Series | 150B |
| Shank Configuration | Straight |
| Shank Dia. | 7/64 in |
| Shank Length | 1.1250", 1 1/8 in, 1-1/. |
| Shank Length (Metric) | 28.57mm |
| Shank Size | 0.1160", 0.116 in Dia x. |
| Shank Size (Metric) | 2.95mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Standards | ANSI |
| Style | 150B |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | #32 |
| UNSPSC | 27112801 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129041 | 1.69 | In Stock | 12 | | Chicago-Latrobe | | 1.69 @ 21 |
 | heavydutydepot.com | 46102 | 1.69 | 60 | 12 | | Chicago-Latrobe | | 1.69 @ 60 |
 | Global Industrial | WBB2547203 | 1.7421 | 12 | 12 | | Chicago-Latrobe | | 1.7421 @ 12 |
 | Zoro | G2824092 | 2.15 | 1 | 12 | | Chicago-Latrobe | 0.01 | 2.15 @ 12 |
 | Megadepot | 46102 | 2.31 | 1 | 12 | | Chicago-Latrobe | | 2.31 @ 12 |
 | usmegastore.com | 46102 | 2.41 | 1 | 12 | | Chicago-Latrobe | | 2.41 @ 12 |
| Grainger | 434G86 | 3.11 | 1 | 12 | | CHICAGO-LATROBE | | 3.11 @ 12 |
 | Guardian | 81142325 | 3.55 | 1 | 12 | | Chicago-Latrobe | | 3.55 @ 12 |
 | National Supply Network | 81142325 | 3.6225 | 12 | 12 | | Chicago-Latrobe | | 3.6225 @ 12 |
