Chicago Latrobe 49389

B09TJRKGVS

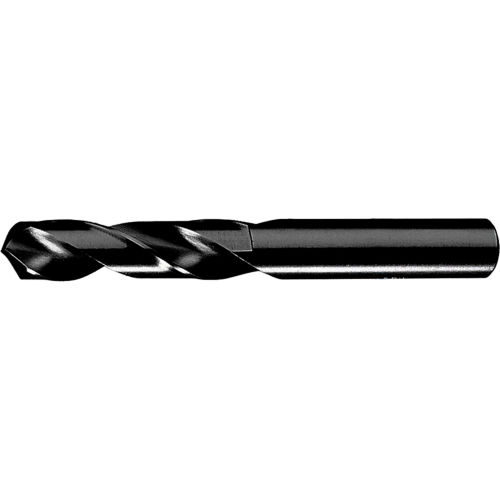

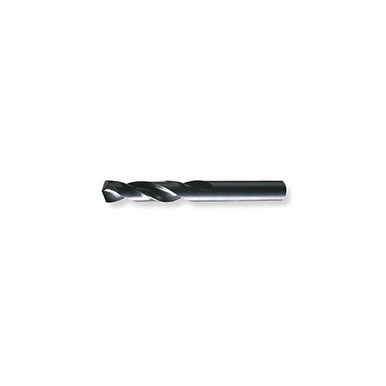

Chicago-Latrobe 49389 159 Heavy Duty Screw Machine Drill, 19 Drill - Wire, 0.166 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)

Chicago-Latrobe 49389 159 Heavy Duty Screw Machine Drill, 19 Drill - Wire, 0.166 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)zoom

Attributes

Key Value
ApplicationFor Alloy, Carbon And T.
BrandChicago-Latrobe
Current Stock42
Decimal Equivalent0.1660
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.166, 0.1660"
Drill Bit Dimension TypeWire
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit Size#19
Drill ConstructionHeavy-Duty
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0344 in
Drill Size SystemWire
Drill StyleScrew Machine Drill
Flute Length1.0625", 1 1/16 in
Flute Length (Metric)26.99mm
Flute TypeSpiral
GradeHeavy Duty
Hand of CutRight
Hand of SpiralRight
International ShippingNo
ItemScrew Machine Drill Bit
MaterialHSS
Maximum Drilling Depth1 1/16 in
Measurement SystemImperial
Mpn49389
Number of Flutes2
Overall Length2.1250", 2 1/8 in
Overall Length (Metric)53.97mm
Point Angle135?
Point StyleSplit
Shank ConfigurationStraight
Shank Dia.5/32 in
Shank Length1.0625", 1 1/16 in
Shank Length (Metric)26.99mm
Shank Size0.166, 0.1660"
Shank Size (Metric)4.22mm
Shank TypeStraight
SKUZO-G0669645
SubCategoryMachining
Surface ConditionSteam Oxide
Tool Size#19
UPC662355493892

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepot493891.45112Chicago-Latrobe1.45 @ 12
thumbzoomheavydutydepot.com493891.456912Chicago-Latrobe1.45 @ 69
thumbzoomusmegastore.com493891.89112Chicago-Latrobe1.89 @ 12
thumbzoomZoroG06696451.99187Chicago-Latrobe0.151.99 @ 12
thumbzoomsustainablesupply.comC14643912.35112Chicago-Latrobe0.012.35 @ 12
thumbzoomRaptor SuppliesAB2HHK2.3576085112CHICAGO-LATROBE2.3576085 @ 12
thumbzoombscsource.com493892.49112Chicago-Latrobe2.49 @ 12
thumbzoomGuardian813831923.54112Chicago-Latrobe3.54 @ 12
thumbzoomNational Supply Network813831923.5525112Chicago-Latrobe3.5525 @ 12
thumbzoomsimsupply.comZO-G06696458.17142Chicago-Latrobe8.17 @ 12
thumbzoomGlobal IndustrialWBB254743817.16112Chicago-Latrobe17.16 @ 12
