Dayton 2X900

mpn2X900
brandname: Dayton
manufacturername: Dayton

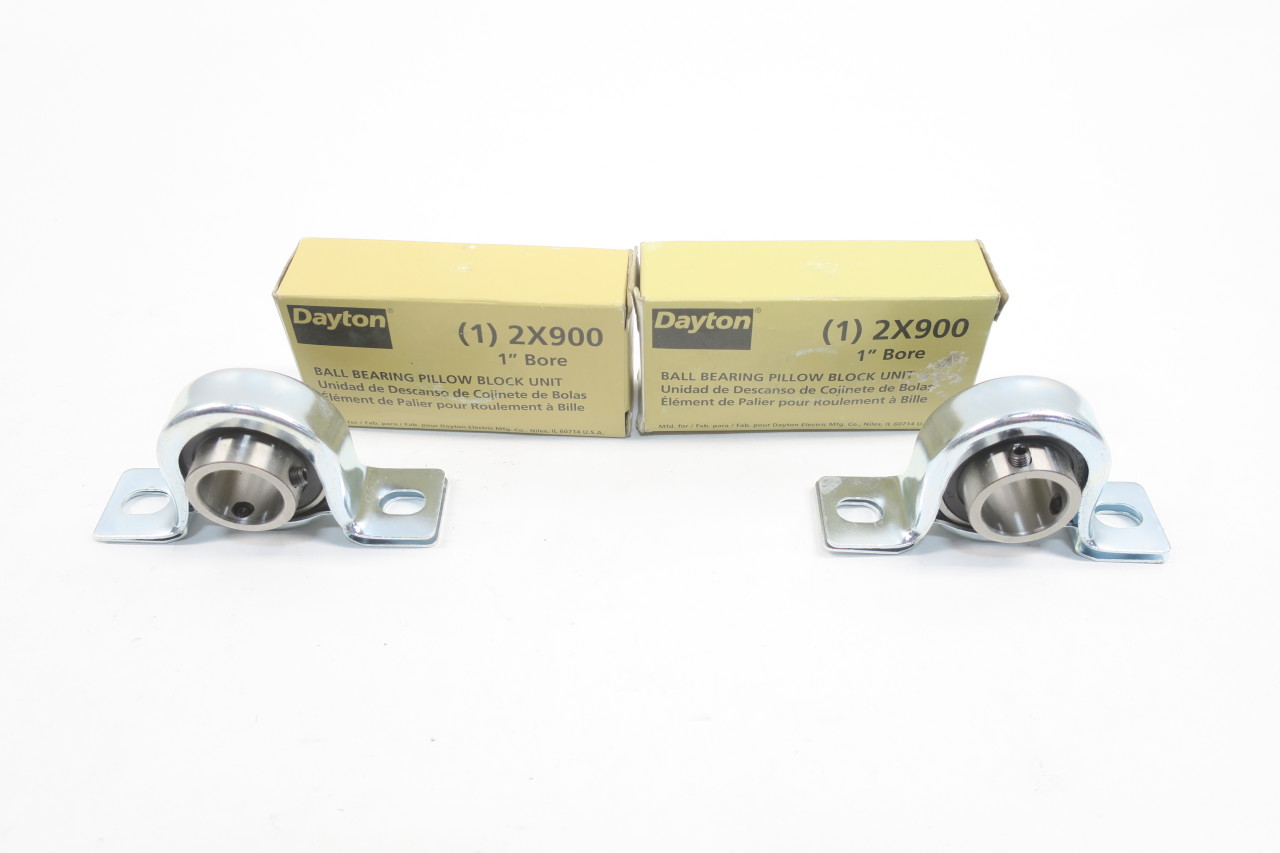

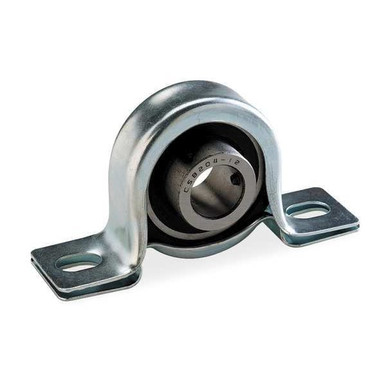

Pillow Block Bearing, Number of Bolts: 2, Ball Bearing Type, 1" Bore Dia.

Pillow Block Bearing, Number of Bolts: 2, Ball Bearing Type, 1" Bore Dia.

zoom

Brand: Dayton
PartNumber: 2X900
Manufacturer: DAYTON
Label: DAYTON

Attributes

Key	Value
Base Height	0.13 in
Bearing Housing Materia.	Pressed Steel
Bearing Insert Material	Alloy Steel
Bearing Insert Type	Ball, Radial Ball
Bearing Material Grade	52100
Bolt Size	7/16 in
Bore Dia.	1 in
Bore Diameter	1 in
Bore Diameter Tolerance	-0.000/+0.003 in
Bore Type	Cylindrical
Brand	Dayton
Center Height	1 3/16 in, 1.187 in
Closure	Double Sealed
Current Stock	797
Dimension A	1 3/16 in
Dimension B	2 5/16 in
Dimension C	4 7/16 in
Dimension D	4 9/16 in
Dimension E	3 7/16 in
Dimension F	1/8 in
Dimension G	1 5/16 in
Dimension H	1/8 in
Dimension J	7/16 in
Dimension L	1 7/16 in
Dynamic Radial Load Cap.	1,768 lbf
Features	Pre-Lubricated and Made.
Housing Material	Steel
Includes	(2) Set Screws
International Shipping	No
Item	Pillow Block Bearing
Lead Time	Expected to ship in 1-2.
Lubricant Material	NGLI #2 Equivalent
Maximum Misalignment An.	2 Degrees
Maximum Speed	3,500 RPM
Maximum Temperature	200 Degrees F
Minimum Temperature	-30 Degrees F
Mount Hole Center-to-Ce.	3 7/16 in, 3.44 in
Mount Type	Bolt-Through
Mounting Bolt Size	7/16 in
Mpn	2X900
Number of Mount Holes	2
Overall Height	2 5/16 in, 2.312 in
Overall Length	4 9/16, 4.437 in
Overall Width	1.312 in, 1 21/32 in
Resistance Properties	Non-Conductive
Seal Material	Buna-N
Shaft Locking Type	Set Screws
SKU	ZO-G2917652
Static Radial Load Capa.	3,153 lbf
SubCategory	Power Transmission
System of Measurement	Inch
UPC	044861016053

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Grainger	2X900	17.85	1	911	0	DAYTON		17.85 @ 1
	AmazonTP	B00F0TMNF6	19.9	1	In Stock	3	Dayton		19.9 @ 1
	sustainablesupply.com	C2774256	23.19	1	In Stock		Dayton	0.6	23.19 @ 1
	Zoro	G2917652	24.89	1	1216		Dayton	0.6	24.89 @ 1
	grainger.ca	WWG2X900	27.87820846	1	In Stock		DAYTON	0.6	27.87820846 @ 1
	simsupply.com	ZO-G2917652	37.63	1	797		Dayton		37.63 @ 1
	Raptor Supplies	AC3WNR	40.89501	1	In Stock		DAYTON		40.89501 @ 1
	NRI Industrial	D596023	40.94	1	In Stock		DAYTON		40.94 @ 1
