- mpn2Z153
- brandname: DAYTON
- manufacturername: DAYTON

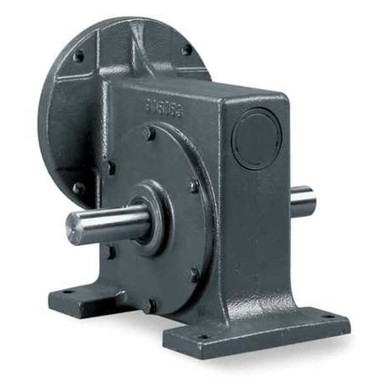

Speed Reducer, C-Face, 56C, 20:1
- Brand: Dayton
- PartNumber: 2Z153
- Model: 2Z153
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Bearings | Oversized Ball Roller |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 9 |
| Dimension U | 1 1/4 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade |
| Max. Input HP | 0.75 hp, 3/4, 0.75 |
| Max. Output Torque | 422 in-lb, 422 in.-lb. |
| Max. Torque (In.-Lbs.) | 422 |
| Mpn | 2Z153 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 86, 86 RPM |
| Nominal Ratio | 20:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 in |
| Output Shaft Diameter | 1 in |
| Output Torque @ 1 HP | 422 in.-lb., 422 in-lbs |
| Output Torque @ 1/2 HP | 265 in-lbs |
| Output Torque @ 1/2 HP . | 265 |
| Output Torque @ 1/3 HP | 163 in-lb |
| Output Torque @ 1/3 HP . | 163 |
| Output Torque @ 1/4 HP | 115 in-lb |
| Output Torque @ 1/4 HP . | 115 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 3/4 HP | 422 in-lb, 422 in-lbs |
| Output Torque @ 3/4 HP . | 422 |
| Overhung Load | 629 lb. |
| Overhung Load (Lb.) | 629 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84306 |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Double Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 28 lbs. |
| Single/Double Output/Un. | Double Output |
| SKU | ZO-G1956726 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735241103 |
| Worm Center Distance | 2.62" |
| Worm Gear Material | Bronze |
