Dayton 2Z154

mpn2Z154
brandname: DAYTON
manufacturername: DAYTON

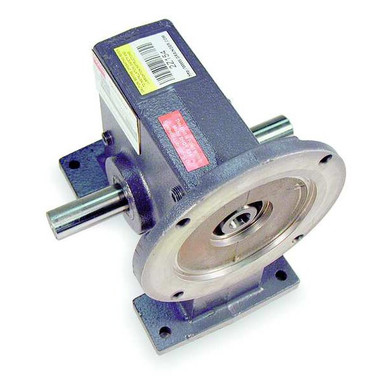

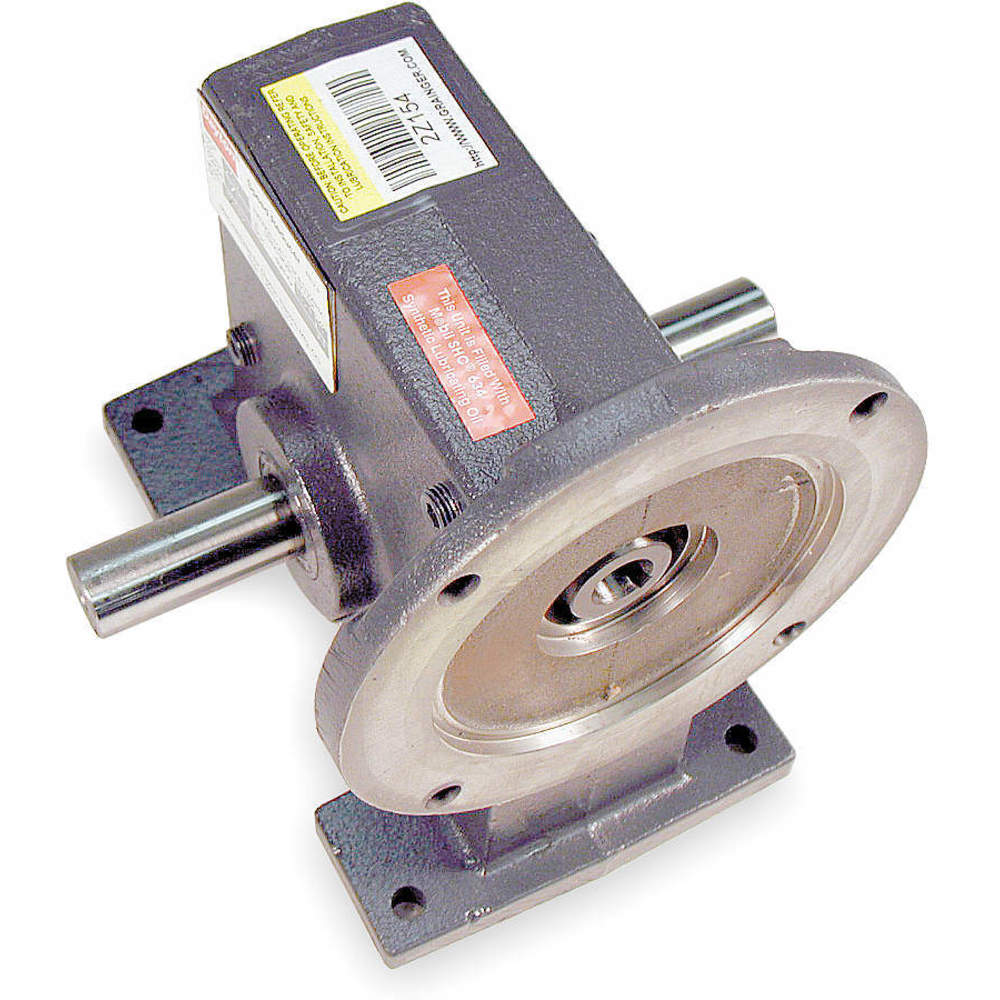

Dayton 2Z154 Speed Reducer,56c,13:1 - 2Z154

Dayton 2Z154 Speed Reducer,56c,13:1 - 2Z154

zoom

Brand: Dayton
PartNumber: 2Z154
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Bearings	Oversized Ball Roller, .
Bore Dia.	5/8"
Brand	Dayton
Current Stock	9
Dimension U	1 1/4 in
Duty	Standard
Finish	Powdered Epoxy Paint
Frame	56C
Gear Material	Hardened and Ground Ste.
Gear Type	Worm
Housing Material	Cast Iron
Input RPM	1750 rpm, 1750
Input Shaft Diameter	5/8 in
International Shipping	No
Item	Speed Reducer
Lead Time	Expected to ship in 1-2.
Lubrication	Kluber Food Grade
Max. Input HP	3/4, 0.75
Max. Output Torque	292.00 in.-lb., 292 in-.
Max. Torque (In.-Lbs.)	292
Mpn	2Z154
NEMA/IEC Frame	56C
Nominal Output RPM	138 RPM, 138
Nominal Ratio	12.5:1
Number of Stages	1
Oil Seal	Double Lip
Output Shaft Dia.	1 in
Output Shaft Diameter	1 in
Output Torque @ 1 HP	292 in-lbs
Output Torque @ 1/2 HP	185 in-lb
Output Torque @ 1/2 HP .	185
Output Torque @ 1/3 HP	115 in-lb
Output Torque @ 1/3 HP .	115
Output Torque @ 1/4 HP	80 in-lb
Output Torque @ 1/4 HP .	80
Output Torque @ 1/40 HP	3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP	292 in-lbs
Output Torque @ 3/4 HP .	292
Overhung Load	487 lb.
Overhung Load (Lb.)	487
Pinion Material	Hardened Steel
Prop 65	WARNING: Cancer and Rep.
Rotation	Forward/Reverse
Seal Type	Double Lip
Shaft Assembly	Double Output
Shaft Orientation	Right Angle
Ship Weight	29 lbs.
Single/Double Output/Un.	Double Output
SKU	ZO-G1731055
Solid/Hollow Output Sha.	Solid
Speed Reducer Type	C-Face
Standards	AGMA
SubCategory	Power Transmission
Type	C-Face
UPC	190735241110
Worm Center Distance	2.62 in, 2.62"
Worm Gear Material	Bronze

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	AmazonTP	B000LESNMC	688.18	1	In Stock	5	Dayton		688.18 @ 1
	AmazonUNK	B000LESNMC	688.18	1	In Stock		Dayton		688.18 @ 1
	grainger.ca	WWG2Z154	743.93663388	1	In Stock		DAYTON	28.45	743.93663388 @ 1
	sustainablesupply.com	C2777362	751.58	1	In Stock		Dayton	28.45	751.58 @ 1
	Zoro	G1731055	862.99	1	22		Dayton	28.45	862.99 @ 1
	simsupply.com	ZO-G1731055	1040.25	1	9		Dayton		1040.25 @ 1
	emotorpro.com	2Z154	1076.4	1	In Stock		Dayton	29.0	1076.4 @ 1
	Raptor Supplies	AC4DUA	1417.135005	1	In Stock		DAYTON		1417.135005 @ 1
