- mpn4JMW3
- brandname: DAYTON
- manufacturername: DAYTON

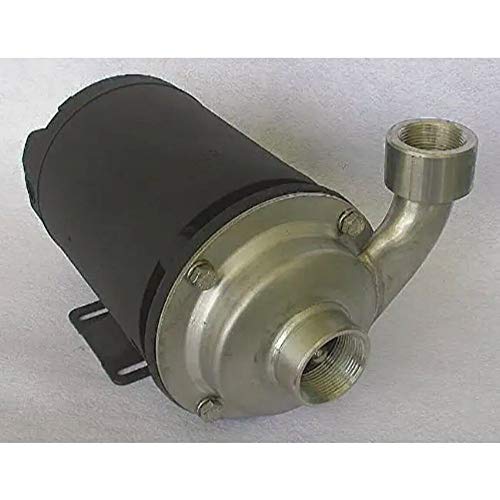

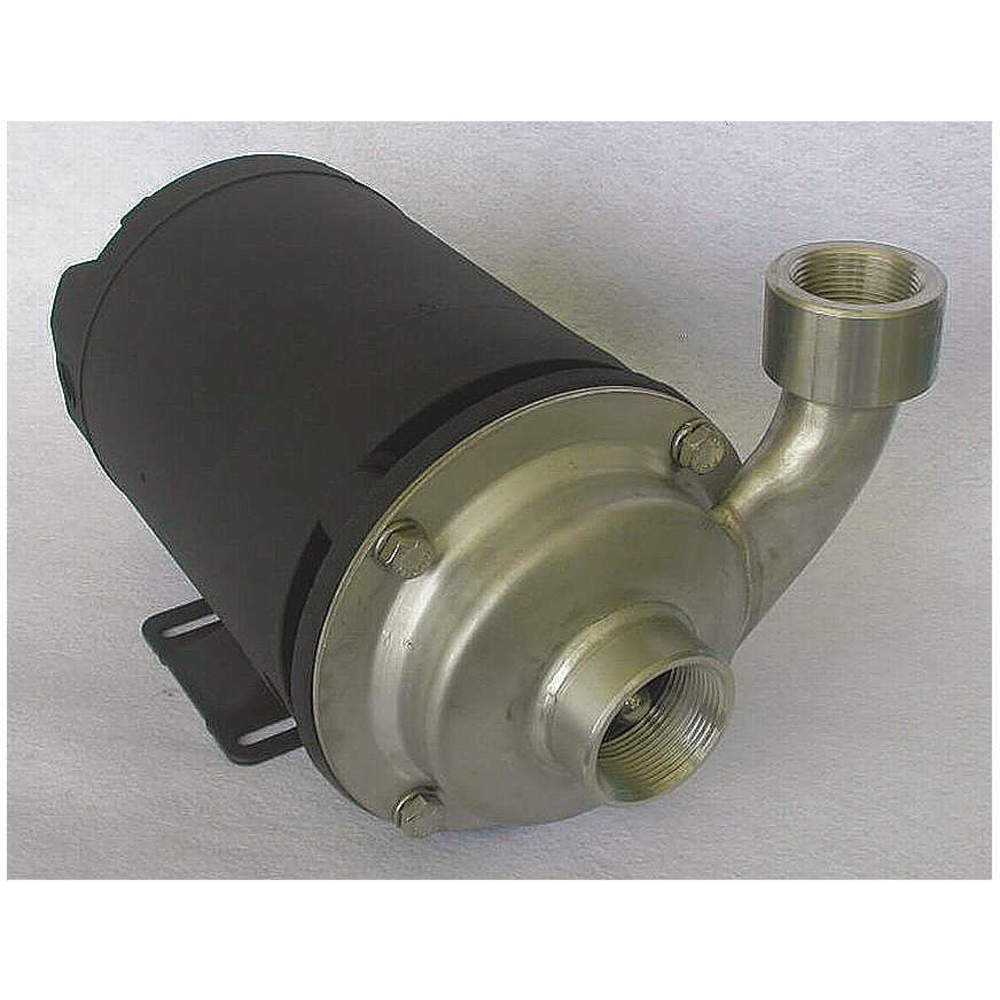

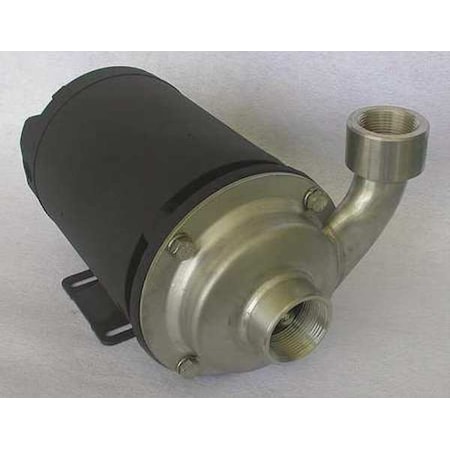

Dayton 4JMW3 Pump, 2 HP, 230/460V, 8.4/4.2 Amp, Metal
- Brand: Dayton
- PartNumber: 4JMW3
- Model: 4JMW3
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Agency Compliance | CUS |
| Amps | 8.4/4.2 |
| Application | Liquids Transfer, Circu. |
| Bearing Type | Ball |
| Best Efficiency GPM @ H. | 55 gpm @ 50 ft, 55 gpm . |
| Best Efficiency Range G. | 26 to 100 gpm @ 60 to 1. |
| Brand | Dayton |
| Cord Length | Not Applicable |
| Current Stock | 7 |
| Discharge Pipe Size | 1 1/2 in |
| Drain Plug | No |
| Duty | Continuous |
| GPM of Water @ 10 Ft. o. | 114 |
| GPM of Water @ 15 Ft. o. | 110 |
| GPM of Water @ 20 Ft. o. | 109 |
| GPM of Water @ 25 Ft. o. | 105 |
| GPM of Water @ 30 Ft. o. | 92 |
| GPM of Water @ 40 Ft. o. | 85 |
| GPM of Water @ 5 Ft. of. | 130 |
| GPM of Water @ 50 Ft. o. | 55 |
| GPM of Water @ 60 Ft. o. | 24 |
| Height | 7 3/4 in, 7-3/4" |
| Housing Material | 304 Stainless Steel |
| HP | 2 hp, 2 |
| Hz | 60 |
| Impeller Material | 304 SS |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet | 2" NPT, 2 in NPT |
| Inlet Pressure | 120 PSI |
| Intake Pipe Size | 2 in |
| International Shipping | No |
| Item | Centrifugal Pump, Chemi. |
| Length | 14-12/16", 14 3/4 in |
| Length (Straight Wirewa. | 14 3/4 in |
| Manufacturers Warranty . | 1 yr., 1 yr |
| Max. Case Pressure | 150 PSI |
| Max. Dia. Solids | 1/8", 1/8 in |
| Max. Fluid Viscosity | 31 SSU |
| Max. GPM @ Head | 130 gpm @ 5 ft, 130 gpm. |
| Max. Head | 68 ft., 68 ft |
| Max. Liquid Temp. | 200 Degrees F |
| Max. Specific Gravity | 1.0 |
| Min. GPM @ Head | 24 gpm @ 60 ft. |
| Motor Enclosure | ODP |
| Motor RPM | 3450 |
| Motor Type | 3-Phase |
| Mpn | 4JMW3 |
| NEMA/IEC Frame | 56J |
| Outlet | 1-1/2" NPT, 1-1/2 in NPT |
| Overall Height | 7.8 in |
| Overall Length | 14.8 in |
| Overall Width | 8.6 in |
| Phase | 3 |
| Port Rotation | 90 Degrees Increments |
| Screw Material | Stainless Steel |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shaft Outer Diameter | 7/16 in |
| SKU | ZO-G2264324 |
| Solid Diameter (Maximum) | 0.13 in |
| SubCategory | Pumps |
| UPC | 190735326671 |
| Voltage | 230/460 |
| Wetted Materials | Carbon, Ceramic, 304 St. |
| Width | 8-9/16", 8 9/16 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | GGM4JMW3 | 684.3624774 | 1 | In Stock | | DAYTON | 52.25 | 684.3624774 @ 1 |
 | Zoro | G2264324 | 851.83 | 1 | 14 | | Dayton | 52.25 | 851.83 @ 1 |
 | simsupply.com | ZO-G2264324 | 988.16 | 1 | 7 | | Dayton | | 988.16 @ 1 |
 | sustainablesupply.com | C1740250 | 1114.99 | 1 | In Stock | | Dayton | 52.25 | 1114.99 @ 1 |
 | Raptor Supplies | AD8EQT | 1399.6931715 | 1 | In Stock | | DAYTON | | 1399.6931715 @ 1 |
