Dwyer 2010AV

B009P9EP3U

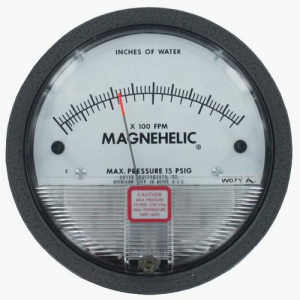

Dwyer? Magnehelic? Differential Pressure Gage, 2010AV, Dual Scale 0 to 10" w.c. & 2000 to 12500 FPM

Dwyer? Magnehelic? Differential Pressure Gage, 2010AV, Dual Scale 0 to 10" w.c. & 2000 to 12500 FPMzoom

Attributes

Key Value
Accuracy+/-2% of F.S.
ApprovalsEU, RoHS II
Basic Gauge Case Materi.Metal
Body MaterialDie Cast Aluminum
Bolt Circle Diameter4.125 in
BrandDwyer
Case Depth1.687 in
Case Diameter4.75 in
Case MaterialAluminum
Case Size4.75 "
Case StyleRound
Connection1/8 NPT
Connections1/8? female NPT
Dial MaterialDie Cast Aluminum
Dial TypeAnalog
Differential Gauge Conn.1/8 in
Differential Gauge Conn.FNPT
Differential Pressure G.Differential Pressure G.
Differential Pressure R.in wc
Differential Pressure R.0 to 10
Dimensions4 x 4 x 4
Dual ScaleYes
Enclosure RatingIP67
English0 - 10 Inches of Water .
Family SeriesDwyer Instruments Panel.
Gauge Accuracy+/-2.00%
Gauge Connection Locati.Back and Side
Gauge Nominal Dial Size4 in
Gauge Operating Temp. R.20 Degrees to 140 Degr.
Gauge Primary Range Sma.0.2
Gross Weight1.285 lbs
HousingDie cast aluminum case .
International ShippingNo
ItemDifferential Pressure G.
Item Number2010AV
Lead TimeExpected to ship in 1-2.
ManufacturerDwyer Instruments
Manufacturer Part Number2010AV
Manufacturer Warranty L.5 yr
Manufacturers Warranty .1 yr
Maximum Value10/12,500
Minimum Value0/2,000
Mounting OrientationDiaphragm in vertical p.
Mounting PositionDiaphram Vertical
Mpn2010AV
Net Weight1.08 lbs
Nominal Dial Size4 in
OverpressureRelief plug opens at ap.
Pressure Limits-20 in Hg. to 15 psig. .
Process Connection Size1/8 in
Process Connections1/8" female NPT duplica.
Product Series2000
Range0-10 " WC, 2,000-12,500.
Rated Total Pressure-20 in Hg to 15 psi
RatingIP67
RoHSYes
Scale TypePressure and Air Veloci.
SeriesMagnehelic Series
ServiceAir and non-combustible.
Size4" (101.6 mm) diameter .
SKUZO-G1650013
SubCategoryTest Instruments
Temperature Limits20 to 140?F
UnitsDual Scale: in W.C, FPM
Velocity Range2000 to 12,500 fpm
VentBlowout Plug
Weight5 (lb)
Window CompositionPlastic

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalco2010AV-DWYR53.4311Dwyer Instruments1.28553.43 @ 1
thumbzoomNewark82AK918364.9312DWYER64.93 @ 1
thumbzoomZoroG165001376.111107Dwyer1.876.11 @ 1
thumbzoomSolutions Direct2010AV78.051In StockDwyer Instruments5.078.05 @ 1
AmazonTPB007I9XHXI81.31In Stock2DWYER INSTRUMENTS81.3 @ 1
thumbzoomMegadepot2010AV83.361In StockDwyer83.36 @ 1
thumbzoomindustrialzone.com2010AV84.03In StockDwyer2.084.0 @ 3
thumbzoomcappusa.com32347384.281In StockDwyer84.28 @ 1
us.rs-online.com7033411684.621In StockDwyer Instruments84.62 @ 1
thumbzoomusmegastore.com2010AV86.281In StockDwyer86.28 @ 1
thumbzoomsimsupply.comZO-G165001390.151In StockDwyer90.15 @ 1
thumbzoomblackhawksupply.com2010AV90.331In StockDwyer90.33 @ 1
thumbzoomsustainablesupply.comC175730292.971In StockDwyer Instruments1.892.97 @ 1
alliedcontrols.com2010AV102.131In StockDwyer102.13 @ 1
thumbzoommidwestapplianceparts.com2010AV-DW-P108.991In StockDwyer108.99 @ 1
thumbzoomNational Supply Network497453118.111In StockDwyer118.11 @ 1
thumbzoomptacsolutions.com2010AV119.051In StockDwyer Instruments119.05 @ 1
thumbzoombscsource.com2010AV158.191In StockDwyer158.19 @ 1
