Fill-Rite FR311VB

B00CXG7ISQ

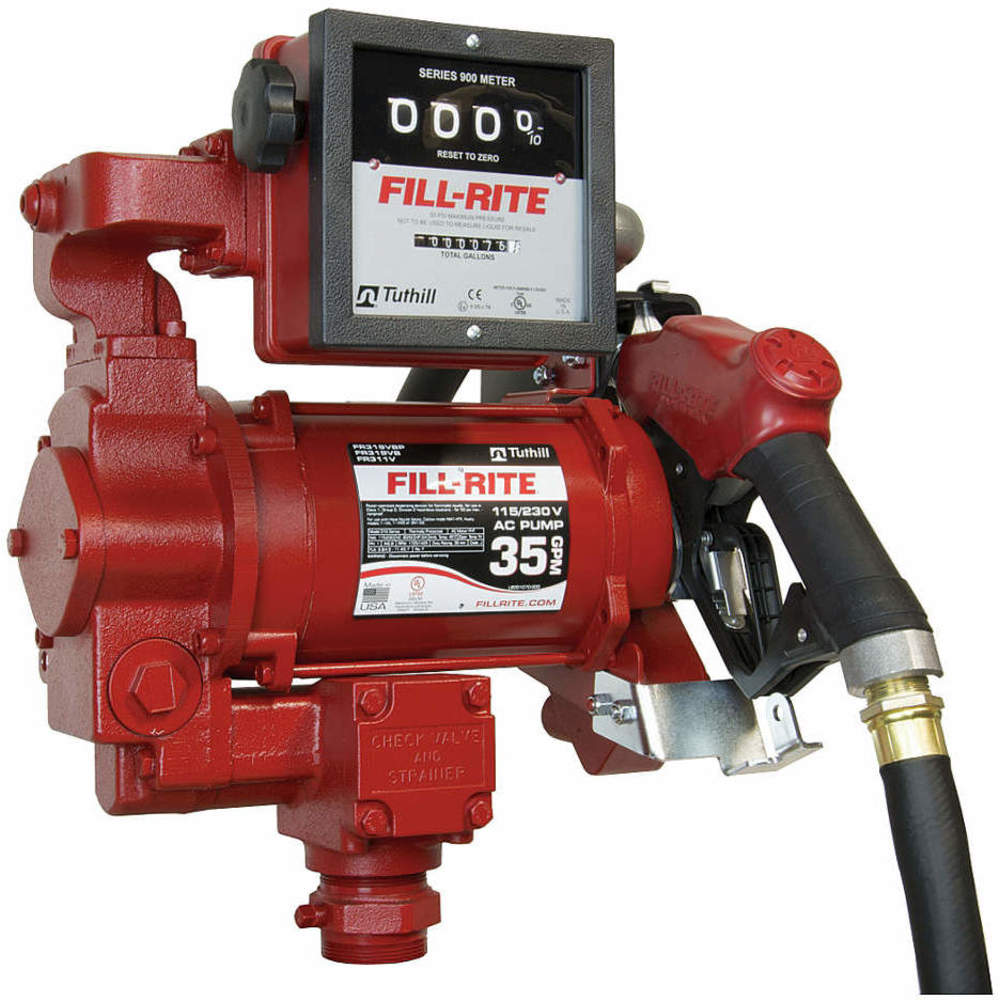

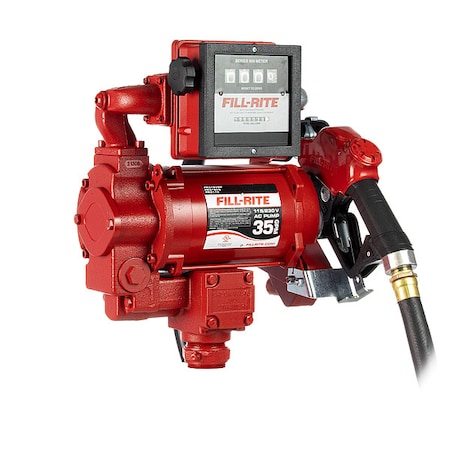

Fill-Rite FR311VB 115V/230V 35 GPM Fuel Transfer Pump w/Mechanical Meter Package (Gallons)

Fill-Rite FR311VB 115V/230V 35 GPM Fuel Transfer Pump w/Mechanical Meter Package (Gallons)zoom

Attributes

Key Value
Amps AC9.8/4.9/11.4/5.7
ApplicationFor Use With Above Grou.
Automatic/Manual NozzleAutomatic
Bearing TypeSealed Ball
BrandFill-Rite
Bypass ValveInternal
CompatibilityGasoline, Diesel, B20, .
Compatible FluidsB20, Diesel, E-15, Gaso.
Construction MaterialCast Iron
Country of Origin (subj.United States
Description:35 GPM, 115/230V AC 50/.
Duty Cycle30 min
FeaturesExplosion Proof Motor, .
Flow27 GPM
For Use WithDiesel
Frequency50/60 HZ
Gpm35
GPM30, 35
Horsepower3/4 HP, 3/4
Hose Dia.1 in
Hose Length18 ft
Hose Size1-Inch x 18-Foot
Housing MaterialCast Iron
HP3/4
Includes1 in x 18 ft Hose, 1 in.
Inlet SizeInlet Size, Bung : 2 in.
ItemFuel Transfer Pump
Lpm113
ManufacturerFill-Rite
Manufacturers Warranty .2 yr
MaterialCast Iron
Max. Viscosity50 SUS
MeteredYes
MFG Part #:FR311VB
ModelFR311VB
MPNFR311VB
Nozzle MaterialAluminum
Nozzle Size (in.)1
Nozzle TypeAutomatic
Outlet Size1 in
Overall Height19 1/4 in
Overall Length15 in
Overall Width17 in
Pressure Range0 psi to 26 psi
Product TypeFUEL TRANSFER, Simple p.
Pump DesignRotary Vane
Rotor and Rotary Vanes .Iron and Carbon
RPM1725/1425
Seal MaterialCarbon
Seal TypeO-ring
Self-PrimingYes
SeriesFR300 Series
SpecificationsDesigned for gasoline, .
StandardscUL, UL
Suction Tube LengthNo
Supplier:Fill-Rite
Threaded Bung Size (in.)2
Transfer Pump Applicati.Agriculture, Constructi.
UPC89404090602
UPC:0-89404-09060-2
Voltage115/230V AC
Weight91.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomagspray.comFR311VB774.241In StockFill-Rite774.24 @ 1
thumbzoomAmazonB00CXG7ISQ1438.991In StockFill-Rite1438.99 @ 1
thumbzoomFactory Authorized OutletFRT-FR311VB1438.991In StockFill-Rite1438.99 @ 1
thumbzoomHenrichFR311VB1489.151In StockFill-Rite1489.15 @ 1
MRO Stop9000775361740.371In StockFill-Rite1740.37 @ 1
thumbzoomZoroG67235431816.49119Fill-Rite98.81816.49 @ 1
kscdirect.comFIL FR311VB1871.471In StockFILL-RITE1871.47 @ 1
thumbzoomsustainablesupply.comC17010421999.861In StockFill-Rite98.81999.86 @ 1
thumbzoomandersonprocess.comFR311VB2025.451In Stock42Fill-Rite91.02025.45 @ 1
spatco.comFR311VB2186.351In StockFILL-RITE2186.35 @ 1
thumbzoomRaptor SuppliesAG2VAD2416.25820151In StockFILLRITE2416.2582015 @ 1
thumbzoomspraysmarter.comFR311VB3214.061In StockFill-Rite3214.06 @ 1
