Grayhill 78RB04ST

B0748MR5X2

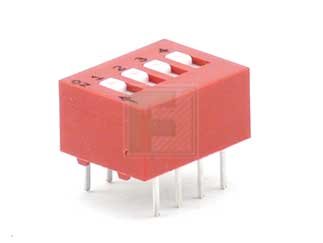

GRAYHILL 78RB04ST 78 Series Recessed Slide SPST 4 Position Through Hole DIP Switch - 21 item(s)

GRAYHILL 78RB04ST 78 Series Recessed Slide SPST 4 Position Through Hole DIP Switch - 21 item(s)zoom

Attributes

Key Value
ActuatorRecessed Slide
Actuator LevelFlush, Recessed
Actuator TypeSlide (Standard)
Alternate Part No.706-78RB04ST
Base Product Number78RB04
Body MaterialThermoplastic
BrandGrayhill
CategorySwitches
CircuitSPST
Contact FinishGold
Contact FormSPST
Contact MaterialCopper Alloy
Contact PlatingGold over Nickel
Current Rating150 mA
Current Rating (Amps)150mA
DescriptionSWITCH SLIDE DIP SPST 1.
Detailed DescriptionDip Switch SPST 4 Posit.
Digi-Key Part NumberGH7204-ND
Electrical Life2,000 Cycles
FeaturesTape Seal
Height Above Board0.265" (6.73mm)
Length0.480" (12.19mm)
ManufacturerGrayhill Inc., Grayhill
Manufacturer Part No.78RB04ST
Manufacturer Product Nu.78RB04ST
Manufacturer Standard L.10 Weeks
Mechanical Life2,000 Cycles
MfrGrayhill Inc.
MountingThrough Hole
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions4
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
PackageTube
Package Quantity1
Package/CaseDIP
PackagingTube
Part StatusActive
Pitch0.100" (2.54mm), Full
Product CategoryDIP Switches/SIP Switch.
Product StatusActive
Series78
Switch TypeDIP
Terminal Pitch2.5 mm
Termination StylePC Pin, Solder Pin
Voltage Rating30VDC
Voltage Rating DC30 V
WashableYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics68875581.01712In Stock2630Grayhill1.01712 @ 21
thumbzoomDigi-Key7262621.4616461Grayhill Inc.1.46 @ 1
WaldomGRAYHILL 78RB04ST2.022770GRAYHILL2.02 @ 27
Onlinecomponents.com78RB04ST2.151475GRAYHILL2.15 @ 1
Newark14N11732.612770GRAYHILL2.61 @ 27
us.rs-online.com711513733.09In Stock105Grayhill3.09 @ 21
thumbzoomswatee.com78RB04ST4.51370Grayhill4.5 @ 1
thumbzoomZoroG40581289286.71In StockGrayhill86.7 @ 1
