Hubbell 1222PWW

B00N3005CC

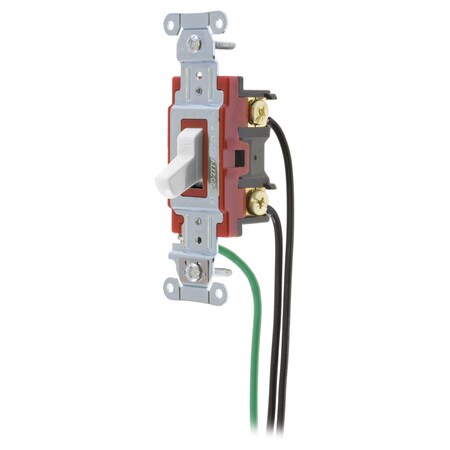

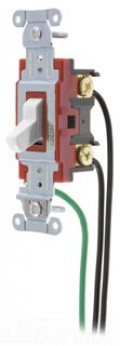

Hubbell 1222PWW Switch, Catalog #1222W with 8" Leads, White (Pack of 50)

Hubbell 1222PWW Switch, Catalog #1222W with 8" Leads, White (Pack of 50)zoom

Attributes

Key Value
Amperage20 A
Application8" #12 AWG THHN, 8 #12 .
ApprovalsCSA, UL
Carton Quantity50
ColorWhite
CommentsHeavy duty
ConnectivityPre-Wired
Country of Origin (subj.China
Current20 A
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric StrengthWithstands 1500V AC min.
Dielectric strengthWithstands 1500V AC min.
Dimensions4.18 in x 1.3 in x 1.83.
Face ColorRed
Family SeriesHubbell Switches
GradeIndustrial
Gross Weight0.2 lbs
GroundingAutomatic
Height1.83 in
HP @ 120 VAC1 hp
HP @ 240 VAC2 hp
IlluminatedNo
Industry Standard(s)UL Listed
Item Number1222PWW
Length4.18 in
LockingNo
ManufacturerHubbell
Manufacturer Part Number1222PWW
Net Weight0 lbs
Number Of PolesDouble pole
Number of polesDouble pole
Operating temperatureMaximum continuous 75C .
OperatorToggle
Operator ColorWhite
SeriesHeavy duty
StyleDouble pole
Switch ConfigurationDouble pole
Temp. Rise30?C maximum at rated c.
Temperature-40-167 ?F
Temperature Rise - Max.30C maximum at rated cu.
TypeToggle
Voltage120-277 VAC, 120 VAC, 2.
Voltage Rating120-277 VAC
Voltage rating descript.120-277 VAC
Width (in)1.3
Wire Range#14 to #10 AWG Solid an.
Wire size#14 AWG to #10 AWG
Wire Size#14 AWG to #10 AWG
WiringBack and Side Wired, Pr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply101365113.14350Hubbell Wiring13.14 @ 50
thumbzoomZoroG00048985713.19105046Hubbell Wiring Device-Kellems13.19 @ 50
thumbzoomGalco1222PWW-HBBL13.531050Hubbell0.213.53 @ 50
Newark94Y462020.431050HUBBELL WIRING DEVICES20.43 @ 50
thumbzoomgordonelectricsupply.com1222PWW634.5150HUBBELL634.5 @ 50
