Hubbell Incorporated HBL2431

B019UEDIOQ

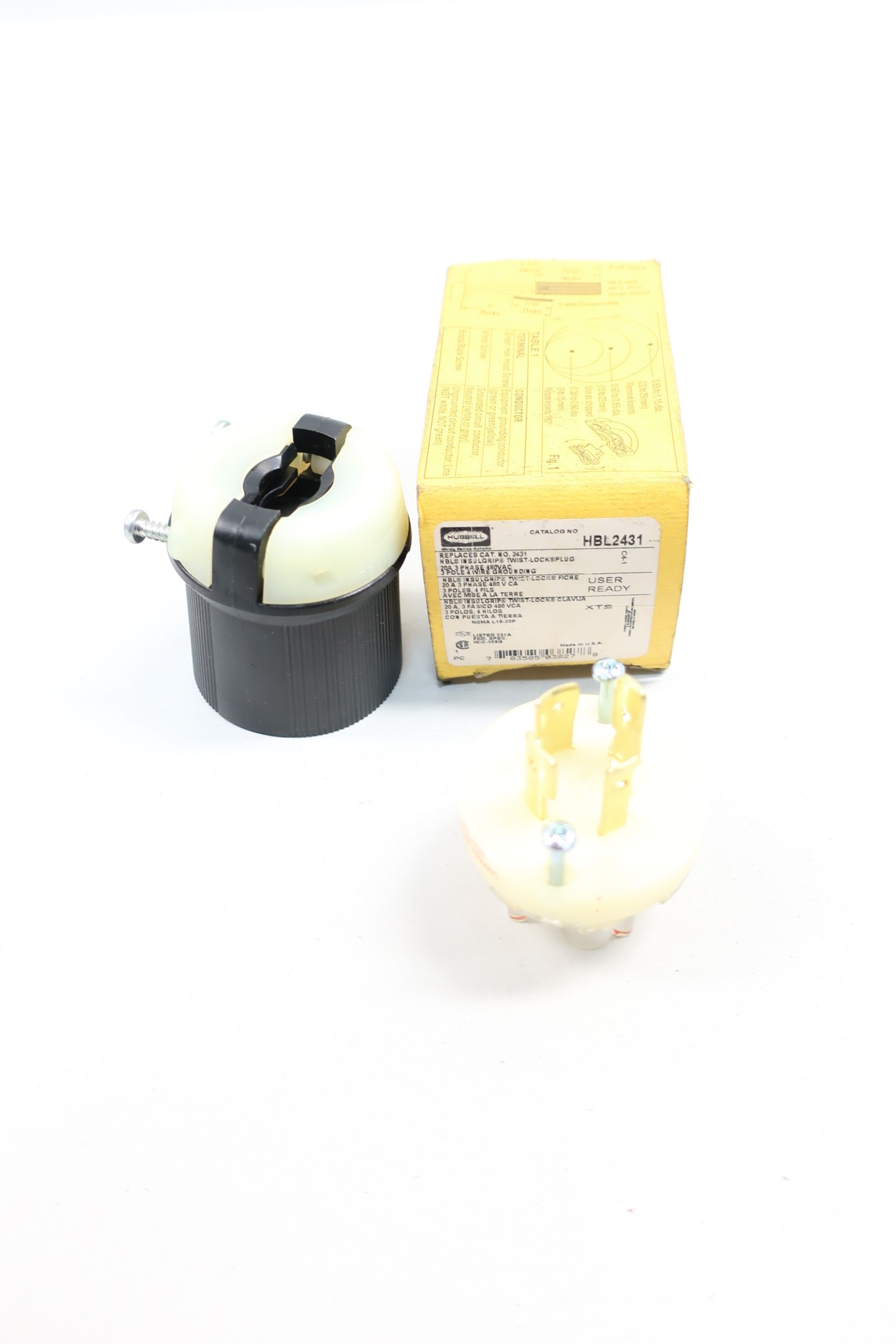

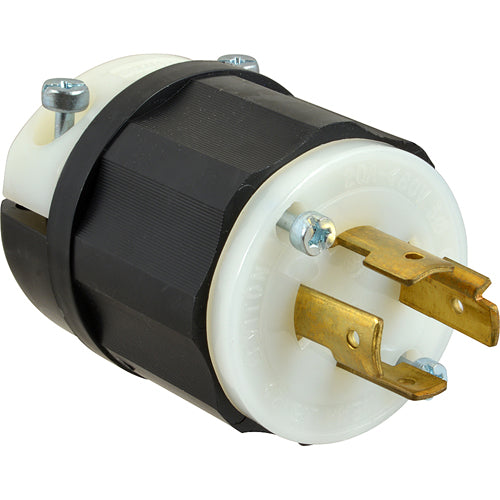

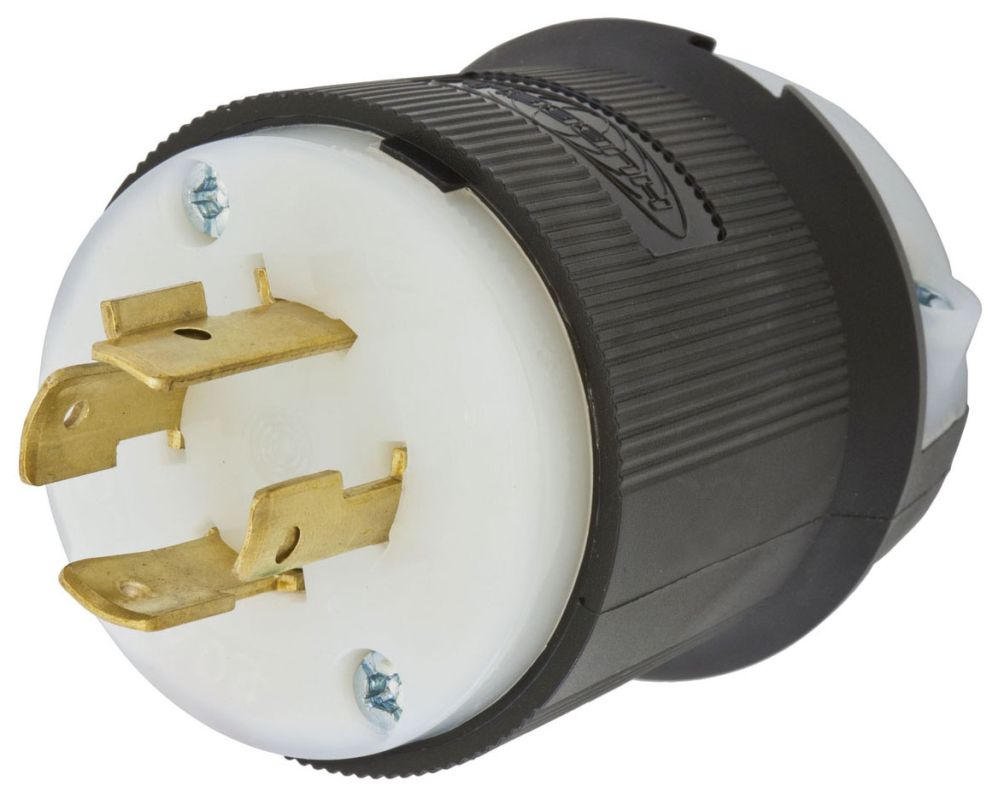

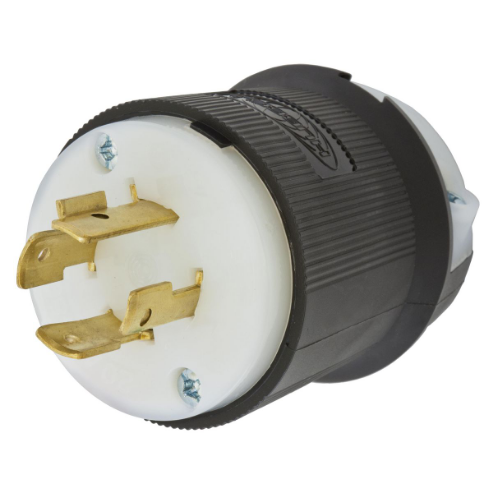

HUBBELL INCORPORATED Plug (20AMP) HBL2431

HUBBELL INCORPORATED Plug (20AMP) HBL2431zoom

Attributes

Key Value
Accommodation Terminal12 AWG
Agency ApprovalsUL ; CSA
Amperage20A, 20 A
amperage rating20
Amperage Rating20A, 20 A
Amps - Plugs and Recept.20
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Base Unit of MeasureEA
Blade MaterialBrass
Body Length2.33 in
Body TypeStraight
BOX SIZE8.000x12.600x9.000 (in)
BrandTwist-Lock Insulgrip, W.
Cable Range0.350 - 1.150 in, 0.350.
Carton1
Carton - Gross Weight p.10.400 lb.
Carton - Number of Sub .30
Carton - Pack Descripti.Carton
Carton - SCC-14 Next Lo.783585038278
Carton - Total Units30 EA
Case Weight10.500 lb.
Category DescriptionNema Rated Turnlok Plug.
Class CodeA08
ClassificationNema Rated Turnlok Plug.
ColorBlack/White, Black ; Wh.
Color FamilyMulti
connectionTerminal Screws
Connection OrientationStraight
ConnectivityPressure Terminal Screws
Contact MaterialBrass
Contact TypePin
Cord dia35 in-1.15 in
Cord Diameter0.35 to 1.15 in, 0.350-.
Cord Range0.350"-1.150" (9-29)
Cord Size0.350 in to 1.150 in
Cord TypeAll Listed Portables
Corrosion ResistantNo
Country of OriginPR, US - United States
Current / Amperage Rati.20 A
Current Rating20 A
DescriptionLKG Plug, 20A 3P 480V, .
Description - InvoiceLKG Plug, 20A 3P 480V, .
Diameter2.21 in;56.13 mm
Dielectric Rating2000 V (Min.)
Dielectric StrengthWithstands 2,000V minim.
Dimensions2.33 in x 2.33 in x 2.7.
Display SizeStandard Sized
Display TypeStandard Sized
Each - Pack DescriptionEach
Each - Width2.500 in
ECCNEAR99
environmental conditionsIndoor Dry unless prote.
Environmental ConditionsIndoor Dry unless prote.
EU RoHS IndicatorYes
extra long descriptionHWDK HBL2431 LKG PLUG, .
Face Diameter2.21 in
Family NameTwist-Lock? Family
Family SeriesHubbell Plugs & Recepta.
FeaturesLocking Devices, Twist-.
FinishNickel Plated (Terminal.
For EnvironmentDry
For LocationIndoor
For Maximum Cable Diame.1.15 in
For Minimum Cable Diame.0.35 in
Freight Class Code06168002
GradeIndustrial
Grade - Plugs and Recep.Industrial
Gross Weight0.335 lbs
GroundingGrounded
GTIN00783585038278
Harmonization Code8536694020
Height2.75 in., 2.75 in
Horsepower - Maximum5
Horsepower Rating5 hp
Housing ColourBlack, White
Housing MaterialBlack Nylon, Nylon
HP5
Image Actual Or Represe.A
Industry Standard(s)Certified to CSA C22.2 .
IP RatingIP20
Isolated GroundNo
ItemLocking Plug
Item - Plugs and Recept.Locking Plug
Item NumberHBL2431
Item Type20A Male Insulgrip? Plug
Length2.33 in, 2.33 in., 2.75.
Long DescriptionLocking Device Plug, 20.
Lowest Level UOMEach
ManufacturerHubbell
Manufacturer Part NumberHBL2431
Manufacturers Part Numb.HBL2431
MarketIndustrial
MaterialNylon (Housing/Cord Cla.
Material - Mounting Har.Cord Mounted
Maximum Operating Tempe.+75 ?C, 75 Degrees C
Maximum Wire Size8 AWG
Minimum Operating Tempe.-40 Degrees C, -40 ?C
Minimum Wire Size16 AWG
MountingCord Mounted
Mounting TypeCord Mounted, Cable
MSDS FlagNo
NEMA ConfigurationL16-20P
NEMA Plug ConfigurationL16-20P
NEMA Plug Configuration.L16-20P
Nema RatingL16-20P
NEMA RatingL16-20P
nema ratingNEMA L16-20P
NEMA TypeL16-20P
Net Weight0.3 lbs
No. of Poles3
No. of Wires4
Number of Blades4
Number of Contacts4
Number of Poles3, 3 ; 1 E, 3-Pole
Number Of Poles3-Pole
Number Of Wires4-Wire
Number of Wires4-Wire, 4
Operating TemperatureMaximum continuous 75?C.
Outside Diameter2.33 in
Overall Length2.33 in
Package30
package quantity1 CT;30 PK
pallet quantity2880
PerformanceElectrical - Current In.
Phase3, Three, Three Phase
PolarizedYes
Poles3
Primary TypeTwist Lock
Product HeaderTwist-Lock Plug
Product TypeLocking Device Plug
Rated Voltage480V AC
Replaced Catalog Number2431;2431CN;HBL2431CN
Resistance PropertiesChemical Resistant, Che.
SeriesInsulgrip Series
Short DescriptionLocking Device Plug, 20.
ShroudedNo
Shrouded / Non-ShroudedNon-Shrouded
Size2.33 in x 2.33 in x 2.7.
Special FeaturesStandard Product, Locki.
StandardCertified to CSA C22.2 .
standardCertified to CSA C22.2 .
StandardsFED SPEC UL/CSA, UL Lis.
Standards - RoHS Compli.CM
Standards MetUL Listed;CSA Certified.
sub brandTwist-Lock Devices
Sub Class CodeA08A110
Terminal Clamp MaterialSteel
Terminal Screw MaterialBrass
Terminal TypeScrew;Clamp
TerminationScrew
TypePlugs, Locking Plug
UL 94 Flammability Rati.HB
UNSPSC39121402, 39121402 - El.
UPC783585038278
UPC Code783585038278
Voltage3 Phase 480V AC
Voltage - Plugs and Rec.480V AC
Voltage Rating480 V ac, 480 V, 480V A.
Voltage Rating Descript.3 Phase 480 VAC
WatertightNo
Wattage9,600
Weight0.25 lb., 0.25 lb, 0.25.
Weight per each0.25
Width2.33 in, 2.500 in, 2.33.
Wire Connection TypeScrew Terminals
Wire Size#16 to #8 AWG (Stranded.
Wiring StyleStandard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNRI IndustrialD74890127.481In StockHUBBELL27.48 @ 1
thumbzoomZoroG142951331.6511396Hubbell0.231.65 @ 1
thumbzoomKelly HayesHBL243131.661201Hubbell Wiring Device-Kellems31.66 @ 1
thumbzoomsustainablesupply.comC120812832.591In StockHubbell0.232.59 @ 1
Onlinecomponents.comHBL243134.411HUBBELL34.4 @ 1
thumbzoomComponent Electronics438M-4B38.4616Hubbell Inc38.46 @ 1
thumbzoomCarlton Bates Company7835850382738.671In StockHUBBELL38.67 @ 1
standardelectricsupply.com9710541.011209Hubbell41.01 @ 1
thumbzoomMRO Supply102082742.7111Hubbell Wiring42.71 @ 1
thumbzoomgordonelectricsupply.comHBL243143.361In StockHUBBELL43.36 @ 1
AmazonTPB00RLRJTUW45.311In Stock3Hubbell Wiring Systems45.31 @ 1
thumbzoomturtle.comHUB HBL243145.761In StockHubbell45.76 @ 1
thumbzoomRadwellHBL243146.671108HUBBELL KELLEMS46.67 @ 1
thumbzoomGalcoHBL2431-HBBL47.091In StockHubbell0.33547.09 @ 1
thumbzoomglobalcommercialparts.comHBL_HBL243149.061In StockHUBBELL49.06 @ 1
steinerelectric.com2630049.461In StockHubbell Wiring Device-Kellems49.46 @ 1
thumbzoomElliott ElectricHBL243149.881In StockWiring Device-Kellems0.2549.88 @ 1
Graybar8812631453.4352110Hubbell Wiring Device - Kellems53.4352 @ 1
VericalHBL243154.86125Hubbell Wiring Device-Kellems54.86 @ 1
thumbzoommayerelectric.comHUBHBL243155.96112HUBBELL WIRING DEVICES0.2555.96 @ 1
thumbzoombscsource.comHBL243158.691In StockHubbell Wiring Device-Kellems58.69 @ 1
thumbzoomUnited Electric2109762.3212WIRING DEVICE-KELLEMS62.32 @ 1
grainger.caHBLHBL243163.043509161In StockHUBBELL WIRING DEVICE-KELLEMS0.263.04350916 @ 1
us.rs-online.com7011641966.441106Hubbell Wiring Device-Kellems0.2566.44 @ 1
thumbzoomNational Supply Network5403512667.321In StockHubbell Wiring Device-Kellems67.32 @ 1
thumbzoomNewark52F972968.77137HUBBELL WIRING DEVICES68.77 @ 1
kirbyrisk.com48457875.84140Hubbell75.84 @ 1
thumbzoomRaptor SuppliesAE7QZD84.08058751In StockHUBBELL WIRING DEVICE-KELLEMS84.0805875 @ 1
