Leeson 113019.00

B00EPKZXZI

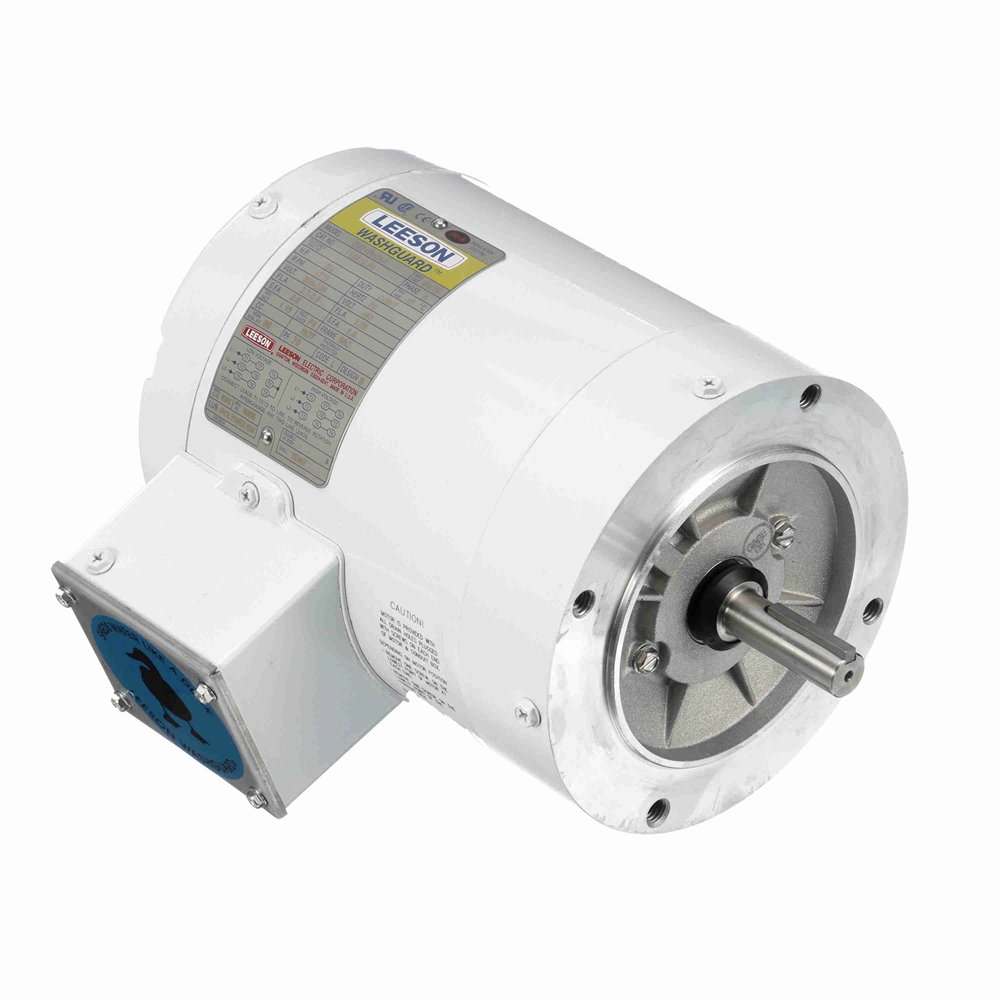

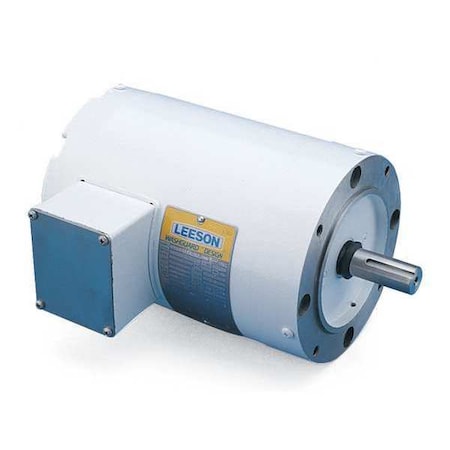

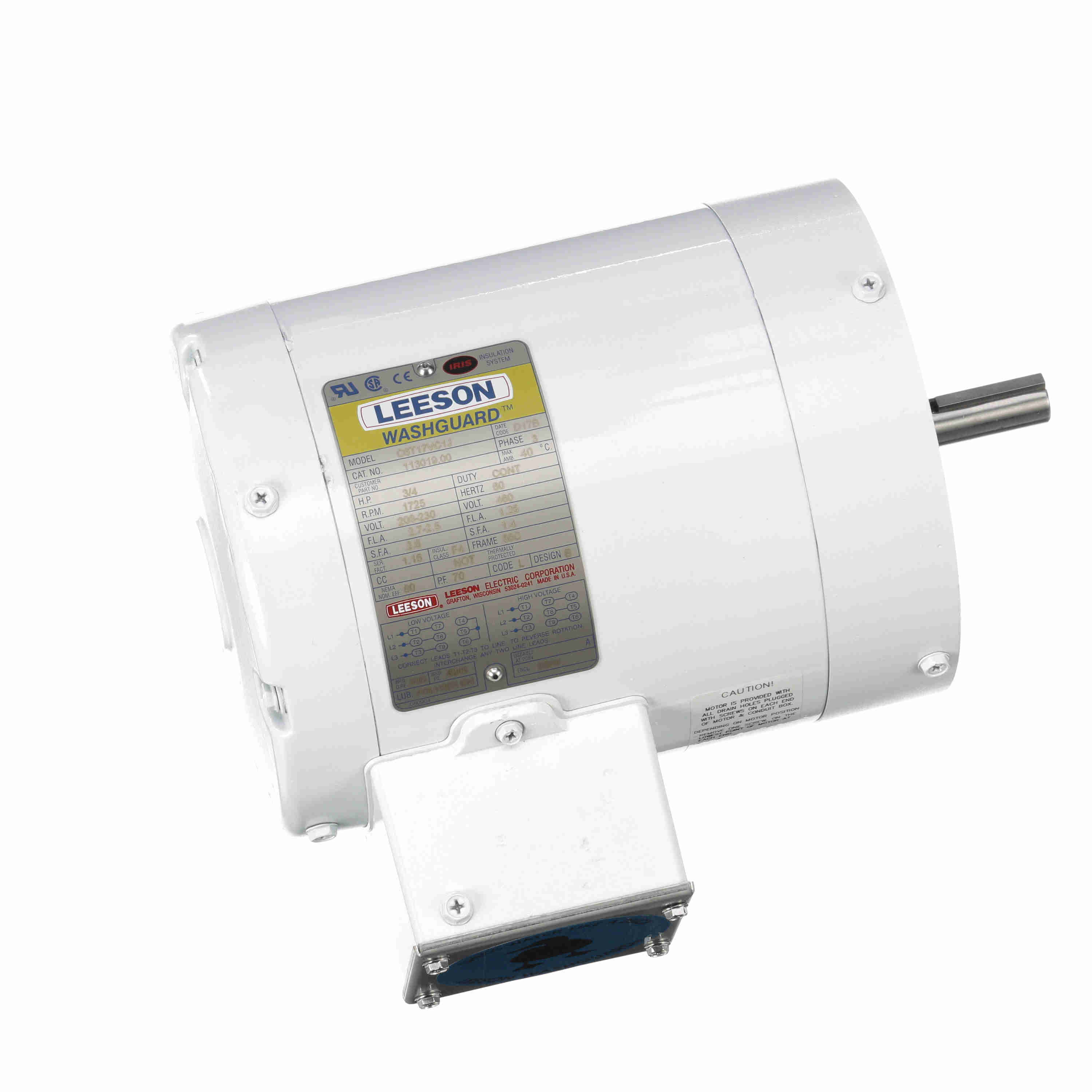

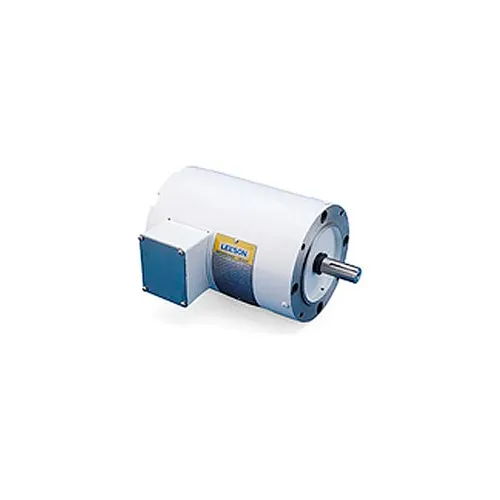

Leeson 113019.00 White Epoxy Painted Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 113019.00 White Epoxy Painted Washguard Motor, 3 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage2.7-2.5/1.25 Amps
Amperage Rating2.5 A
Amps2.7-2.5/1.3
Application TypeFan & Blower Motors
ApprovalsCSA, UL
Bearing Type10.56, Ball
BearingsBall
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
Catalog No.113019.00
CategoryElectric Motor
Class/GroupC6T17VC1
CompositionSteel
ConstructionRolled Steel
CT Speed Range1000:1
Current Stock9
Description:..3/4HP..1725RPM.56.TEN.
Dimensions10.56 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency80, 80.0%
Efficiency %80 %
EnclosureTENV, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight28.00
Family SeriesLeeson Motors, Washguar.
FL Amps2.7-2.5/1.25
FL Efficiency80
Frame56C
Frame MaterialRolled Steel
Frame RemarksWashdown, FOOTLESS
Frequency60
Frequency Rating50/60 Hz
Full Load Amps1.20
Gross Weight0 lbs
Hertz60
Horsepower3/4 HP
HP3/4, 0.75
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number113019.00
KW0.56
Lead TimeExpected to ship in 1-2.
Length Less Shaft8 5/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113019.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
Maximum Ambient Tempera.40? C
MFG Part #:113019.00
Model NumberC6T17VC1
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Frame MaterialSteel
Motor Service Factor1.15
Motor Shell Length5.50"
Motor Thermal ProtectionNone
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round
Mpn113019.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight28 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.56 ", 10.56", 10 9/1.
Part Number113019.00
Phase3, Three
Power3/4 HP
Product SeriesWashguard
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15, 1.149
Shaft5/8" dia. x 1-7/8" w/ 3.
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size5/8 in Dia
Ship Weight31 lbs.
Shpg.35 lbs.
Size8-5/8" x 8-7/8" x 6-7/8"
SKUZO-G4608935
Special FeaturesC Face Less Base, 80% F.
Speed1725 RPM, 1800 rpm
Speed (RPM)1725
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720011645
UPC:691720011645
Voltage208-230/460 AC, 208-230.
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113019366.01In StockLEESON366.0 @ 1
AmazonSCB0773R86KM392.931In StockLeeson Electric392.93 @ 1
thumbzoomcshincorporated.com113019.00488.231In StockLeeson31.0488.23 @ 1
AmazonTPB01M5C7656496.421In Stock5Leeson / Regal Beloit496.42 @ 1
thumbzoomMRO Supply2525647503.641In StockLeeson503.64 @ 1
thumbzoomemotorpro.com113019.00536.561In StockLeeson31.0536.56 @ 1
thumbzoomZoroG4608935577.99126Leeson30.4577.99 @ 1
thumbzoomDealers Electric113019.00579.631In StockLeeson31.0579.63 @ 1
thumbzoomGlobal IndustrialWBB228203589.01In StockLeeson589.0 @ 1
thumbzoomsurpluscenter.com10-2881611.251In StockLeeson35.0611.25 @ 1
thumbzoommotorsandcontrol.comLE-113019.00619.921134Leeson Electric28.0619.92 @ 1
us.rs-online.com73396877624.781In StockLeeson624.78 @ 1
thumbzoomGalco113019.00-LEES624.781In StockLeeson28.0624.78 @ 1
thumbzoomAutomation Direct113019.00649.011Leeson31.0649.0 @ 1
kscdirect.comLEE 113019.00650.541In StockLEESON ELECTRIC CORPORATION650.54 @ 1
thumbzoomsimsupply.comZO-G4608935654.4919Leeson654.49 @ 1
thumbzoomPurvis113019LEE693.161In StockLEESON693.16 @ 1
thumbzoomWalker Industrial113019-00742.621In Stock17Leeson742.62 @ 1
cbtcompany.com113019.00749.921In StockLeeson Electric749.92 @ 1
thumbzoomRaptor SuppliesAJ2QJA1027.30276351In StockLEESON1027.3027635 @ 1
thumbzoompumpproducts.com113019.001064.321In StockLeeson1064.32 @ 1
