Leviton 8300-PLO

B0050T2HP2

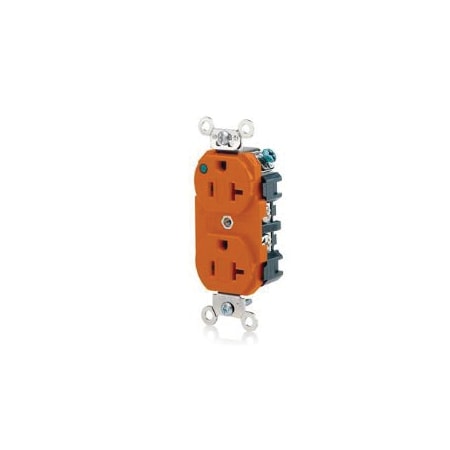

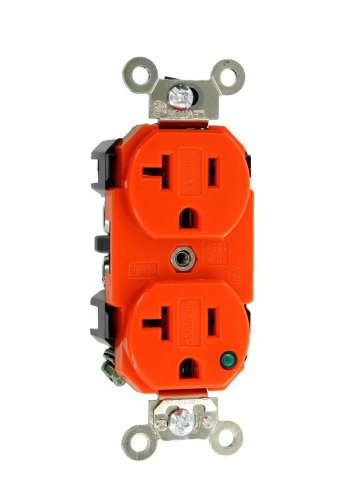

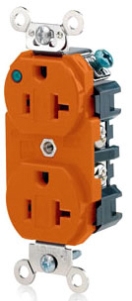

Leviton 8300-PLO 20-Amp 125-Volt NEMA 5-20R, 2P, 3W, Power Indication, Extra Heavy Duty Hospital Grade Duplex Receptacle, Orange

Leviton 8300-PLO 20-Amp 125-Volt NEMA 5-20R, 2P, 3W, Power Indication, Extra Heavy Duty Hospital Grade Duplex Receptacle, Orangezoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847751189UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-PLOStock Code
Amperage Rating20 A
Amperage Rating:20 A
Amps20
CategoryElectrical Receptacles
ColorOrange
Color:Orange
Connection:Back and Side Wired
Country of OriginMX
Country of Origin (subj.Mexico
Description:OR REC DUP HG PILOT LIT.
Dielectric Strength:2000 (Min.) V
Dimensions4.06 in H x 1.53 in W x.
EnclosureNEMA WD-1/WD-6
Environmental Condition.Flammability (Rated V-2.
For additional options .Notes
GradeHospital
Horsepower1 hp
LevitonBrand
ManufacturerLeviton Manufacturing, .
MaterialThermoplastic, Nylon, T.
Material:Thermoplastic
MFG Part #:8300-PLO
Mounting:Wall Box
NEMA Configuration5-20R, WD-6
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
OrangeColor
Phase1
Phase:1
Size:46 H x 1.53 W x 1.11 D .
Standard Duplex OutletsFamily
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TypeExtra Heavy Duty Self G.
Type:Straight Blade;Duplex O.
UL / CSA ListedUL Listed
UNSPSC39121406
UPC078477511893
UPC:078477511893
Voltage125
Voltage Rating125 VAC
Voltage Rating:125 V
Wire Size:14-10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com8300-PLO20.961In Stock755LEVITON20.96 @ 1
kscdirect.comLEV 8300-PLO22.061In StockLEVITON22.06 @ 1
Dale-Electric8300-PLO30.481In StockLeviton Manufacturing30.48 @ 1
thumbzoomZoroG384261530.861In Stock47Leviton30.86 @ 1
thumbzoomRadwell8300-PLO36.050In StockLEVITON36.0 @ 50
thumbzoomLighting Supply8300-PLO40.941In StockLeviton40.94 @ 1
thumbzoomPlatt.com087735546.691In StockLeviton46.69 @ 1
us.rs-online.com7237733649.6350In StockLeviton49.63 @ 50
steinerelectric.com86007350.671In StockLeviton50.67 @ 1
thumbzoombulbspro.com8300-PLO62.41In StockLeviton62.4 @ 1
