MEAN WELL

B07HHKJRMH

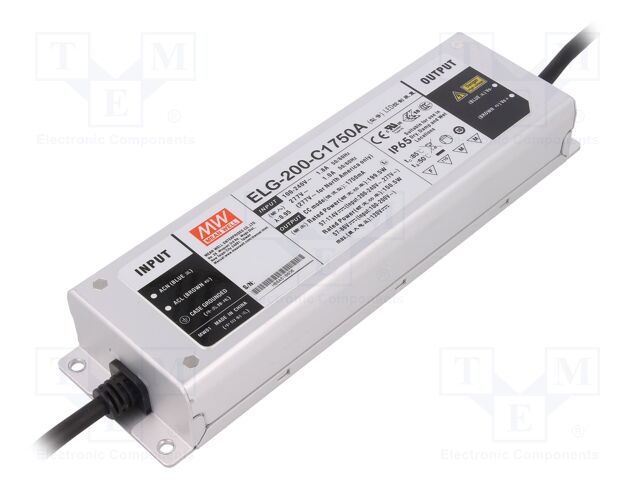

Mean Well ELG-200-C1750A LED Power Supplies, 199.5W57-114V 1750mA for Input 200VAC ~ 305VAC, CC IP65 Io Adjustable w/Pot, Const C Mode LED Driver, Input: 100~305VAC 142~431VDC.

Mean Well ELG-200-C1750A LED Power Supplies, 199.5W57-114V 1750mA for Input 200VAC ~ 305VAC, CC IP65 Io Adjustable w/Pot, Const C Mode LED Driver, Input: 100~305VAC 142~431VDC.zoom

Attributes

Key Value
AC inrush currentCold start, 65 at 230VAC
ApplicationLED
Approval AgencyCB, CCC, CE, cURus, EAC.
Base Product NumberELG-200
Body dimensions244x71x37.5mm
CategoryPower Supplies - Extern.
Current - Output (Max)1.75A
Dimension (LxWxH)244x71x37.5
Dimming-
Efficiency92%
Electrical connection300mm wires L N
EMC standardsEN55015, EN61000-3-2 cl.
FeaturesOTP, OVP, SCP
IP ratingIP65
Kind of power supplyLED
ManufacturerMEAN WELL
Manufacturer seriesELG C
MfrMEAN WELL USA Inc.
Mounting TypeChassis Mount
Number of outputs1
Number of Outputs1
Operating modesconstant current
Operating temperature-40...85?C
Operating Temperature-40?C ~ 85?C
Output current875...1750mA
Output voltage57...114V DC
PackageBox
Packing12pcs / 15.2kg
Power0.2kW
Power (Watts)200 W
Product StatusActive
Protectionanti-overvoltage OVP,
RatingsIP65
SeriesELG-200-C (200W)
Setup, rise, hold up ti.500ms
Size / Dimension8.66" L x 2.80" W x 1.4.
Termination StyleWire Leads
TopologyAC DC Converter
Typeconstant current
Type of power supplyswitched-mode
Voltage - Input (Max)305VAC
Voltage - Input (Min)100VAC
Voltage - Isolation3.75 kV
Voltage - Output57 ~ 114V
Working temperature-40~+80?C (refer to out.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
ArrowELG-200-C1750A42.1416Mean Well42.14 @ 1
thumbzoompowersupplymall.comELG-200-C1750A49.881In StockMean Well49.88 @ 1
Mouser709-ELG200-C1750A53.4917Mean Well53.49 @ 1
thumbzoomJameco225233260.241In StockMEAN WELL60.24 @ 1
Digi-Key945176061.7112In StockMEAN WELL USA Inc.61.71 @ 12
thumbzoomTMEELG-200-C1750A62.7513MEAN WELL62.75 @ 1
electricautomationnetwork.comELG-200-C1750A67.211In StockMEANWELL67.21 @ 1
