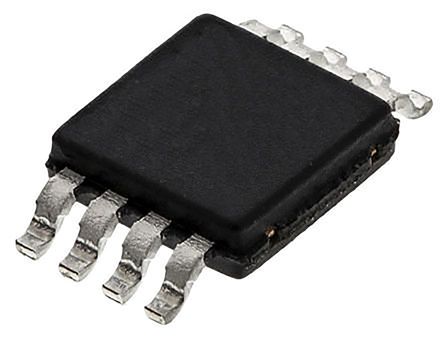

MICROCHIP TECHNOLOGY 25LC320A-I/MS

mpn25LC320A-I/MS
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

25LC320A-I/MS

Brand: MICROCHIP TECHNOLOGY
PartNumber: 25LC320A-I/MS
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
Access Time	50 ns
Address Hold Time	200 ns
Address Setup Time	100 ns
Base Product Number	25LC320
Brand	Microchip
Category	Integrated Circuits (IC.
Clock Frequency	10 MHz
Current, Input, Leakage	1 uA
Current, Output, Leakage	?1 ?A
Data Retention	200yr, 200 Years
Density	32 kbit
Description	IC EEPROM 32KBIT SPI 10.
Detailed Description	EEPROM Memory IC 32Kbit.
Digi-Key Part Number	25LC320A-I/MS-ND
DigiKey Programmable	Not Verified
Dimensions	3 x 3 x 0.95mm, 3.00 x .
ESD Voltage	>4 kV
Fall Time	2 ?s
Height	0.037" (0.95mm)
Input Capacitance	7 pF
Interface	SPI Bus
Interface Type	SPI
Length	0.118 in
Manufacturer	Microchip Technology
Manufacturer Product Nu.	25LC320A-I/MS
Manufacturer Standard L.	4 Weeks
Maximum Operating Suppl.	5.5 V
Maximum Operating Tempe.	+85 ?C
Maximum Random Access T.	160ns
Memory Capacity	32 KB
Memory Format	EEPROM
Memory Interface	SPI
Memory Organization	4K x 8
Memory Size	32Kbit
Memory Type	Serial EEPROM, Non-Vola.
Mfr	Microchip Technology
Minimum Operating Suppl.	2.5 V
Minimum Operating Tempe.	-40 ?C
Mounting Type	Surface Mount
Number of Bits per Word	8 bit, Number of Bits p.
Number of Pins	8
Number of Words	4096
Operating Current	5 ; 5 mA
Operating Temperature	-40?C ~ 85?C (TA), -40 .
Operating Voltage Range	2.5 to 5.5 V
Organisation	4096 x 8 bit
Organization	4096 x 8
Output Capacitance	7 pF
Package	Tube
Package / Case	8-TSSOP, 8-MSOP (0.118".
Package Type	MSOP
Pin Count	8
Product Header	32K SPI Bus Serial EEPR.
Product Status	Active
Rise Time	2
Series	25LC320A Series, -
Stock	Stock
Supplier Device Package	8-MSOP
Supply Voltage	2.5-5.5 V
Technology	EEPROM
Voltage - Supply	2.5V ~ 5.5V
Voltage, Input, High Le.	3.5 V
Voltage, Input, Low Lev.	0.5 V
Voltage, Output, High L.	2 V
Voltage, Output, Low Le.	0.4 V
Width	0 in
Write Cycle Time - Word.	5ms

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
RS Delivers	826-1887	0.6516	100	184	Microchip	0.6516 @ 100
Digi-Key	1228694	0.78	1	500	Microchip Technology	0.78 @ 1
Newark	35M0847	0.811	1	1103	MICROCHIP	0.811 @ 1
TME	25LC320A-I/MS	0.93	3	107	MICROCHIP TECHNOLOGY	0.93 @ 3
us.rs-online.com	70046059	1.14	944	107	Microchip Technology Inc.	1.14 @ 944
